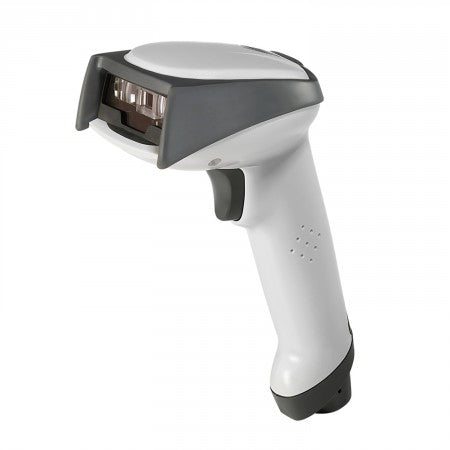

Honeywell 30205-0066E 3800R 630nm Handheld Barcode Scanner

Overview Hand Held Products exclusive imaging technology provides breakthrough performance in the new 3800r linear imager. The 3800r is the most powerful linear imager ever produced. It excels at read range, reading poor quality bar codes, and is extremely durable. These features will make your data acquisition successful, and lower your total cost of ownership. Many of today’s applications benefi t from greater reading range. With so many of today’s packages too large for easy lifting, operators reach and stretch to read bar codes that are out of range. The 3800r’s class-leading 24 inch (61cm) read range on 13 mil bar codes can greatly reduce these serious and costly application problems.   Specifications Model Number:  30205-0066E Brand:  Honeywell Alt Part Number(s):  3800R Product Type:  Barcode Scanner   Technical Description Brand:  Honeywell Model:  30205-0066E Series:  3800R Illumination:  630 NM Visible Red LED Receiving Device:  3648 element linear imager Reading Distance:  From 1 in. (2.5 cm) to 24 in. (61 cm) on medium density codes Reading Width:  7.5 mil code: 7 in. (18 cm) from nose, 6.6 in. (17 cm) wide 13 mil code:  16.5 in. (42 cm) from nose, 10 in. (25 cm) wide Resolution:  5 mil. at 5 in. (13 cm) distance Skew Angle:  +65o Pitch Angle:  +65o Horizontal Velocity:  2 in. (5 cm) per second Minimum Symbol Contrast:  20% Scan Rate:  Up to 270 scans per second Decode Rate:  270 decodes per second  Length:  5.3 in. (13.5 cm)  Height  6.2 in. (15.7 cm)  Width:  3.2 in. (8.1 cm)   Features Superior Read Range - Imaging technology now extends the read range out to 24 inches (61 cm) on the bar codes used in retail applications. Fast and Aggressive Decode - Even on poorly printed or damaged codes, the 270 scans per second scan rate and software digitizer quickly processes the data and transmits it to your application. Durable - Built to last, there are no moving parts to wear out. Full impact resistant bumpers and a 5 year warranty make the 3800r one of the toughest scanners on the market. Reads Emerging Codes that will be Part of Tomorrow’s Solutions – supports the EAN·UCC system, including GTIN, EAN/UCC-14, and RSS. Connectivity – supports all common interfaces: keyboard wedge, TTL RS-232, IBM retail, USB, wand emulation, HHLC, and True RS-232.   *Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
