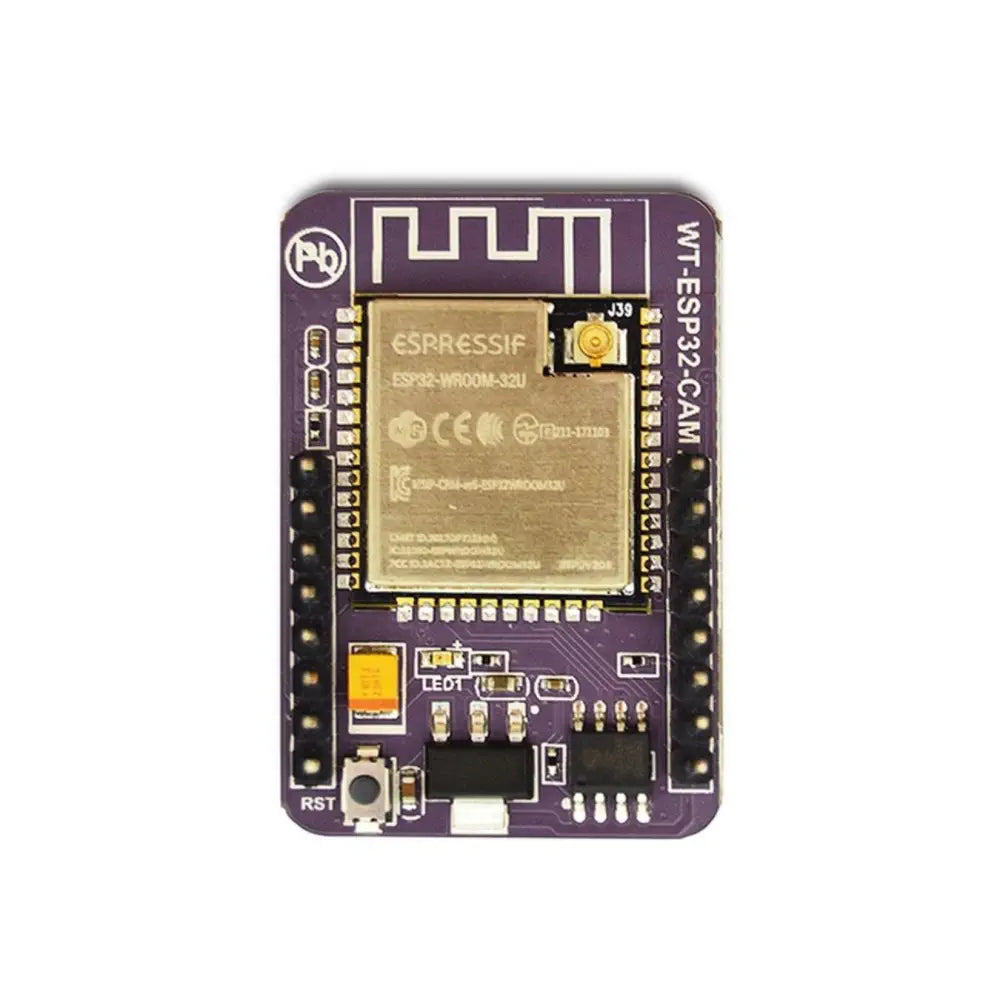

WT-ESP32-CAM / WiFi + Bluetooth Camera Module Development Board

Description WT-ESP32-CAM / WiFi + Bluetooth Camera Module Development Board Offers a small-size camera development board Onboard 32Mbit flash memory Support UART/SPI/I2C/PWM/ADC/DAC and other interfaces Operating Voltage: 4.75 - 5.25 V Clock: 40 MHz crystal The WT-ESP32-CAM / WiFi + Bluetooth Camera Module Development Board is a small-size camera development board based on ESP32. WT-ESP-CAM is highly integrated with ultra-small 802.11 b/g/n WI-FI+BT/BLE SOC module, the main frequency is up to 240 MHz. It offers a computational processing capacity of up to 600DMIPS, TF card expansion, and supports OV2640 and OV7670 cameras. Built-in flash, it is a very competitive small-size camera module in the industry supports multiple image formats JPEG (only OV2640 supports) / BMP / GRAYSCALE Output, WI-FI picture upload speed is fast; it supports UART/SPI/I2C/PWM/ADC/DAC and other interfaces, allowing developers to fully use their imagination for secondary development. View more What's Included 1x WT-ESP32-CAM / WiFi + Bluetooth Camera Module Development Board Dimensions Size 40.5 x 27 mm (L x W) Links PDF File WT-ESP32-CAM / WiFi + Bluetooth Camera Module Development Board - Datasheet Specifications MCU Processor: Xtensa 32-bit LX6 MCU Chip: ESP32-D0WD Camera: OV2640 (factory default) / OV7670 Antenna: PCB antenna MCU SRAM: 520 KB Module Interface: UART, SPI, I2C, PWM, ADC, DAC, I/O, TF card expansion Flash Memory: 32 Mbit Clock: 40 MHz crystal Operating Voltage: 4.75 - 5.25 V Operating Temperature: -20 ~ 70 °C
