Waveshare PoE Ethernet / USB HUB HAT for Raspberry Pi Zero
www.robotshop.com

Waveshare PoE Ethernet / USB HUB HAT for Raspberry Pi Zero

$32.99
{{option.name}}: {{selected_options[option.position]}}
{{value_obj.value}}
Store Logo

RobotShop USA

View Store

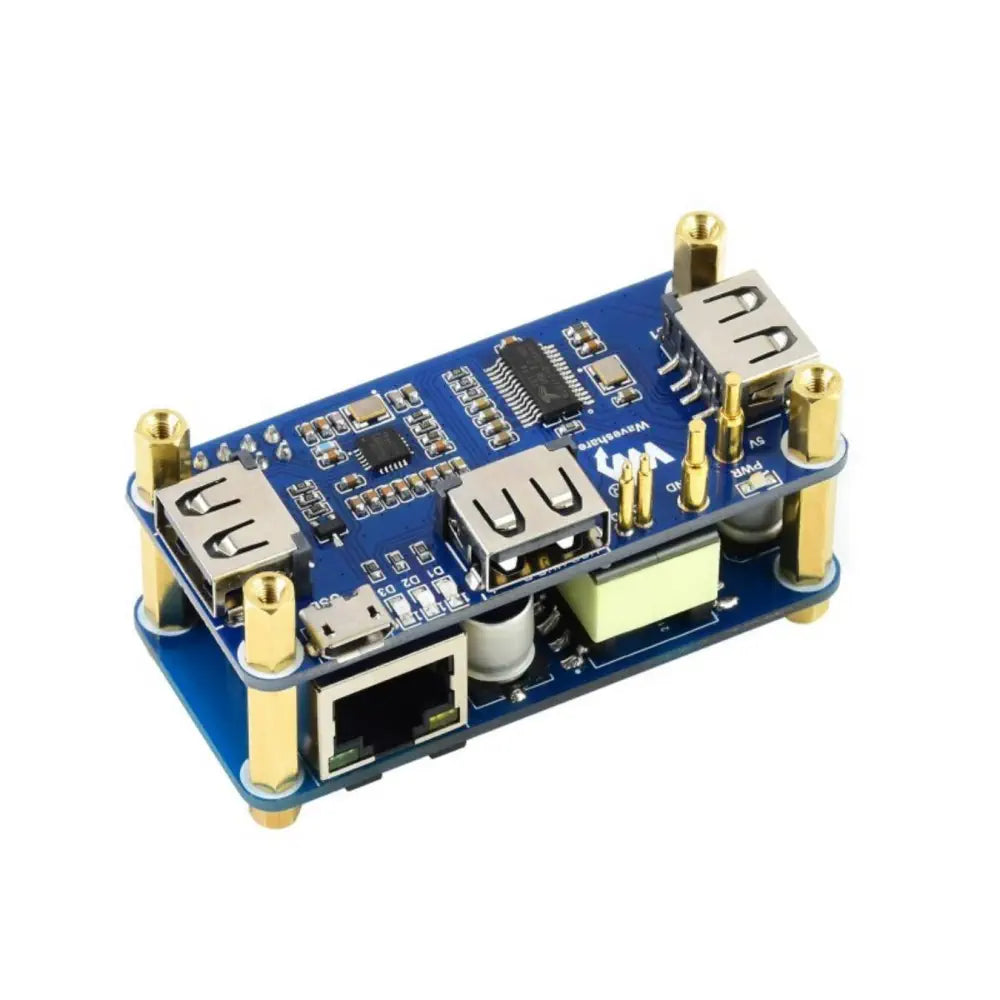

Description Waveshare PoE Ethernet / USB HUB HAT for Raspberry Pi Zero Designed for Raspberry Pi Zero (Not Included) Comes with 10M / 100M auto-negotiation RJ45 port 802.3af-compliant Fully isolated SMPS (Switch Mode Power Supply) Compatible with Raspberry Pi Zero Series The Waveshare PoE Ethernet / USB HUB HAT for Raspberry Pi Zero is a PoE (Power over Ethernet) USB HUB HAT designed for Raspberry Pi Zero. By using this small HAT and some proper 802.3af-compliant power sourcing equipment, it is possible to provide both network connection and power supply for your Raspberry Pi in only one Ethernet cable, along with 3x extended USB ports. Note: The Raspberry Pi Zero, LCD display, and MicroSD card is NOT included. View more What's Included 1 x PoE/ETH/USB HUB HAT 1 x USB HUB Board 1 x Screws pack 1 x Screwdriver Dimensions Size 23.10 x 65.00 mm (L x W) Links PDF File Waveshare PoE Ethernet / USB HUB HAT for Raspberry Pi Zero - Schematics Specifications POE Power Input: 37 ~ 57 V DC in Power Output: 5 V 2.5 A DC out Network Standard: IEEE 802.3af-compliant PoE Weight: 0.063 kg
