Sherline CNC-Ready Mill Upgrade Kit for 2000, Axis Mill or Lathe Crosslide Motor Mount (")
www.robotshop.com

Sherline CNC-Ready Mill Upgrade Kit for 2000, Axis Mill or Lathe Crosslide Motor Mount (")

$98.19
{{option.name}}: {{selected_options[option.position]}}
{{value_obj.value}}
Store Logo

RobotShop USA

View Store

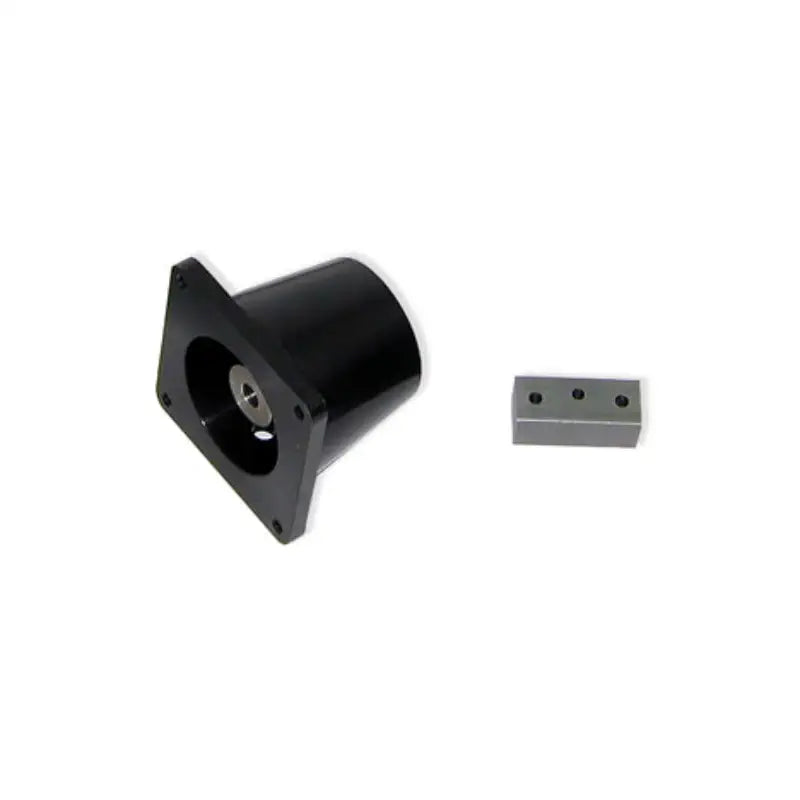

Description Sherline CNC-Ready Mill Upgrade Kit for 2000, Axis Mill or Lathe Crosslide Motor Mount (") Enables CNC conversion for Sherline mills Includes 3 stepper motor mounts Facilitates precise motor mount installation Offers comprehensive instructions Prepares for stepper motor attachment The Sherline CNC-Ready Mill Upgrade Kit for 2000, Axis Mill or Lathe Crosslide Motor Mount (") enables the conversion of any existing Sherline vertical mill to a CNC-ready machine. This transformation involves the precise installation of stepper motor mounts, which requires drilling and tapping several holes. The kit provides drill blocks that are affixed to the appropriate table or bed using an existing hole, serving as a guide for drilling two additional holes. Once these holes are tapped, the new mount is securely installed. Additionally, the mill column necessitates the installation of a new leadscrew. This upgrade kit is designed to prepare the machine for the attachment of stepper motors, allowing for CNC control through a user-supplied system. Comprehensive instructions are included to facilitate the conversion process, ensuring that users can effectively complete the installation. Note: Ensure all safety precautions are followed during installation to prevent injury or damage. View more What's Included 1x Sherline CNC-Ready Mill Upgrade Kit for 2000, Axis Mill or Lathe Crosslide Motor Mount (") 3x Stepper Motor Mount 1x CNC Z-axis Screw 2x CNC-RH Coupling Preload Nut 1x CNC-LH Coupling Preload Nut 6x Stepper Motor Preload Bearing 3x CNC Coupling 1x CNC Template, Bed Bushing 1x CNC Template, Slide Bushing Screws for Motor Mount Attachment Specifications CNC-ready indicates the machine is prepared for stepper motor installation and CNC control via a user-supplied system The complete upgrade kit for the Mill includes: 3 stepper motor mounts CNC Z-axis screw 2 CNC-RH coupling preload nuts CNC-LH coupling preload nut 6 stepper motor preload bearings 3 CNC couplings CNC template, bed bushing CNC template, slide bushing Screws for motor mount attachment
