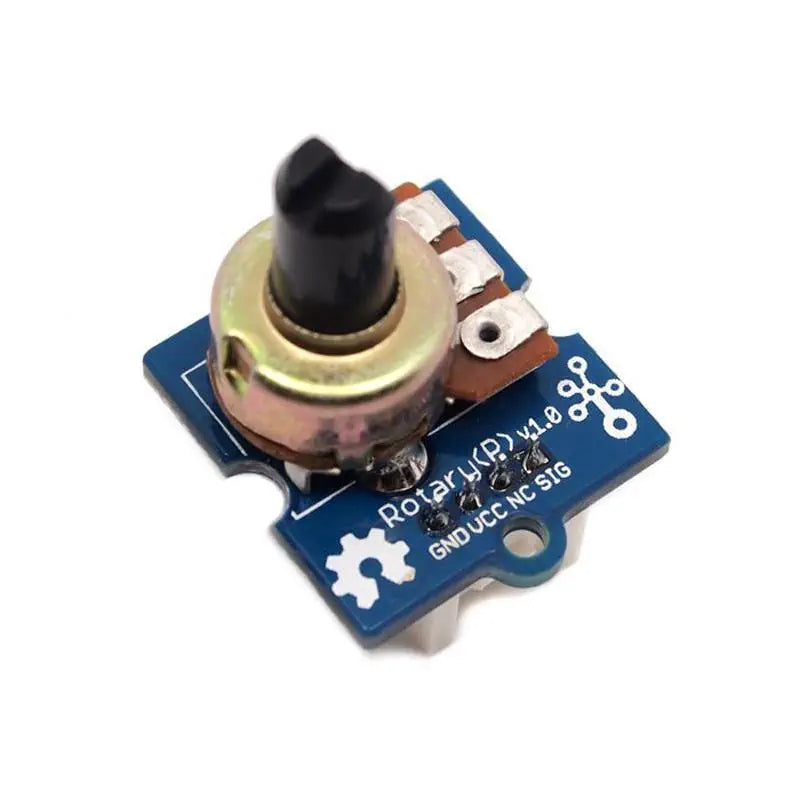

Seeedstudio Grove Rotary Angle Sensor (P)

Description Seeedstudio Grove Rotary Angle Sensor (P) Provides an angular range of 300 degrees with a linear change in value Produces analog output between 0 and Vcc Compatible with both Arduino and Raspberry Pi (Not included) Voltage: 5 V Rotary Angle: 0° - 300° The Seeedstudio Grove Rotary Angle Sensor (P) is compatible with both Arduino and Raspberry Pi. This potentiometer twig produces analog output between 0 and Vcc (5V DC with Seeeduino) on its D1 connector. The D2 connector is not used. The angular range is 300 degrees with a linear change in value. The resistance value is 10k ohms, perfect for Arduino use. This may also be known as a rotary angle sensor(panel mount version). Application Grove-based analog Input Arduino project Raspberry PI project Maker education View more What's Included 1x Seeedstudio Grove Rotary Angle Sensor (P) Dimensions Size 19 x 19 x 20 mm Links PDF File Seeedstudio Grove Rotary Angle Sensor (P) - Schematics Website Seeedstudio Grove Rotary Angle Sensor (P) - Wiki Specifications Voltage: 5 V Rotary Angle: 0° - 300° Battery: Not included Weight: 10 g
