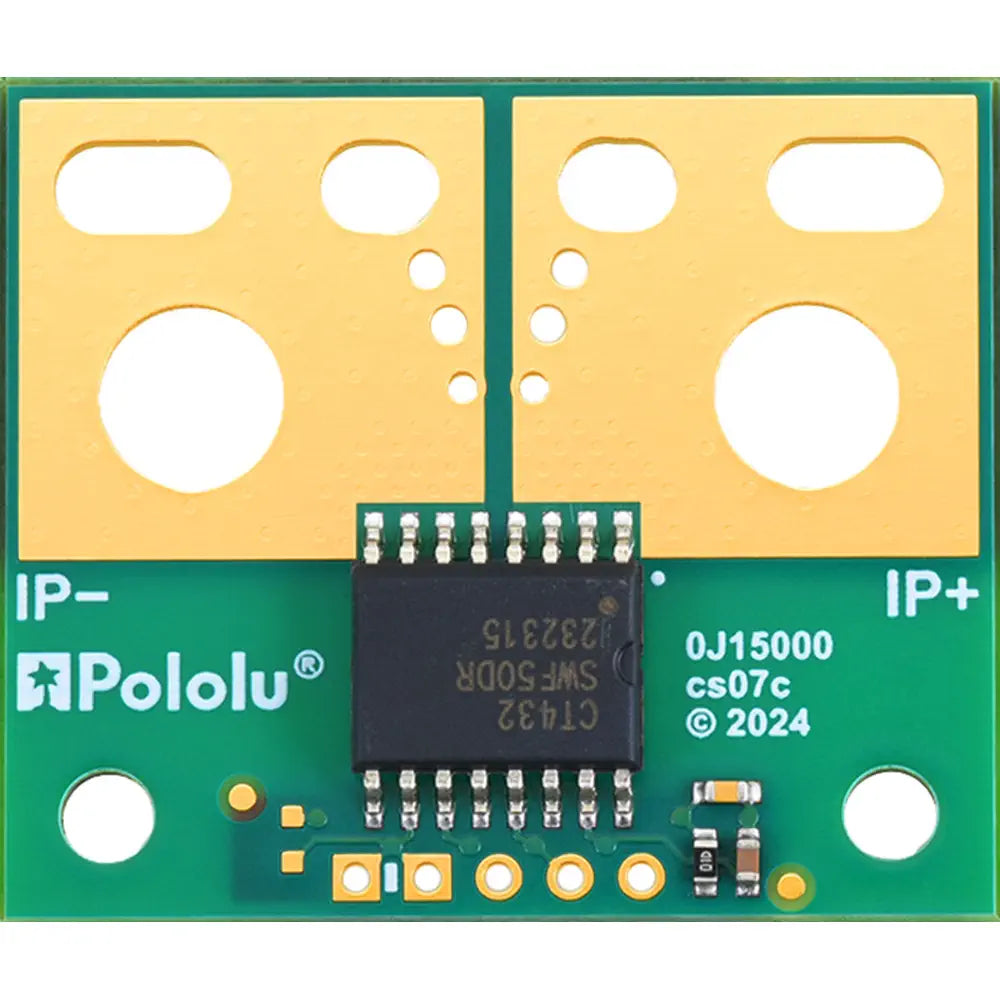

Pololu CT432-HSWF50DR TMR Current Sensor Large Carrier 0A to 50A, 5V

Description Pololu CT432-HSWF50DR TMR Current Sensor Large Carrier 0A to 50A, 5V Offers 1 MHz bandwidth with low noise Ensures immunity from noisy supplies Features Allegro's XtremeSense™ TMR technology Operates from -40°C to 125°C Includes optional overcurrent fault output The Pololu CT432-HSWF50DR TMR Current Sensor Large Carrier 0A to 50A, 5V is a sophisticated current sensor designed for high dV/dt applications, offering a 1 MHz bandwidth with low noise. Utilizing Allegro’s XtremeSense™ TMR technology, it provides high accuracy and electrically isolated current measurements. The sensor is suitable for applications requiring electrical isolation and can be inserted anywhere along the current path. It features a non-ratiometric output, ensuring immunity from noisy supplies, and includes an optional overcurrent fault output. The sensor operates within a temperature range of -40°C to 125°C. Note: This product is intended for use below 30 V and exceeding temperature or current limits can cause permanent damage. View more What's Included 1x Pololu CT432-HSWF50DR TMR Current Sensor Large Carrier 0A to 50A, 5V Dimensions 1.2 x 1.4 inches Links PDF File Pololu CT432-HSWF50DR TMR Current Sensor Large Carrier 0A to 50A, 5V - Datasheet Specifications Unidirectional current range: 0 to 50 A Supply voltage: 4.75 V to 5 V Sensitivity: 80 mV/A Zero point: 0.5 V PCB layers: 6 High-bandwidth 1 MHz analog output Typical response time: 300 ns Output is not ratiometric Optional overcurrent fault output Operating temperature range: -40°C to 125°C Primary current path resistance: 1 mΩ Compatible with 0.1″-pitch header pins
