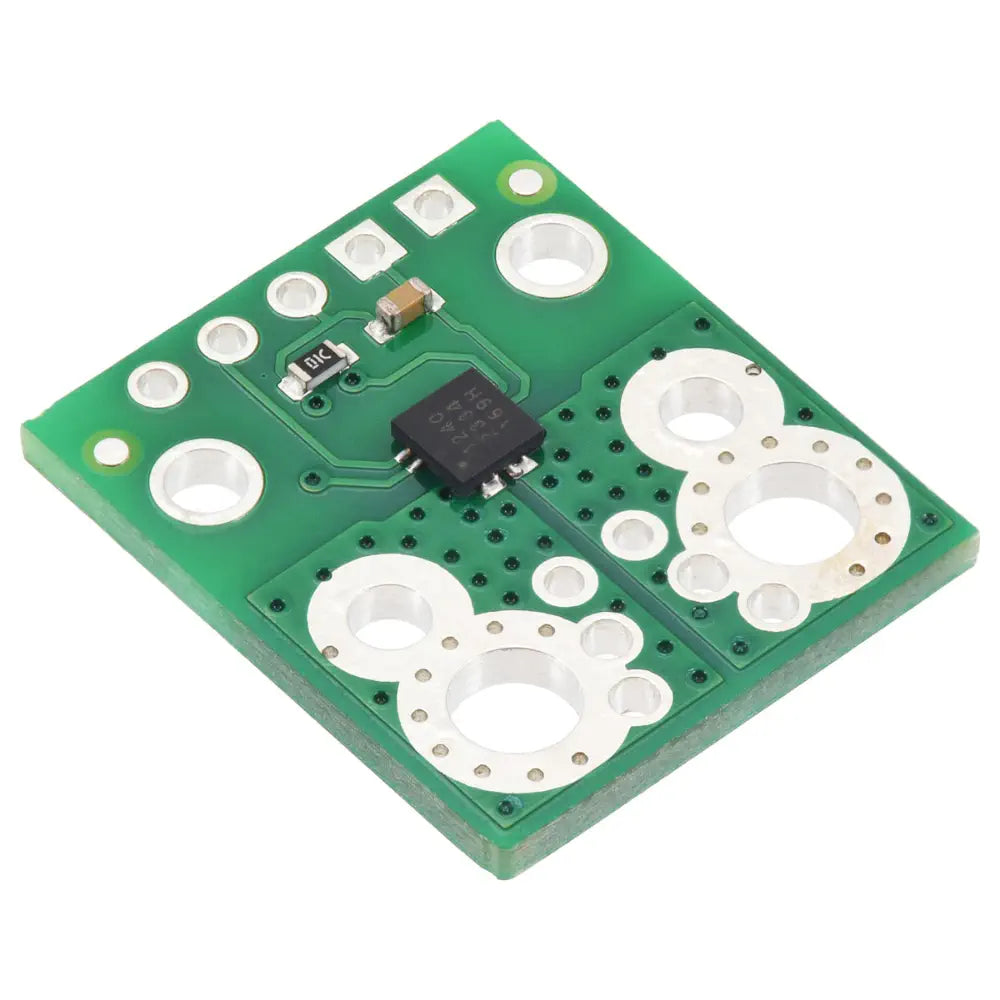

Pololu ACS71240KEXBLT-010B5 Current Sensor Carrier -10A to +10A, 5V

Description Pololu ACS71240KEXBLT-010B5 Current Sensor Carrier -10A to +10A, 5V Offers bidirectional current sensing from -10A to +10A Features high bandwidth of 120 kHz for rapid response Includes integrated digital temperature compensation Ensures electrically isolated current path Compatible with standard solderless breadboards The Pololu ACS71240KEXBLT-010B5 Current Sensor Carrier -10A to +10A, 5V is a Hall effect-based, electrically isolated current sensor designed for bidirectional input currents ranging from -10A to +10A. It features a low-resistance current path and a high bandwidth of 120 kHz, ensuring rapid response times. The sensor outputs an analog voltage proportional to AC or DC currents, with integrated digital temperature compensation for accuracy across a wide temperature range. It is compatible with standard solderless breadboards and offers multiple connection options for ease of integration. Note: This product is intended for use below 30 V. Exceeding temperature or current limits can cause permanent damage to the sensor. View more What's Included 1x Pololu ACS71240KEXBLT-010B5 Current Sensor Carrier -10A to +10A, 5V Dimensions 0.7 x 0.8 inches Links PDF File Pololu ACS71240KEXBLT-010B5 Current Sensor Carrier -10A to +10A, 5V - Datasheet Specifications Hall effect-based sensor with electrically isolated current path Differential Hall sensing rejects common-mode fields Conductive path internal resistance is typically 0.6 mΩ High-bandwidth 120 kHz analog output voltage proportional to AC or DC currents Response time is less than 5 µs Output is not ratiometric Overcurrent fault output with 1.5 µs response time Integrated digital temperature compensation circuitry Automotive-grade operating temperature range from -40°C to 125°C
