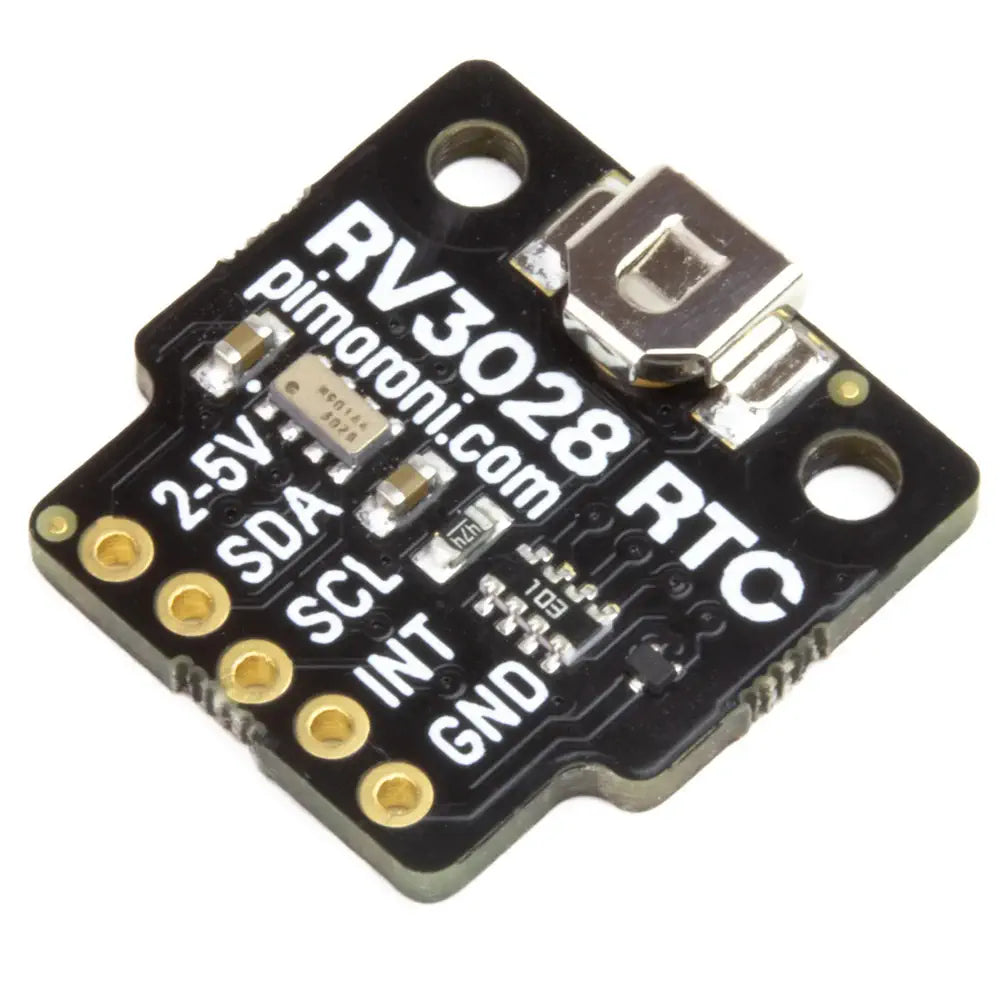

Pimoroni RV3028 Real-Time Clock (RTC) Breakout

Description RV3028 Real-Time Clock (RTC) Breakout by Pimoroni Includes a male and female header Provides reverse polarity protection Ultra-low-power consumption Compatible with Arduino Interface: I2C (address 0x52) The Pimoroni RV3028 Real-Time Clock (RTC) Breakout offers an ultra-low-power ( ~100 nA), highly accurate real-time clock breakout. The RV3028 RTC breakout is perfect for adding timekeeping to your project and, thanks to the tiny onboard battery, it'll keep time when your device is powered off. Like all the best timepieces, it's Swiss-made The RV3028 RTC is factory-calibrated and is quoted to drift by just ±1 second per million seconds at 25 degrees. This will vary slightly depending on a number of factors. In testing, it has performed better than ±2 seconds per million seconds. For comparison, that's up to five times more accurate than your average digital watch. View more What's Included 1x RV3028 RTC Breakout 1x 5 Male Header 1x 5 Female Right-Angle Header Dimensions Size 19 x 19 x 4 mm (L x W x H) Links PDF File Pimoroni RV3028 Real-Time Clock (RTC) Breakout - Manual Specifications RV3028 Real-Time Clock (RTC): Yes Ultra-low-power: Yes Silver oxide battery: Included 3.3V or 5V compatible Interface: I2C (address 0x52) Reverse polarity protection: Yes Raspberry Pi-compatible pinout (pins 1, 3, 5, 7, 9) Compatible with Arduino: Yes
