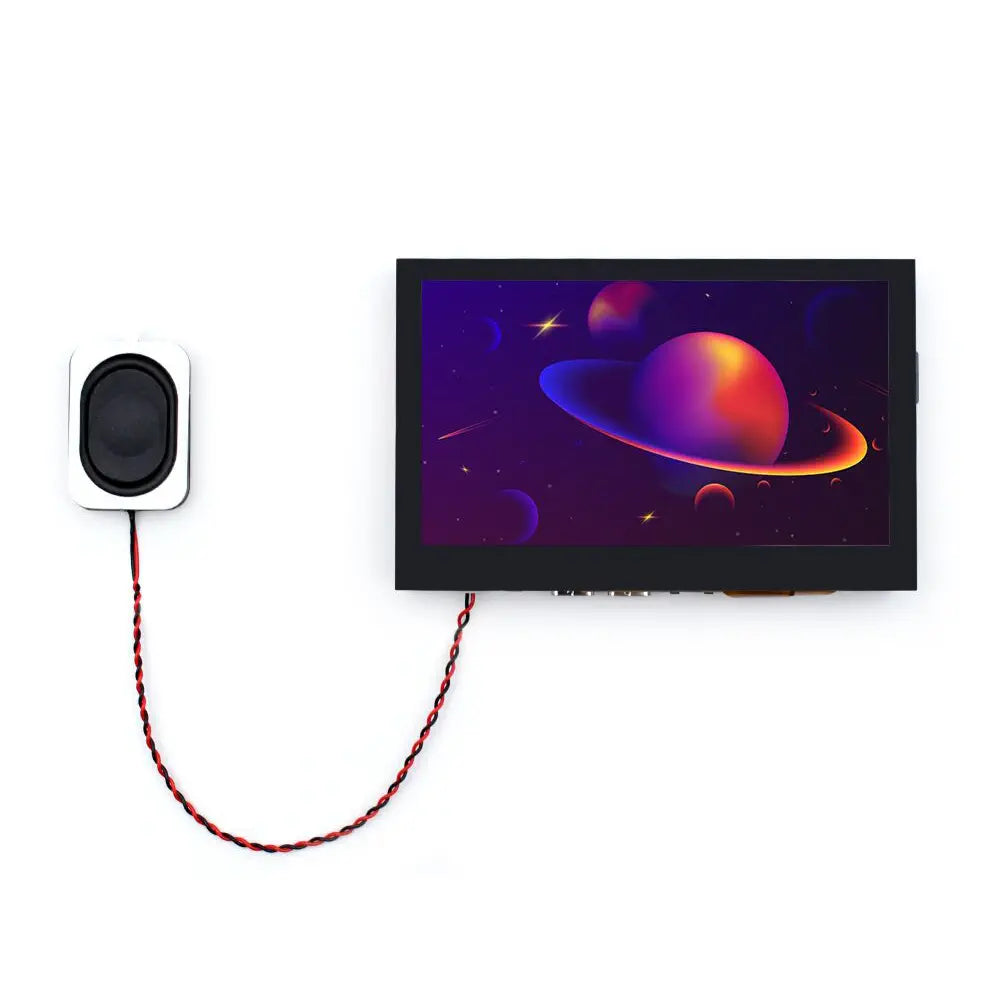

MaTouch ESP32-S3 4.3-inch IPS Display w/ Capacitive Touch (WiFi & Bluetooth)
Description MaTouch ESP32-S3 4.3-inch IPS Display w/ Capacitive Touch Vibrant 4.3-inch IPS touch display Robust ESP32-S3 with WiFi & BT 5.0 Dual USB Type-C connectivity Expandable with I2C & GPIO ports Durable -40 to +85 °C operation The MaTouch ESP32-S3 4.3-inch IPS Display w/ Capacitive Touch (WiFi & Bluetooth) is a sophisticated display and controller suitable for a variety of Internet of Things (IoT) applications. It features a high-brightness 4.3-inch IPS display that offers a stunning visual experience with its 800 x 480 resolution. The display is equipped with a five-point capacitive touch panel, enhancing user interaction and making it ideal for home automation projects. The integration of an SD card and Real-Time Clock (RTC) allows for the recording and playback of data, adding to its versatility. The device is powered by an ESP32-S3 chip, which includes WiFi and Bluetooth 5.0 connectivity, 16 MB of flash memory, and 8 MB PSRAM, ensuring ample capacity for more complex tasks. The ESP32-S3s capabilities are further extended with the inclusion of dual USB Type-C ports, a flash button, and a reset button. Additionally, the unit offers interfaces for connecting a variety of sensors, including I2C and GPIO, through its Mabee/Grove connectors, facilitating the rapid development of personalized prototype projects. Please note that the Type-C Power Delivery is not supported, and the operational temperature range for the device is from -40 to +85 °C. View more What's Included 1x MaTouch ESP32-S3 4.3-inch IPS Display w/ Capacitive Touch (WiFi & Bluetooth) Dimensions Screen: 4.3 inch Links PDF-File MaTouch ESP32-S3 4.3-inch IPS Display w/ Capacitive Touch (WiFi & Bluetooth) - Datasheet Websites MaTouch ESP32-S3 4.3-inch IPS Display w/ Capacitive Touch (WiFi & Bluetooth) - Wiki MaTouch ESP32-S3 4.3-inch IPS Display w/ Capacitive Touch (WiFi & Bluetooth) - GitHub Multimedia docReady(function() {$('button[aria-controls=unique-tab-5]').one('click',function() {$("#iframe-video-1").html('');$("#iframe-video-2").html('');$("#iframe-video-3").html('');})}); Specifications Controller: ESP32-S3-WROOM-1, PCB Antenna, 16MB Flash, 8MB PSRAM, ESP32-S3-WROOM-1-N16R8 Wireless: Wifi & Bluetooth 5.0 LCD: High Brightness IPS FPS: >30 Resolution: 800 x 480 LCD interface: RGB 565 Touch Panel: 5 Points Touch, Capacitive Touch Panel Driver: GT911 USB: Dual USB Type-C (one for USB-to-UART and one for native USB-to-UART Chip: CP2104) Power Supply: USB Type-C 5.0V (4.0V~5.25V) Button: Flash button and reset button Mabee interface: 1I2C; 1GPIO MicroSD: Yes Arduino support: Yes Type-C Power Delivery: Not Supported Operation temperature: -40 to +85 °C
