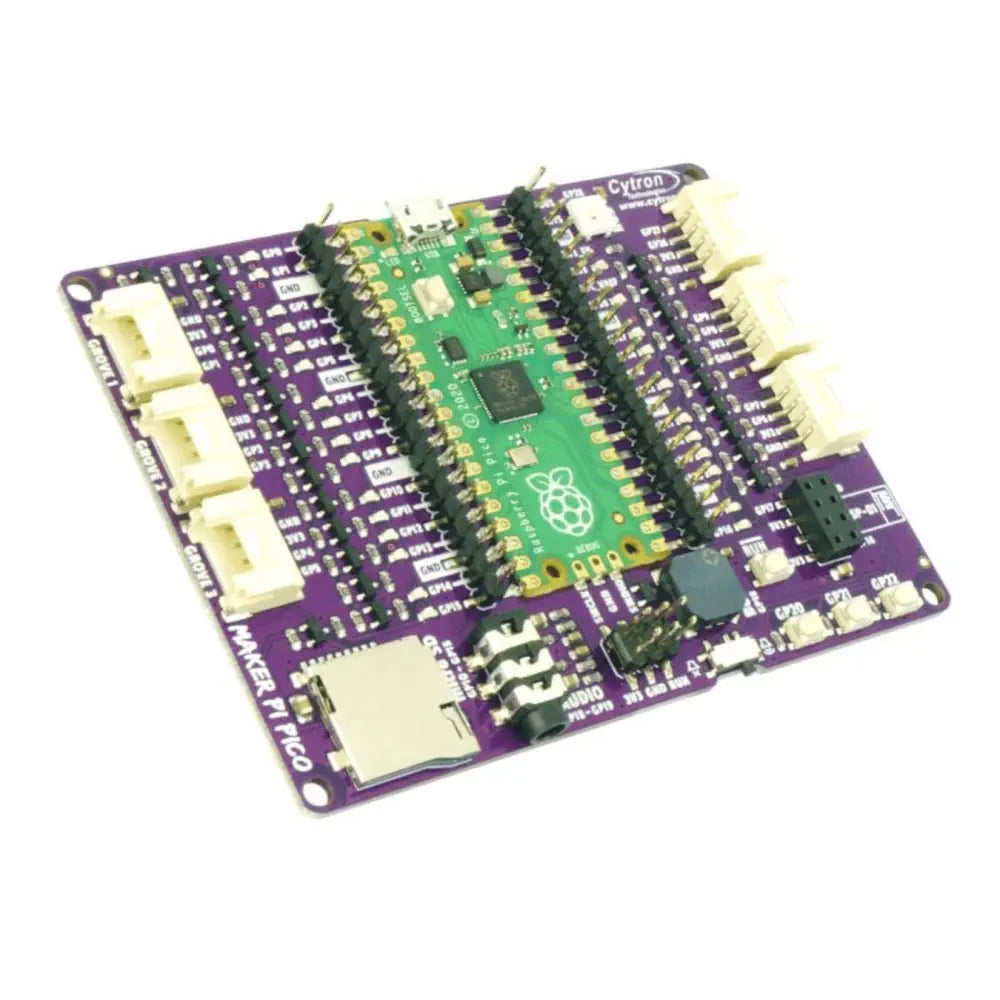

Maker Pi Pico: Simplifying Raspberry Pi Pico for Beginners

$12.83
{{option.name}}: {{selected_options[option.position]}}
{{value_obj.value}}
Store Logo

RobotShop USA

View Store

Description Maker Pi Pico: Simplifying Raspberry Pi Pico for Beginners Offers three programmable push button and 6 Grove ports Comes with Raspberry Pi Pico soldered onboard Each GPIO is coupled with an LED indicator Doesn't require soldering Gives you access to all GPIO pins on two 20 ways pin-headers The Maker Pi Pico: Simplifying Raspberry Pi Pico for Beginners incorporates the most wanted Reset button for your Raspberry Pi Pico and gives you access to all GPIO pins on two 20 ways pin-headers, with clear labels. Each GPIO is coupled with an LED indicator for convenient code testing and troubleshooting. The bottom layer of this board even comes with a comprehensive pinout diagram showing the function of each pin. It is a compact yet feature-packed board designed to sit at the heart of your STEM & robotics projects. Just use the jumper wires and/or Grove cables to connect any sensor and output modules to expand its capability. View more What's Included 1 x Maker Pi Pico: Simplifying Raspberry Pi Pico for Beginners Dimensions Size 93.98 x 68.58 mm (L x W) Links PDF Files Maker Pi Pico: Simplifying Raspberry Pi Pico for Beginners - Datasheet Maker Pi Pico: Simplifying Raspberry Pi Pico for Beginners - Schematics Specifications Microcontroller: RP2040 Cores: Dual-Core Core Architecture: 32-bit ARM Cortex-M0+ CPU Clock: Default 48 MHz, Max up to 133 MHz RAM Size: 264 KByte SRAM Flash Size: 2 MByte Q-SPI Flash Programming Language: MicroPython, C, C++ Board Power Input: 5VDC via USB Micro B Alternative Board Power: 2 - 5 VDC via VSYS Pin (Pin 39) MCU Voltage: 3.3 VDC GPIO Voltage: 3.3 VDC USB Interface: USB 1.1 Device and Host Program Loading: USB Micro B. USB Mass Storage GPIO: 26 x Digital Input/Output (Total) ADC: 3 x 12-bit 500ksps Temperature Sensor: Built-in, 12-bit UART: 2 x UART l2C: 2xl2C SPI: 2xSPI PWM: 16 x PWM Timer: 1 x Timer with 4 x Alarm Real Time Counter: 1 x Real Time Counter PIO: 2 x Programmable High Speed IO On Board LED: 1 x Programmable LED (GP25) On Board Button: 1 x BOOTSEL Button Breakout of PCB: 40 x 0.1" (100mil) Standard Header Pads 40 x 0.1" (100) Castellations Edge (SMT Friendly) Debug Port: 3-pin ARM Serial Wire Debug (SWD) Port
