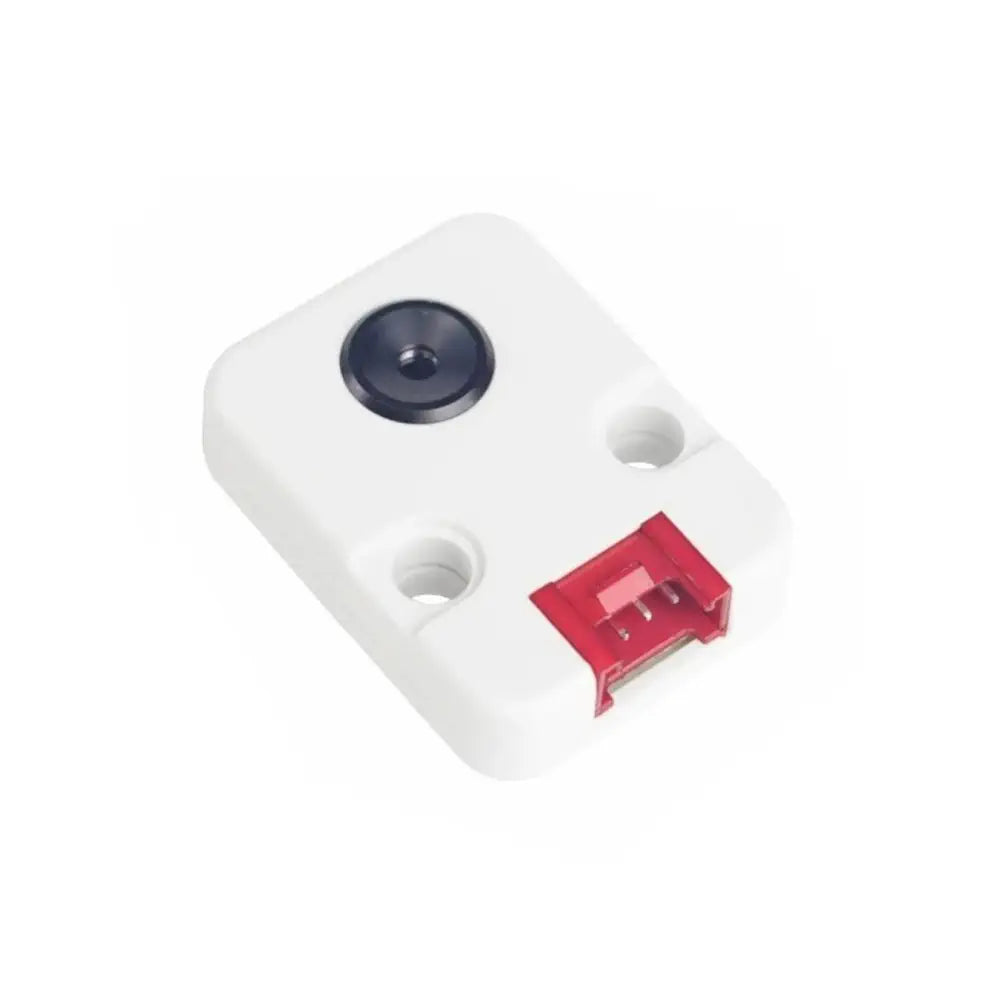

M5Stack Thermal Camera Unit (MLX90640)

Description M5Stack Thermal Camera Unit (MLX90640) Offers two Lego-compatible holes Contains a thermopile sensor Operating Voltage: 3 ~ 3.6 V Current Consumption: 23 mA Communication protocol: I2C The M5Stack Thermal Camera Unit (MLX90640) contains a thermopile sensor named MLX90640. It can be used to measure the surface temperature of an object and form a thermographic image by a temperature gradient composed of different surface temperatures. The image resolution is 32 x 24. The MLX90640 Infrared (IR) sensor array combines high resolution and reliable operation in harsh environments, providing a cost-effective alternative to more expensive high-end thermal imaging cameras. Unlike the case of a microbolometer, the sensor does not require frequent recalibration, ensuring continuous monitoring and reducing system cost. View more What's Included 1x THERMAL Unit 1x Grove Cable Dimensions Size 32 x 24 x 8 mm (L x W x H) Specifications Operating Voltage: 3 ~ 3.6 V Current Consumption: 23 mA Field of View: 110° x 75° Measurement Range: -40 ~ 300 °C Resolution: ±1.5°C Refresh Rate: 0.5 Hz - 64 Hz Operating temperature: -40 ~ 85 °C Communication protocol: I2C Lego-compatible holes: 2 Weight: 5 g
