M5Stack ESP32 Ethernet Unit w/ PoE
www.robotshop.com

M5Stack ESP32 Ethernet Unit w/ PoE

$32.69
{{option.name}}: {{selected_options[option.position]}}
{{value_obj.value}}
Store Logo

RobotShop USA

View Store

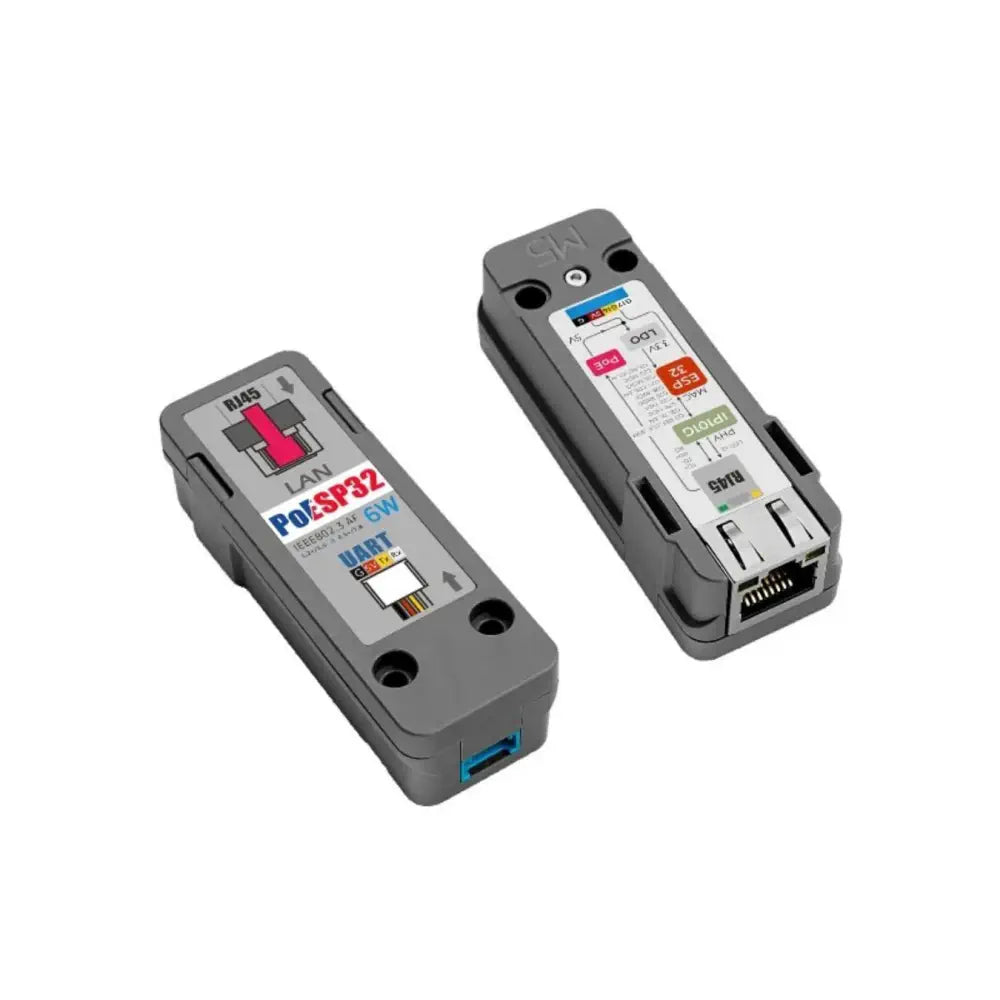

Description M5Stack ESP32 Ethernet Unit w/ PoE Comes with a 20cm long HY2.0-4P cable Adopts ESP32 as built-in MAC Development Platform: Arduino, ESP-IDF Communication Interface: UART The M5Stack ESP32 Ethernet Unit w/ PoE is an ESP32 Ethernet Unit that supports PoE (Power Over Ethernet). This module adopts ESP32 as a built-in MAC and IP101G as a physical layer transceiver. Default firmware with ESP-AT, supports TCP, MQTT, and HTTP protocols. It can connect to the server with simple AT commands through a serial port, achieving data transmission and remote control functions. This module simplifies wiring and saves labor costs with PoE power supply, and It reserves the ability for secondary development to meet your requirement. View more What's Included 1x UNIT PoESP32 1x HY2.0-4P Cable (20 cm) 1x Instruction manual Dimensions Size 72 x 26 x 19.2 mm Specifications ESP32-WROOM-32U: 240 MHz dual-core, 600 DMIPS, 520KB SRAM PHY: IP101G: IEEE 802.3/802.3u MAC-PHY Interface Type: RMII PoE IEEE802.3 AF: Maximum Power: 6 W | Voltage: DC 37 - 57 V Ethernet: RJ45 10/100 Mbps Flash: 4 MB Reserved interface: 1x HY2.0-4P interface | 1x program download interface Communication interface: UART 9600 bps 8N1 AT command control Communication logic level: 3.3 V Weight: 26.2 g
