M5Stack ATOMS3 Dev Kit w/ 0.85-inch Screen
www.robotshop.com

M5Stack ATOMS3 Dev Kit w/ 0.85-inch Screen

$21.85
{{option.name}}: {{selected_options[option.position]}}
{{value_obj.value}}
Store Logo

RobotShop USA

View Store

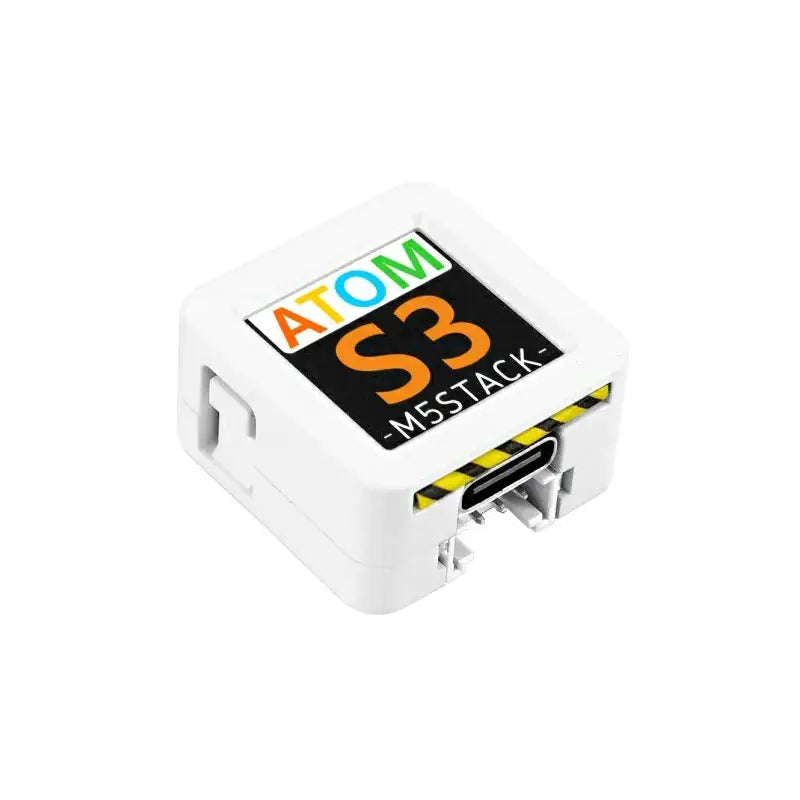

Description ATOMS3 Dev Kit w/ 0.85-inch Screen by M5Stack Offers a 0.85-inch LCD screen Comes with a USB download function Built-in 3-axis gyroscope and 3-axis accelerometer Infrared emission function Development platform: Arduino, UIFlow The M5Stack ATOMS3 Dev Kit w/ 0.85-inch Screen is a highly integrated programmable controller based on ESP32-S3 main control, which integrates ESP32-S3 main control, integrated WiFi function, and 8M on-chip Flash, 0.85 inch IPS screen Programmable button function at the bottom of the screen. Built-in 5V to 3.3V circuit, 6-axis gyro sensor MPU6886, on-board Type-C interface, power supply, and firmware download, one HY2.0 4P expansion port, 6 GPIOs and power pins reserved at the bottom to facilitate expansion applications. View more What's Included 1x M5Stack ATOMS3 Dev Kit w/ 0.85-inch Screen Dimensions Size 24 x 24 x 13 mm Screen: 0.85 inch Specifications Resolution: 128 x 128 Support Voltage: 5 V Power Supply Mode: TYPE C Output Voltage: 3.3 V IO interface x6: G5 / G6 / G7 / G8 / G38G39 Operating Temperature: 0 °C ~ 40 °C Screen communication protocol: SPI Weight: 6.8 g
