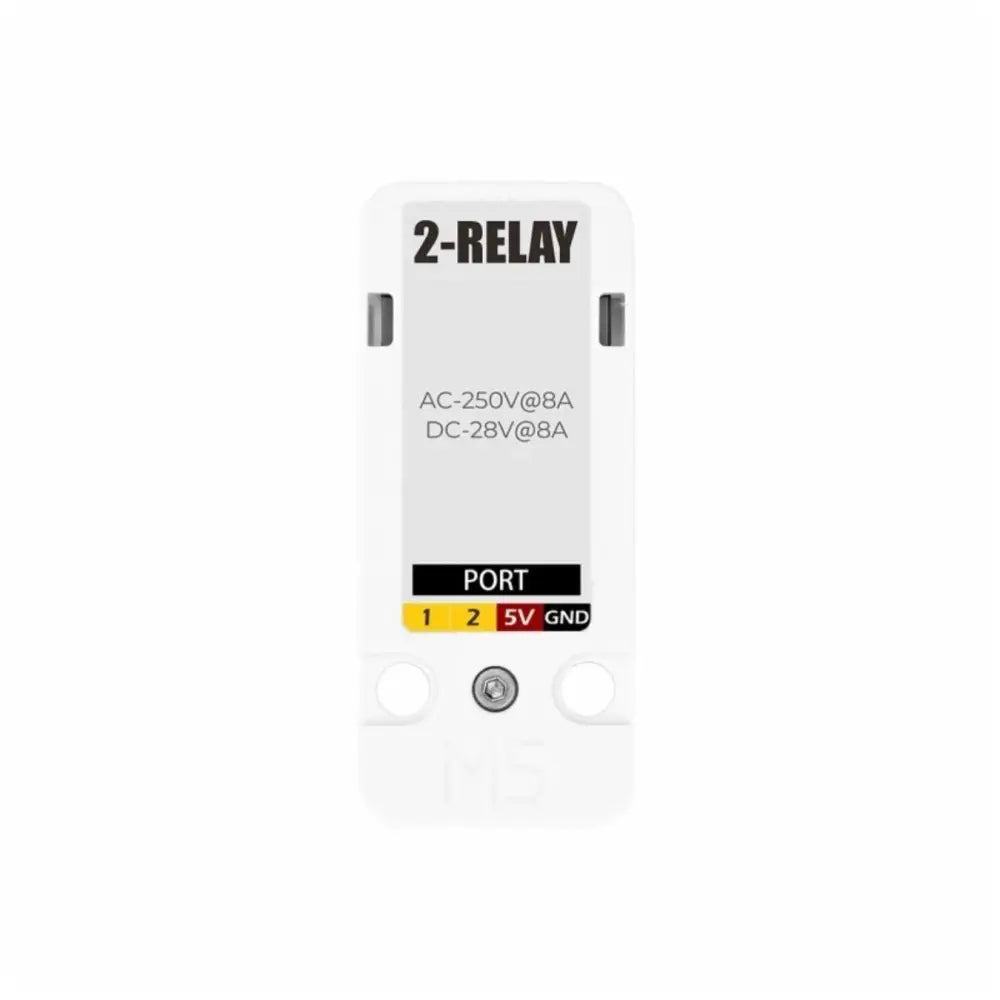

M5Stack 2-Channel SPST Relay Unit
www.robotshop.com

M5Stack 2-Channel SPST Relay Unit

$9.52
{{option.name}}: {{selected_options[option.position]}}
{{value_obj.value}}
Store Logo

RobotShop USA

View Store

Description M5Stack 2-Channel SPST Relay Unit Offers a 2-channel SPST relay module Equipped with two high-current relays Provides status indicator LED Suitable for home appliance power control Rated current: 8 A The M5Stack 2-Channel SPST Relay Unit is a 2-channel SPST relay module, equipped with two high-current relays that work under AC250V 8A or DC28V 8A. Each relay adopts independent IO control, and status indicator LED. It is suitable for home appliance power control, or an ON/OFF switch for industrial equipment. View more What's Included 1x 2 RELAY Unit 1x HY2.0-4P cable (20 cm) 2x VH3.96-4P Plug terminal Dimensions Size 56 x 24 x 19 mm (L x W x H) Links PDF File M5Stack 2-Channel SPST Relay Unit - Schematics Specifications Maximum on-off voltage: AC - 250 V / DC - 28 V Rated current: 8 A Coil control voltage: DC 5V Coil power consumption: 5V at154 mA Coil action time: ≤ 8 ms Coil release time: ≤ 5 ms Contact form: A normally open type Contact material: Ag SnO2 Relay indicator: Blue x2 Weight: 20 g
