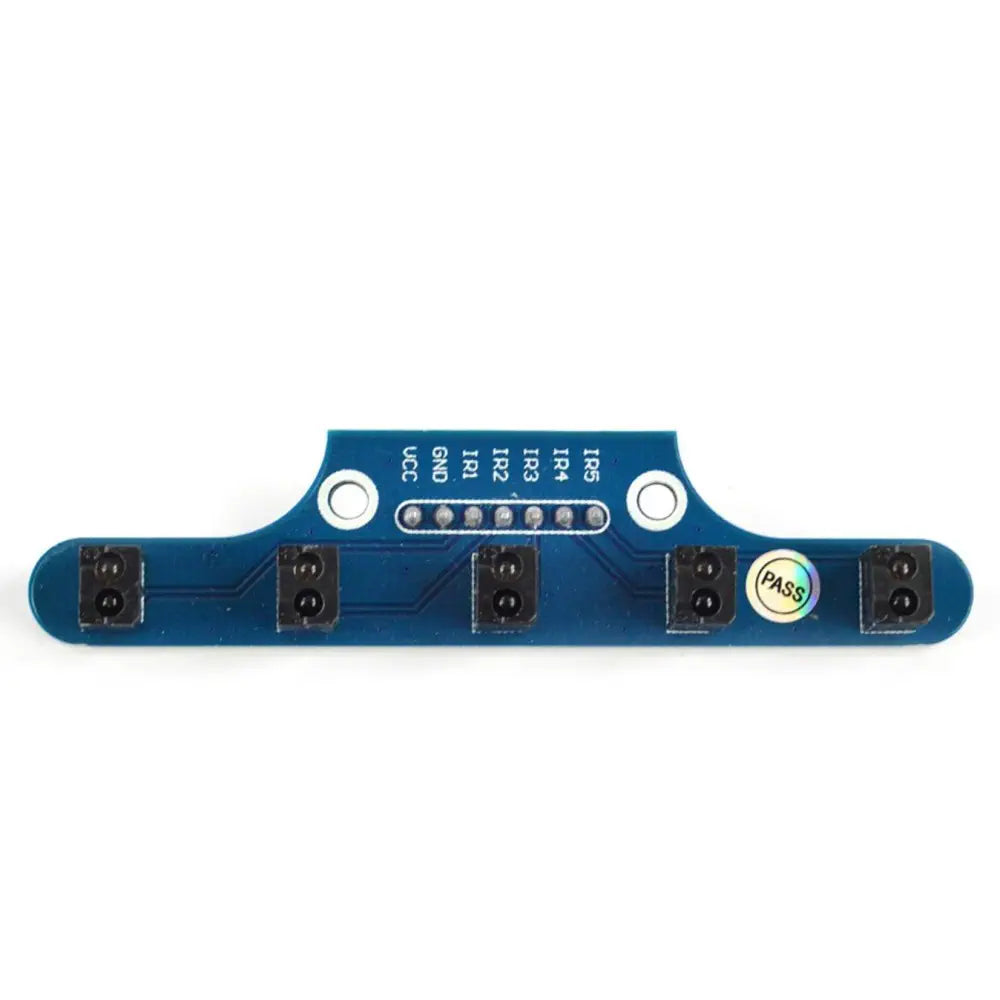

Infrared Line Tracking Sensor

Description Infrared Line Tracking Sensor 5-ch ITR20001/T infrared detector, high sensitivity, anti-jamming, stable performance High precision analog output, combined with PID control algorithm, allows the robot tracks lines more stable The Infrared Line Tracking Sensor offers high sensitivity, anti-jamming, stable performance. View more What's Included 1x Tracker Sensor 1x XH2.54 7PIN Wire Dimensions Links PDF File Infrared Line Tracking Sensor Schematic ZIP File Infrared Line Tracking Sensor Documentation Specifications Power: 3.3V ~ 5V Dimension: 78mm × 18mm Detector spacing: 16mm Mounting holes size: 3mm Detection range: 1cm ~ 5cm Applications Robot line tracking How to Use In the case of working with a MCU: VCC ↔ 3.3V ~ 5V GND ↔ GND IR1 ↔ MCU.IO (ch1, analog output) IR2 ↔ MCU.IO (ch2, analog output) IR3 ↔ MCU.IO (ch3, analog output) IR4 ↔ MCU.IO (ch4, analog output) IR5 ↔ MCU.IO (ch5, analog output)
