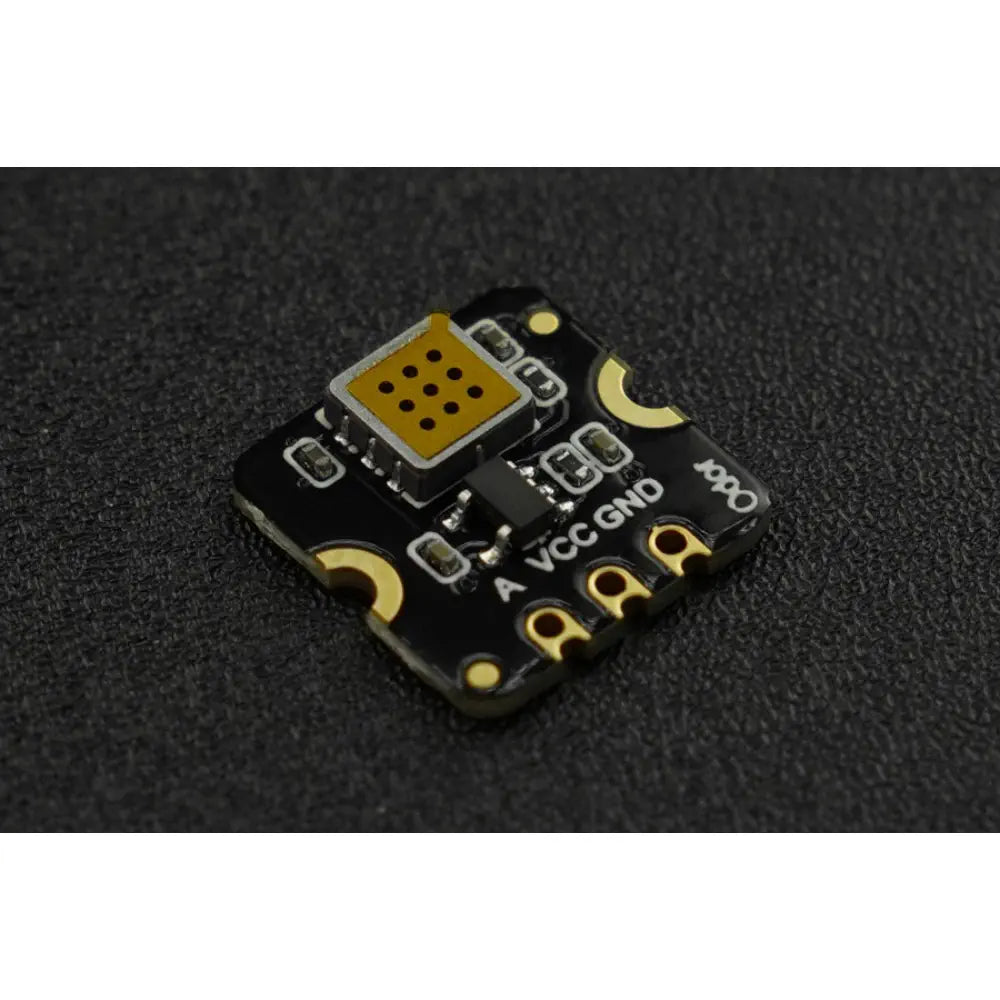

Fermion: MEMS Odor Smell Gas Detection Sensor (Breakout, 0.5-50ppm)

Description Fermion: MEMS Odor Smell Gas Detection Sensor (Breakout) Compact and efficient with dimensions of 13 x 13 x 2.5 mm Features low power consumption and minimal heat generation Versatile, ideal for odor detection and health applications Operates at a voltage of 3-5 V with a lifespan of over 5 years Detects a wide range of gases from 0.5-50 ppm The Fermion: MEMS Odor Smell Gas Detection Sensor (Breakout, 0.5-50ppm) is a cutting-edge sensor that employs microelectromechanical system (MEMS) technology. This compact sensor, with dimensions of 13 x 13 x 2.5 mm, is characterized by its low power consumption, minimal heat generation, brief preheating time, and rapid response recovery. It is capable of qualitatively measuring the concentration of odor gas, making it an ideal choice for breath detectors, odor detection, and a variety of other applications. The sensor can detect a wide range of gases, including HCHO, CO, CH4, VOC, NH3, H2S, EtOH, Smoke, Odor, H2, NO2, although it is limited to qualitative measurements. The sensor's design emphasizes compactness, low power consumption, and high sensitivity. It is versatile enough to be used in a range of applications, such as aviation safety, spoiled food material detection, body odor detection, and various health applications. The sensor operates at a voltage of 3-5 V and has an operating current of less than 20 mA. It has a detection range of 0.5-50 ppm and a lifespan of more than 5 years (in air). Important Note: Prior to use, the protective film must be removed. Exposure to volatile silicon compounds vapors and high concentrations of corrosive gases should be avoided. It is also crucial to prevent contamination from alkalis, alkali metal salts, and halogens, and to avoid contact with water, condensation, and freezing. Excessive vibration, impact, and dropping should be minimized, and the module should be preheated for at least 24 hours after extended periods of non-usage. View more What's Included 1x Fermion: MEMS Odor Smell Gas Detection Sensor (breakout) 1x 2.54mm pitch header pin Dimensions 13 x 2.5 mm / 0.51 x 0.51 x 0.1 inch Links Website Fermion: MEMS Odor Smell Gas Detection Sensor (Breakout, 0.5-50ppm) - Wiki Specifications Gas detected: H2S, EtOH, acetone, and others Detection range: 0.5 - 50 ppm Operating voltage: 3 - 5 V Operating current: Less than 20 mA Output signal: Analog voltage Sensitivity: R0 (in air) / Rs (in 5ppm H2S) should be greater than or equal to 2 Operating temperature: -10 - 50 °C Operating humidity: 15 - 90% RH (non-condensing) Lifespan: At least 5 years (in air)
