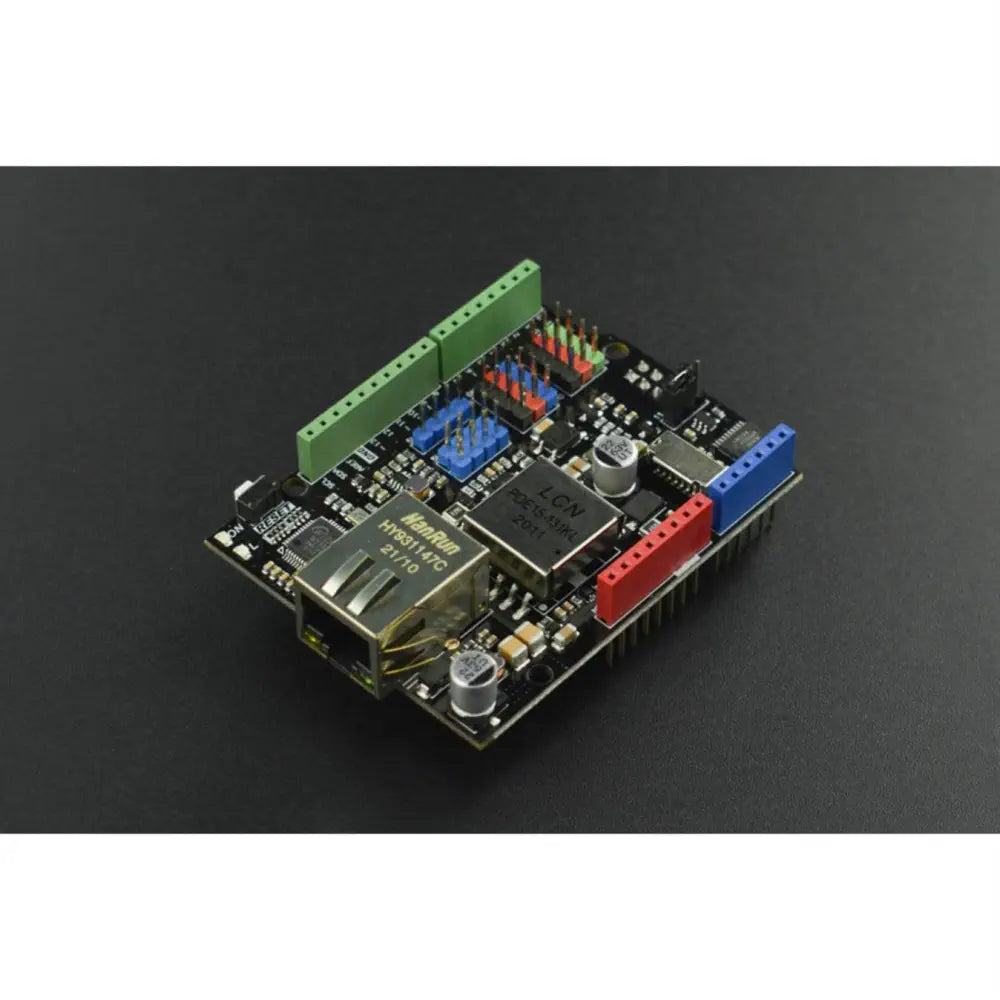

DFRobot Ethernet & PoE Shield for Arduino - W5500 Chipset

Description DFRobot Ethernet & PoE Shield for Arduino - W5500 Chipset Features Gravity 3Pin ports for connecting sensors Provides easier Internet connection to embedded systems Embeds 32KB internal memory buffer Onboard level converter circuit Support hardware TCP/IP protocol: TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE The DFRobot Ethernet & PoE Shield for Arduino - W5500 Chipset is a Hardwired TCP/IP embedded Ethernet controller that provides an easier Internet connection to embedded systems. It enables users to have Internet connectivity in their applications just by using the single chip in which TCP/IP stack, 10/100 Ethernet MAC, and PHY are embedded. The Hardwired TCP/IP is the market-proven technology that supports TCP, UDP, IPv4, ICMP, ARP, IGMP, and PPPoE protocols. View more What's Included 1x Ethernet & PoE Shield for Arduino-W5500 1x 2.54 Open-type Jumper Cap Dimensions Size 72.5 x 53.3 mm / 2.85 x 2.1 inch (L x W) PCB: 68.6 x 53.3 mm / 2.68 x 2.1 inch (L x W) Links Website DFRobot Ethernet & PoE Shield for Arduino - W5500 Chipset - Wiki Specifications PoE Input: 48V AC/DC (the product is a Class 0 PD device that meets the 802.3at standard) PoE Power: up to 12W (the VIN port can output 12V/1A) SPI Clock: 80 MHz (Max) PHY: WIZnet W5500
