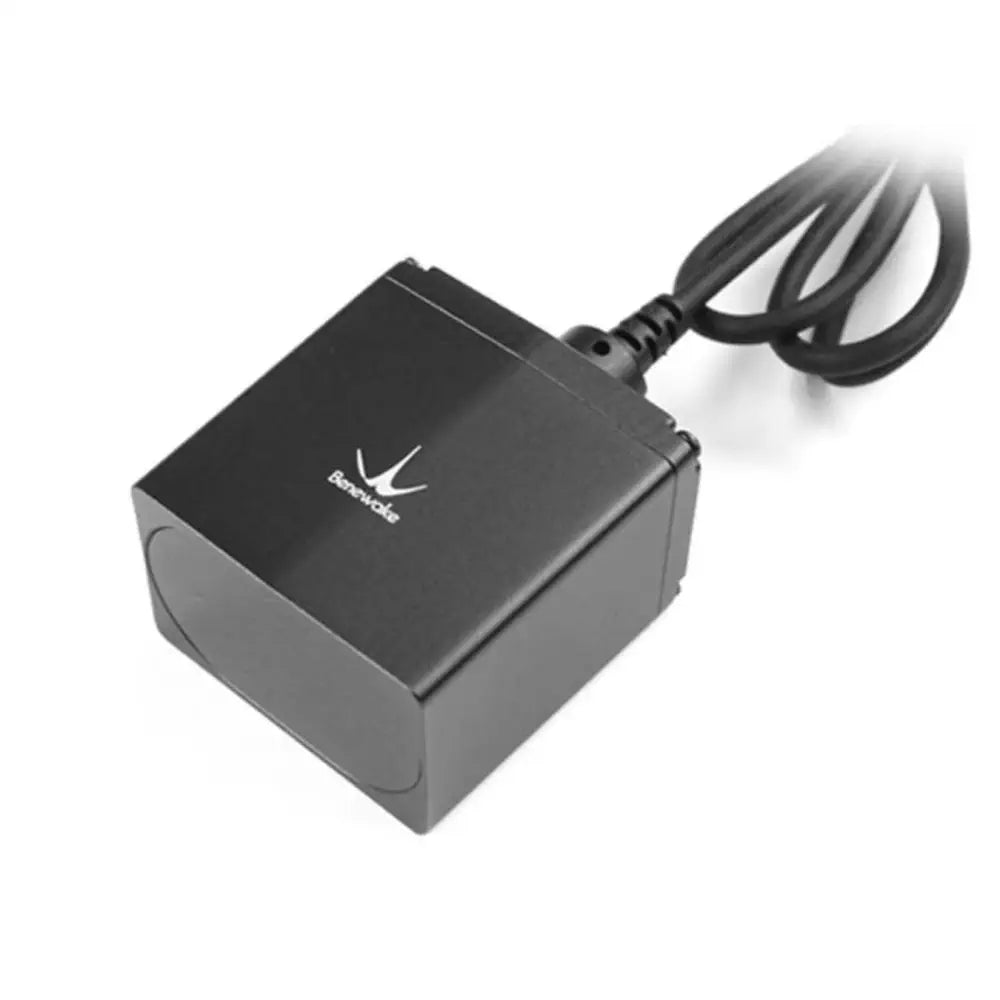

Benewake TF03 LIDAR LED Rangefinder IP67 (180 m)
www.robotshop.com

Benewake TF03 LIDAR LED Rangefinder IP67 (180 m)

$315.52
{{option.name}}: {{selected_options[option.position]}}
{{value_obj.value}}
Store Logo

RobotShop USA

View Store

Description Benewake TF03 LIDAR LED Rangefinder IP67 Operating Range: 100m (max 180m) Features multi-interface compatibility Offers high speed measuring up to 1KHz (can be customized to up to 10kHz) Able to be used outdoors The Benewake TF03 LIDAR LED Rangefinder IP67 (100 m) is single-point long distance LiDAR in accordance with the industrial level, mainly targets the intelligent transportation system, industrial UAV, automotive and other industrial applications. To maximize different requirements in different applications and scenarios, TF03 can be compatible with a variety of communication interfaces, featuring IP67 high-intensity bodywork and the measurement frequency as high as 10 KHz. It not only has powerful performance and rich interfaces but also is small in volume, so that it could be integrated more easily in applications. In addition, TF03 contains a compensation algorithm targeting outdoor highlight environment, so that it could still work normally in highlight environment. Besides, it also has a variety of measurement models and parameters for custom configurations, so as to meet the ranging needs of different customers. View more What's Included 1x Benewake TF03 LIDAR LED Rangefinder IP67 (180 m) Dimensions Size 44 x 43 x 32 mm Links PDF Files Benewake TF03 LIDAR LED Rangefinder IP67 (180 m) - Datasheet 1 Benewake TF03 LIDAR LED Rangefinder IP67 (180 m) - Datasheet 2 Benewake TF03 LIDAR LED Rangefinder IP67 (180 m) - UAV Altitude Holding Application Benewake TF03 LIDAR LED Rangefinder IP67 (180 m) - LiDAR Level Gauge Application Specifications Performance parameters Operating Range: 100m (max 180m) Non-detection zone: 10cm Distance resolution: 1cm Accuracy: ±10cm (less than 10m), 1% (more than 10m) Refresh rate: 1Hz-1,000Hz (default 100Hz) Ambient light immunity: 100Klux Optical parameters Wavelength of Light Source: 905nm FOV: 0.5° Ambient data Operation Temperature: -25~60 Communication and Interface Form of Output Data: Hexadecimal distance value; Character string; Communication Interface: UART; CAN Mechanical/Electrical parameters Supply Voltage: DC 5V (=200mA) Power Consumption: 0.9W Weight: 77g
