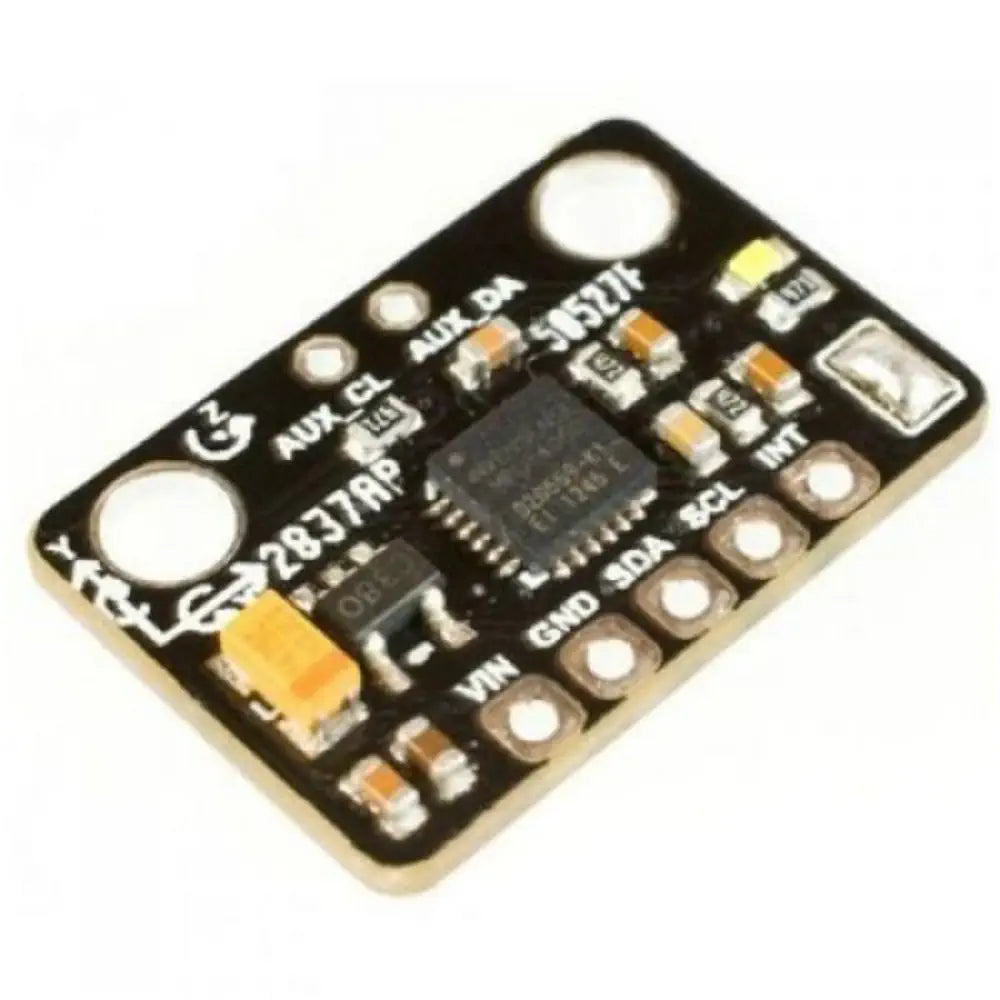

6 DOF Gyro, Accelerometer IMU - MPU6050

Description Tri-Axis accelerometer with a programmable full scale range of ±2g, ±4g, ±8g and ±16g Combines a 3-axis gyroscope and a 3-axis accelerometer I2C Digital-output of 6 or 9-axis Motion Fusion data in rotation matrix Working Voltage: 3V - 5V The 6 DOF Gyro, Accelerometer IMU - MPU6050 combine a 3-axis gyroscope and a 3-axis accelerometer on the same silicon die together with an onboard Digital Motion Processor (DMP) capable of processing complex 9-axis Motion Fusion algorithms. The integrated 9-axis Motion Fusion algorithms access external magnetometers or other sensors through an auxiliary master I2C bus, allowing the devices to gather a full set of sensor data without intervention from the system processor. View more Links PDF File 6 DOF Gyro, Accelerometer IMU - MPU6050 - Schematics Website 6 DOF Gyro, Accelerometer IMU - MPU6050 - Wiki Multimedia docReady(function() {$('button[aria-controls=unique-tab-5]').one('click',function() {$("#iframe-video-1").html('');})}); Specifications Working Voltage: 3 V - 5 V I2C Digital output of 6 or 9-axis Motion Fusion data in rotation matrix, quaternion, Euler Angle, or raw data format Tri-Axis accelerometer with a programmable full-scale range of ±2g, ±4g, ±8g and ±16g
