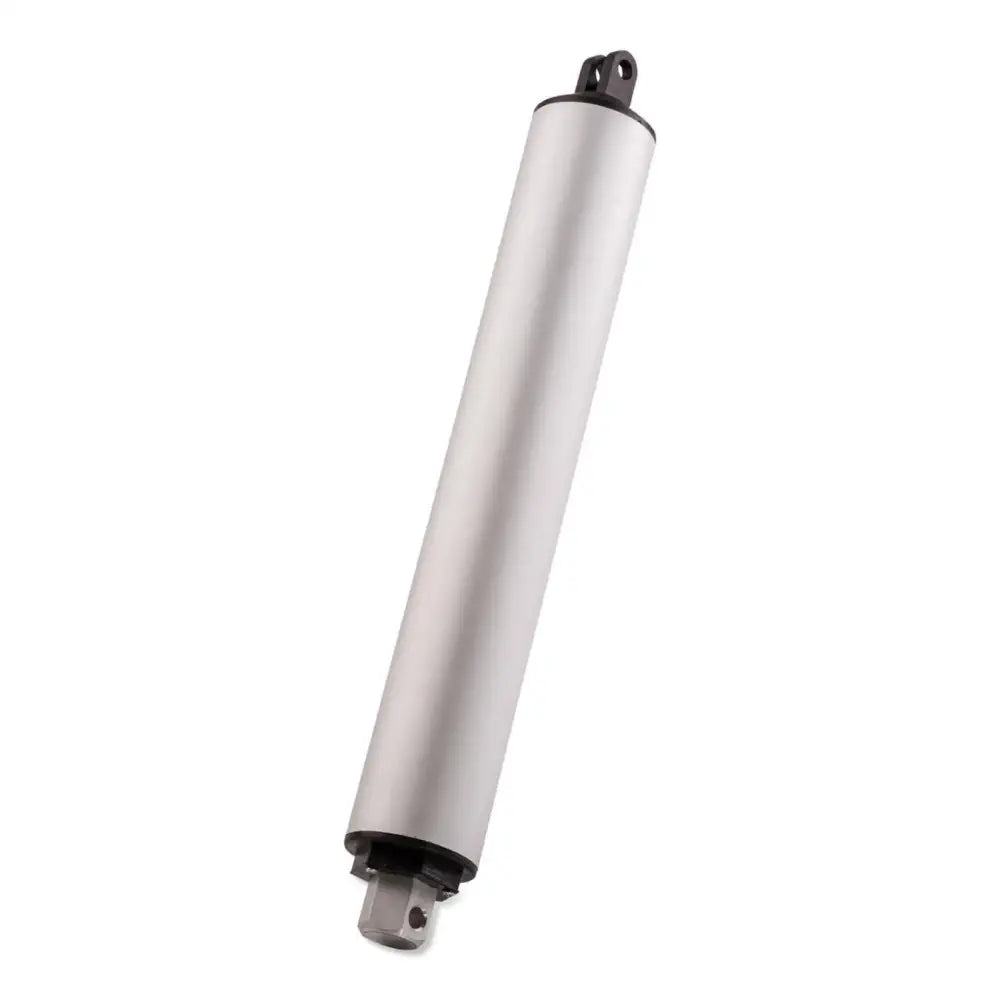

12'' Stroke, 22lb Force High Speed Linear Actuator

Description Stroke: 12'' Force: 22lb Input: 12Vdc 5A max current draw IP54 Rating Built-in limit switches This 12'' Stroke, 22lb, High Speed Linear Actuator is built from a tubular aluminum alloy. It features a light weight body, integrated with high speed planetary gear motor. It is suitable for any type of indoor/outdoor applications where high speed stroke is required and/or very low noise, measuring only 5dB above ambient. View more Dimensions Specifications 9''/sec no load speed (230mm/sec) 4.5''/sec 22lbs load (120mm/sec) Duty cycle 20% Temperature range: -26ºC to +65ºC Wiring: 2 wires, reverse polarity changes direction More stroke options: 4'' Stroke, 22lb Force, High Speed Linear Actuator, Firgelli 6-Inch Stroke, 22lb Force High Speed Linear Actuator, 8'' Stroke, 22lb Force High Speed Linear Actuator, 18'' Stroke, 22lb Force, High Speed Linear Actuator (custom strokes available) Higher forces and slower speed options available for customer orders Uses MB8 brackets on both ends For power supply use manufacturer's power-adapters Closed length: 21.5" Open length: 33.5"
