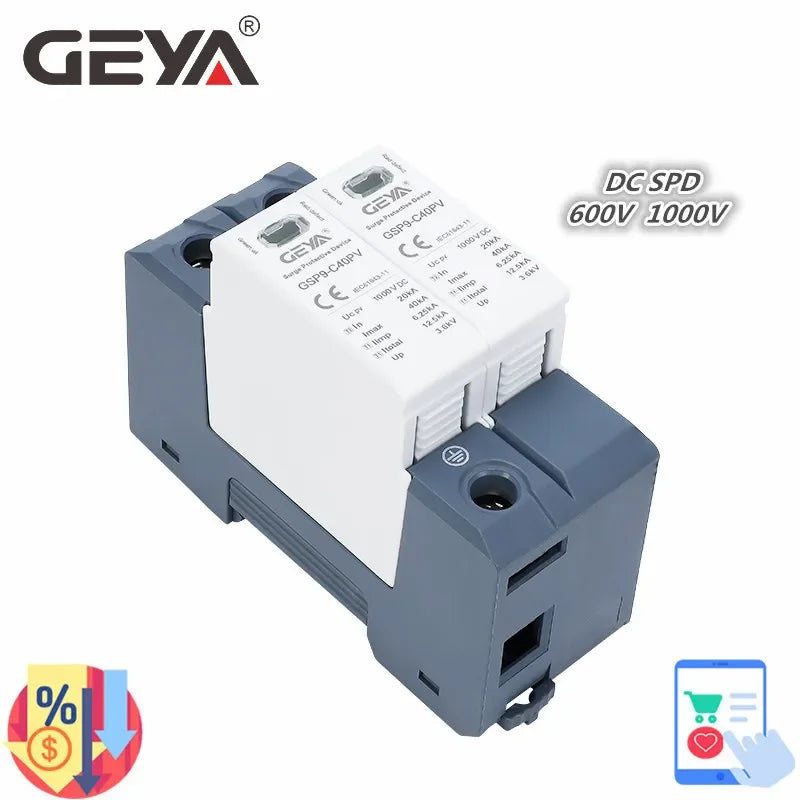

GEYA GSP9 Photovoltaic DC SPD 2P 600V 1000V 20KA~40KA Surge Protector Protective Device Lightning Protection Din Rail T1+T2
shop.remotepracticemanagers.com

GEYA GSP9 Photovoltaic DC SPD 2P 600V 1000V 20KA~40KA Surge Protector Protective Device Lightning Protection Din Rail T1+T2

$35.99
{{option.name}}: {{selected_options[option.position]}}
{{value_obj.value}}
Store Logo

Remote Practice Managers

View Store

SPECIFICATIONSProduct Name: Surge Protection Device/SPD DCStandard: IEC/EN 61643-11;GB18802.11Max. PV voltage [ Uc pv ]: 600VDC, 1000VDC,1500VDCIEC test classification: T1+T2/Class I+ IIDischarge Current: 20-40KAResponse time: 25nsOperating State: GreenFault Indication: RedMounted: Din RailBrand Name: GEYAModel Number: GSP9-C40PV DC SPDType: OtherRated Voltage: 690VIs Smart Device: noOrigin: Mainland Chinais_customized: YesCertification: CEType: Circuit breakerChoice: yessemi_Choice: yes GEYA GSP9 2P Solar PV Low Voltage SPD Din Rail DC 600V 1000V 20KA-40KA Surge Arrester Lightning Protector DC SPD General GSP9 DC surge protective device is applied low voltage standard IEC EN 61643-11 to protect against DC power line system and other equipment from over voltage and instantaneous over voltage damage.Widely used in photovoltaic comber box, power inverter, DC distribution cabinet etc.It has advantages of large discharge current, fast respond time, low residual voltage. Max. PV voltag

Show More Show Less
