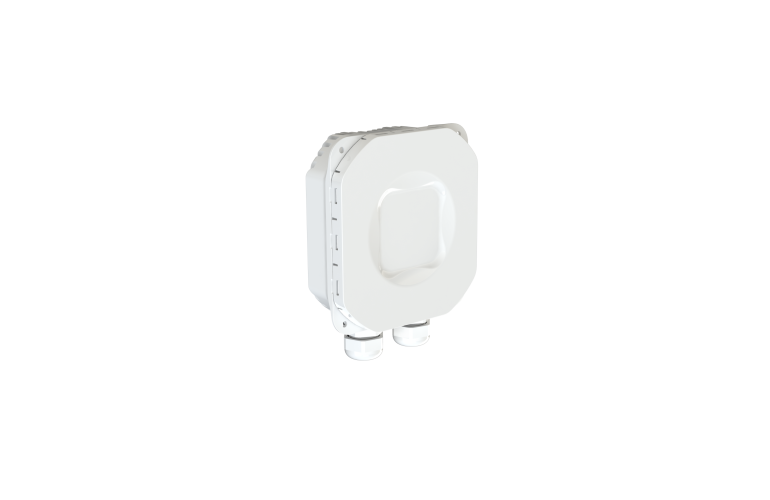

TACHYON - TNA-303X 60GHz MODULAR OUTDOOR AP/CLIENT

PTP/PTMP Specification Antenna Base antenna: 16 dBi 3D beamforming phased array with +/- 45° azimuth (90° total) and +/- 25° elevation (50° total). Beam size is: 30° azimuth x 30° elevation. Single linear polarization. (Optional additional antennas for long range coverage) Dimensions Height: 5" / 13cm, Width: 5" / 12 cm, Depth: 2” / 5.5cm Duplex TDD Encryption AES 256 + GCMP Frequency/ channels Full band: 57-71 GHz: channels: 1-6 Half channels: 1-11 (see notes on support site about half channel support) Interfaces 1 x 2.5G ethernet, 1 x 1G ethernet Max power consumption 17W without PoE out being used, and 41W with PoE out being used Max stations/ AP Up to 32 stations Mounting Options Pole or wall mountable via mounting backplate Operating Modes Station, Access Point (software configurable). Operating Temperature -30°C - 55°C Power Input: Active PoE 38-57VDC (passive injector included) Output: On 1G port: passive PoE out w/max .5A Weight 425g
