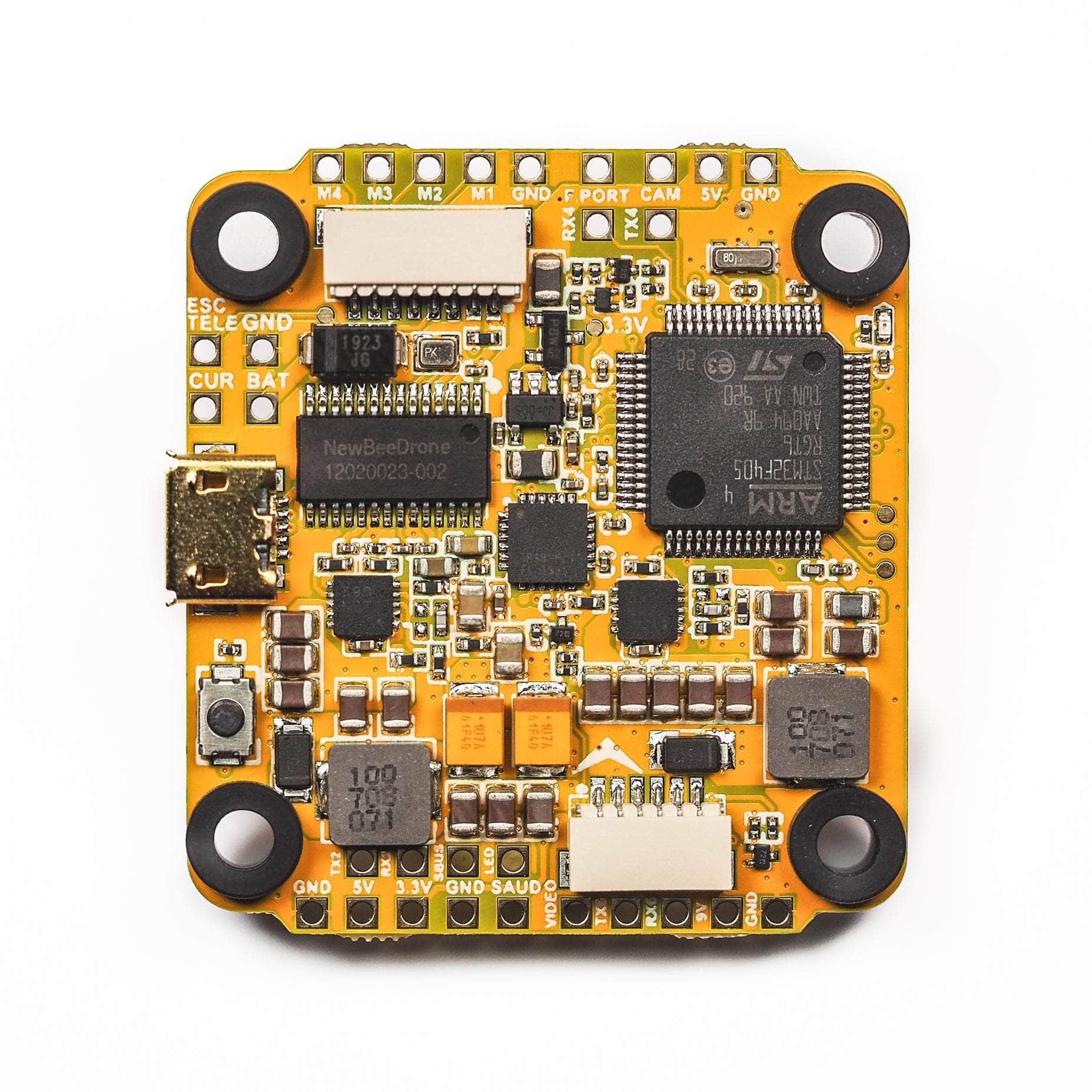

NewBeeDrone Infinity305 F4 Flight Controller

Infinity305 Flight Controller   -Infinity305 Flight Controller Firmware on Official BetaflightTarget name: NBD_INFINITYF4 Build Video: We are offering a limited supply of the Infinity FC with a BlackBox pre-installed. The chip is a W25Q128JVSIM (128Mbit / 16MByte) Flight Controller Spec: MPU6000 Gyro STM32F405 CPUE @ 168mhz, can be overclocked 3-6S direct battery input 5V 2A, 9V 2A 18W Design for DJI FPV Air Unit 5V Camera Power betaflight OSD Flat bottom PCB for SUPER CLEAN builds 36x39 CB with 30.5x30.5 mounting holes 6 UARTS. UART1 (INVERTER FOR SBUS) UART2 (FREE) UART3 (INVERTED TELEMETRY) UART4 (Free) UART5 (Smart Audio) UART6(Free) Built-in 4 IN 1 ESC socket(including ESC telemetry, External current sensor) JST1.0 8Pin Plug and plug with NBD Infinity30 ESC. Also compatible with most of the ESC on the market. Built-in solder pads for ESC signal output and power Printed layout instructions ON the board - no need for instructions! DJI FPV Air Unit socket (use UART1 and UART6)   Includes: 1x Infinity305 flight controller 4x Grommets short 4x Grommets Long 1x Infinity305 FC to DJI Air module cable 40mm 1x Infinity305 FC to DJI Air module cable 100mm 1x Infinity305 FC to DJI Air module cable 150mm NOTE: We suggest running a cap on 4s builds. Even though we tested and designed it to not need one, all builds are different and there are always exceptions.
