Diatone Mamba MK4 F722 APP F55_128k 3-6S 30x30 Stack/Combo (F722 FC / 55A 128k 32bit 4in1 ESC)
www.racedayquads.com

Diatone Mamba MK4 F722 APP F55_128k 3-6S 30x30 Stack/Combo (F722 FC / 55A 128k 32bit 4in1 ESC)

$136.99
{{option.name}}: {{selected_options[option.position]}}
{{value_obj.value}}
Store Logo

RaceDayQuads

View Store

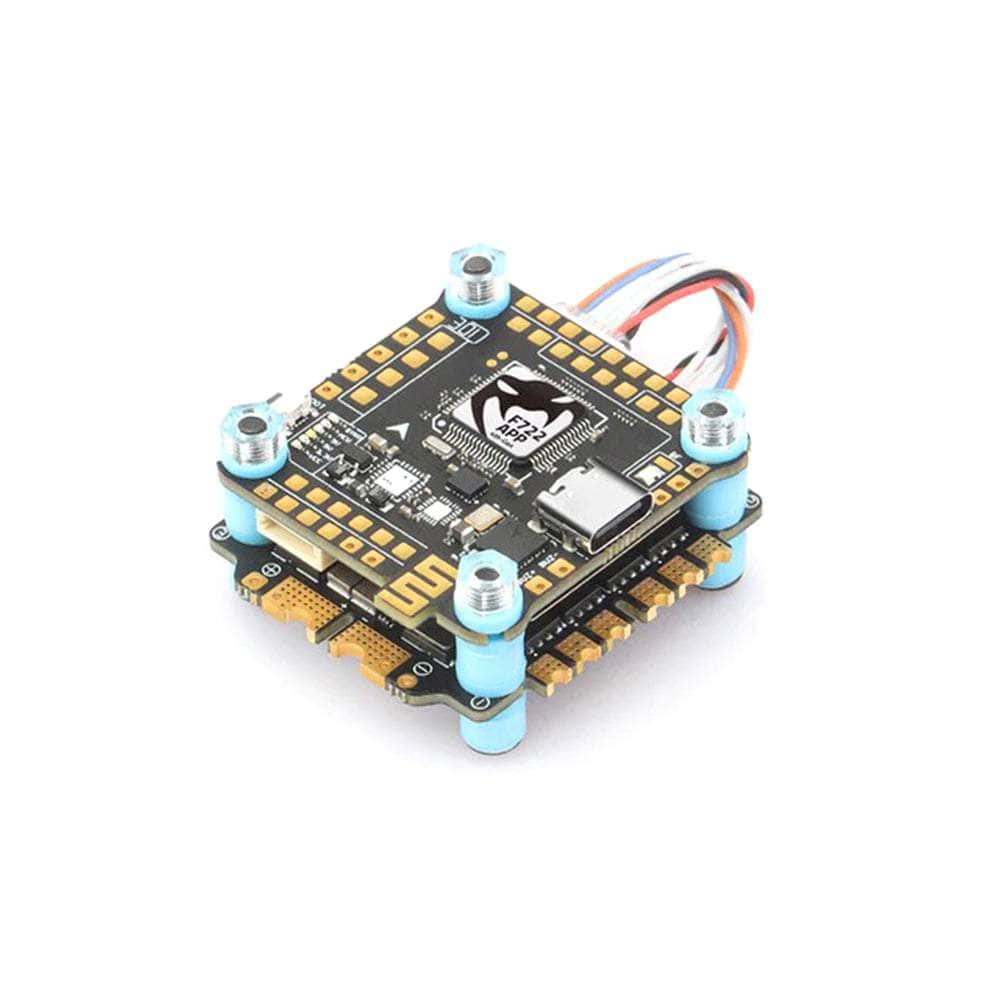

This stack pairs the Mamba MK4 F722 APP FC and the Mamba F55_128k 55A 4in1 ESC. With multiple UARTS and BECS, this stack can run all the peripherals you could ever want with ease. Browse our Stacks & Combos and our Diatone Gear! Specifications Mamba MK4 F722 APP Voltage Input: 3-6S MCU: STM32F722 Gyro: ICM42688P OSD: AT7456E Blackbox: 16M Flash Memory Uarts: 6Set ESC Signal: 8Set LED Controller: BF LED/MB LED I2C: Yes F.Port: Yes Buzz: Yes WiFi: Yes TVS Protection: Yes BEC: 3.3V 0.5A & 5V 3A & 9V 3A Mounting Pattern: 30x30 M3 Mamba F55 128k Input Voltage: 3~6S Lipo (12.6V~25.2V) Max Continuous Current: 55A Max Burst Current: 65A  BEC: No Target：BLHeli_32 MAMBA F55_128K Protocol: Dshot300/600/1200 PWM Range: 24~128K TVS Protection: Yes Mounting Pattern: 30x30 M3 Includes 1x Diatone Mamba MK4 F722 APP F55_128k 3-6S 30x30 Stack/Combo (F722 FC / 55A 128k 32bit 4in1 ESC) Wiring Diagram

Show More Show Less
