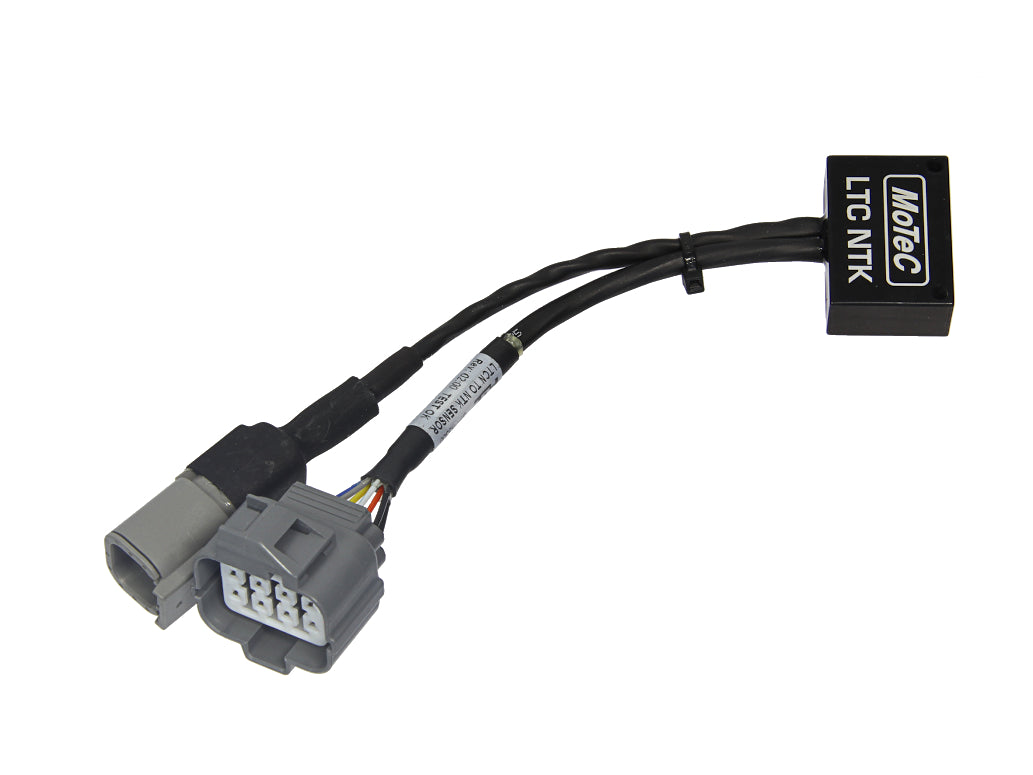

MoTeC LTC (Lambda-to-CAN) Module

MoTeC’s Lambda to CAN (LTC NTK) modules monitor, control and diagnose NTK Lambda sensors, transmitting readings on a CAN bus. When multiple LTC NTKs are used, up to 32 Lambda sensors can be configured on a single CAN bus, allowing an ECU or logging device to simultaneously monitor numerous Lambda sensors. Sensor compatibility (Please select your required sensor type from the drop down list) NTK, 5 wire sensor Bosch LSU 4.9 BASIC SPECIFICATIONS Inputs/Outputs 1 x NTK Lambda sensor (MoTeC #57007) Power supply voltage 11 V – 16 V Power supply current 110 mA typical plus the sensor heater current (heater current is typically 0.5 A – 1 A and up to 2 A on startup) Communications  1 x CAN at 1 Mbit/sec Connectors 1 x 4 pin male DTM connector (power/CAN) 1 x mating connector for Lambda Sesnor (Each if applicable) Physical Dimensions 38 x 26 x 14 mm excluding wiring looms and connectors Weight 62 grams Maximum ambient temperature 100 °C Sensors NOT included.
