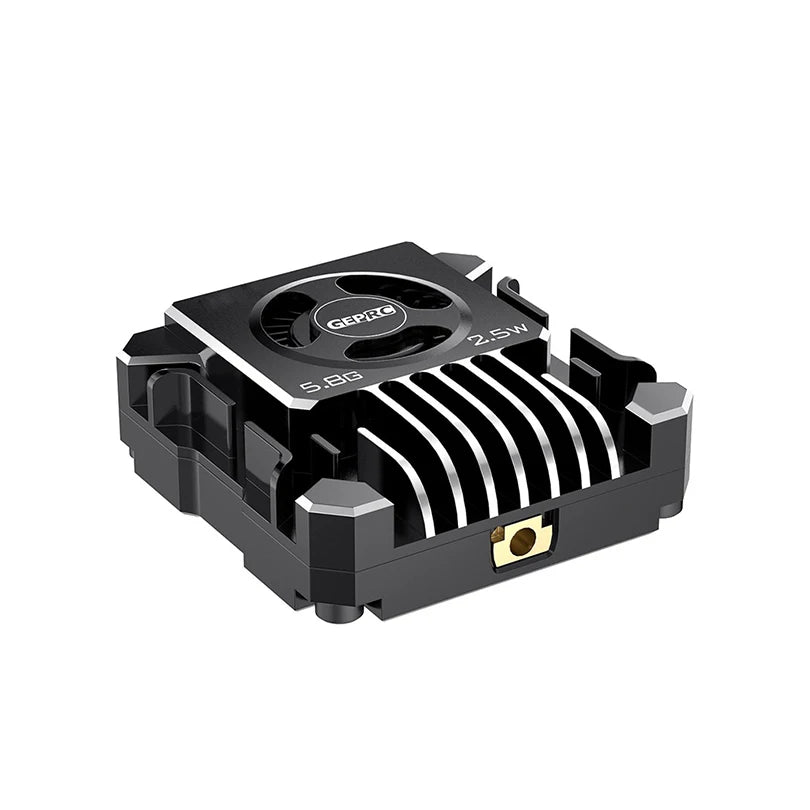

GEPRC MATEN-5.8G 2.5W VTX PRO 72CH Aluminum Alloy Numerical Control Shell Auxiliary Heat Dissipation For Drone Quadcopter FPV
GEPRC MATEN-5.8G 2.5W VTX PRO Aluminum Alloy Numerical Control Shell Auxiliary Heat Dissipation Drones Accessories Model：GEPRC-MATEN 5.8G 2.5W VTX PRO Size：36.3×36.3×12.6mm Mounting hole：20x20mm(M2)、30.5×30.5mm(M2) Output power：25mW/200mW/600mW/1600mW/2500mW/Pit mode Frequency：5.8G Channel：72CH Input voltage：DC7-36V（2-8S Battery） Output voltage：5V@600mA Protocol：IRC Tramp Antenna interface：MMCX Cable interface：SH1.0 6pin Video format：PAL/NTSC Microphone: Built in microphone Weight：17g Feature Five levels of adjustable power, up to 2500mW, suitable for long distance flight Selected high strength aluminum alloy CNC shell, auxiliary heat dissipation The built-in micro turbofan actively dissipates heat Wide voltage input, Supports 7V-36V Voltage input. One function buttons, three indicator lights, easy to control. VTX control protocol is IRC Tramp,supports OSD parameter adjustment. Temperature control protection function that can prevent high temperature burning VTX built in microphone,Real-time transmission of Drone’s sounds. supports 72 transmission channels Support 20*20mm and 30.5*30.5mm installation hole position Includes 1 x MATEN-5.8G 2.5W VTX PRO 1 x MMCX Copper tube antenna 1 x MMCX to SMA（Internal foramen）connector 1 x sh1.0 6P Connecting cable 6 x M2*5 screw 4 x M2*12 screw
