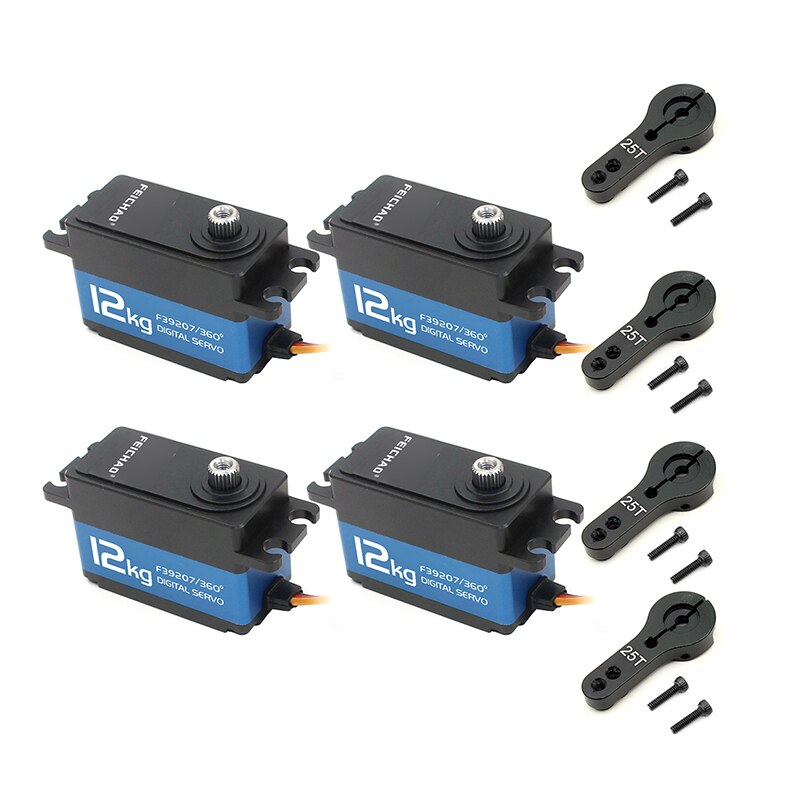

12kg Waterproof Servo Full Large Torque Metal Gear Digital Servo Low Profile for 1/10 RC Car 3racing SAKURA D4 CS Airplane Robot

  Waterproof 12kg Full Large Torque Metal Gear Digital Servo Low Profile for 1/10 RC Car 3racing SAKURA D4 CS Airplane Robot Arm   1.Apply Environmental Conditon No. ltem Specifcation 1.1 I Storage Temperature Range -30°C~80°C 1.2 Operating Temperature Range -25°C~-70C 2 Standard Test Environment No. ltem Specifcation 2.1 Temperature Range -25°C~70°C 2.2 Humidity Range 65%+10% 3.Mechanical Specification No. |Item Specifcation   Size 40.8*20.2*28.7mm 3.2 Weight 60g+5% 3.3 Gear type 6 Metal   3.4 Limit angle 360° 3.5 Bearing 2BB 3.6 Horm gear spline 25T :5.9mm 3.7 Horntype Plastic,POM 3.8 Case Aluminum alloy 3.9 Connectorwire 320mmt5mm 3.10 Motor Carbon brush motor 3.11 Splash water resistance |IP65 4.ElectricalSpecification No. Operatvoltage 48V 7.2V 4.1 Idlecurrent |mA mA 4.2 No load speed 0.12sec/60° 0.09sec/60° 4.3 Runnig current 210mA 260mA 4.4 Peak stall torque 11.5kg.cm 14.5kg.cm 4.5 Stallcurrent 2000mA+10% 2700mA+10% 4.6 Workingvoltagerange 4.8-7.2V 5. Control Specification No. Item Specifcation 5.1 Commandsignal Pulse width modification 5.2 Amplfier type Digital controler 5.3 Pulse width range 500~2500usec 5.4 Neutral position 1500usec 5.5 Running degree 180*+3*(when500~~2500usec) 5.6 Dead band width |5usec 5.7 Rotating direction Counterclockwise(when1000~2000usec)
