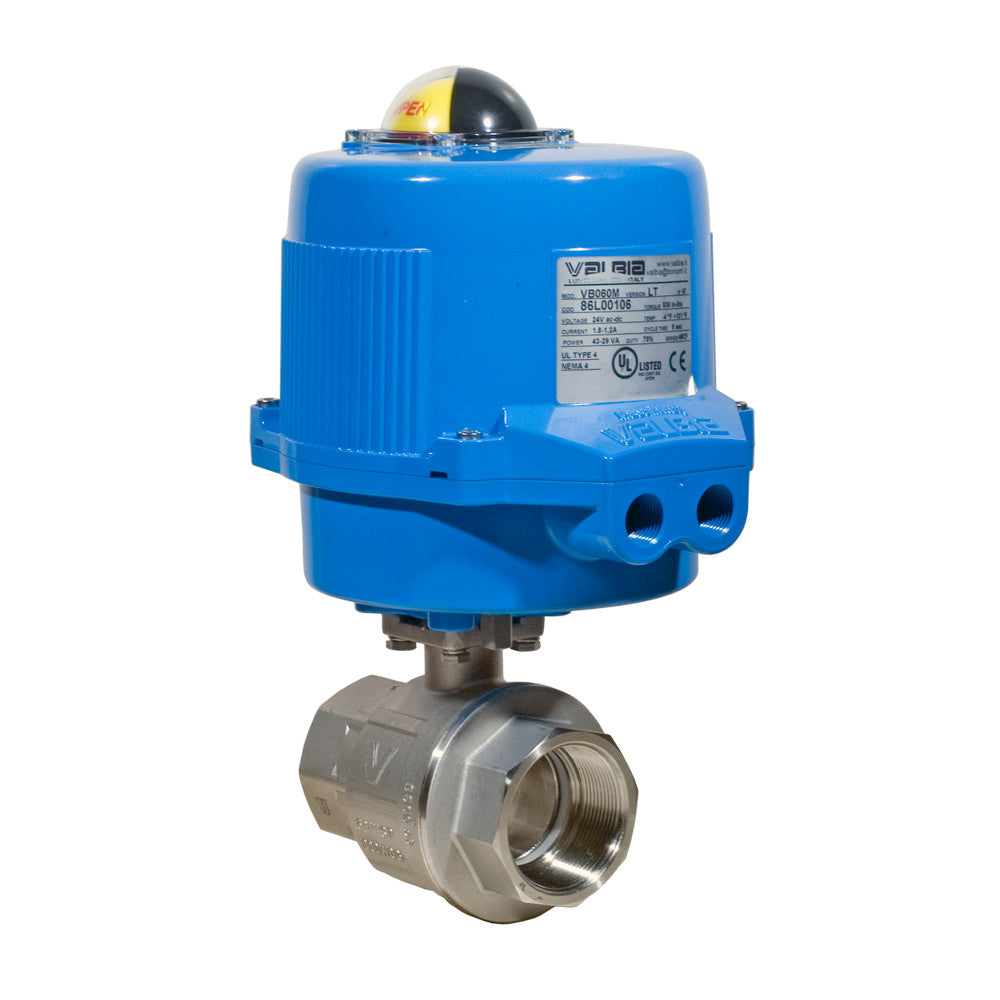

Bonomi M8E067 NPT Stainless Steel Ball Valve with Electric Actuator
shop.prmfiltration.com
Hardware / Plumbing

Bonomi M8E067 NPT Stainless Steel Ball Valve with Electric Actuator

$539.00
{{option.name}}: {{selected_options[option.position]}}
{{value_obj.value}}
Store Logo

PRM Filtration

View Store

Bonomi M8E067 Datasheet The Bonomi M8E067 valve is a Direct Mount, 2-way Stainless Steel, Full Port Ball Valve with Electric Actuator.Available in sizes ranging from 1/4 inch to 3 inches. Stainless Steel body with a stainless steel ball. Includes PTFE seat material with an O-ring backing allowing for low operating torque. The valve has a full port, a blowout proof stem along with an electric actuator. Features:Pressure Rating: 600PSI WOG - 150 WSP - 1/4 to 3Connection Size: 1/4", 3/8", 1/2", 3/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 3"Maximum Pressure: 1000 psi / 150 psi steamConnection Type: Threaded (FNPT x FNPT)Actuator: ElectricBody: Stainless SteelSeat: PTFEBall: Stainless Steel (CF8M)Max Process Temperature: -4° F to 366° FStem: Stainless Steel Blowout Proof Options: Voltage: 24V or 100-240VAC Electric Actuator: UL Approved Standard Metal Electric Actuator With Fail Safe Battery Backup With 4-20mA Positioning With Fail Safe Battery Backup and 4-20mA Positioning
