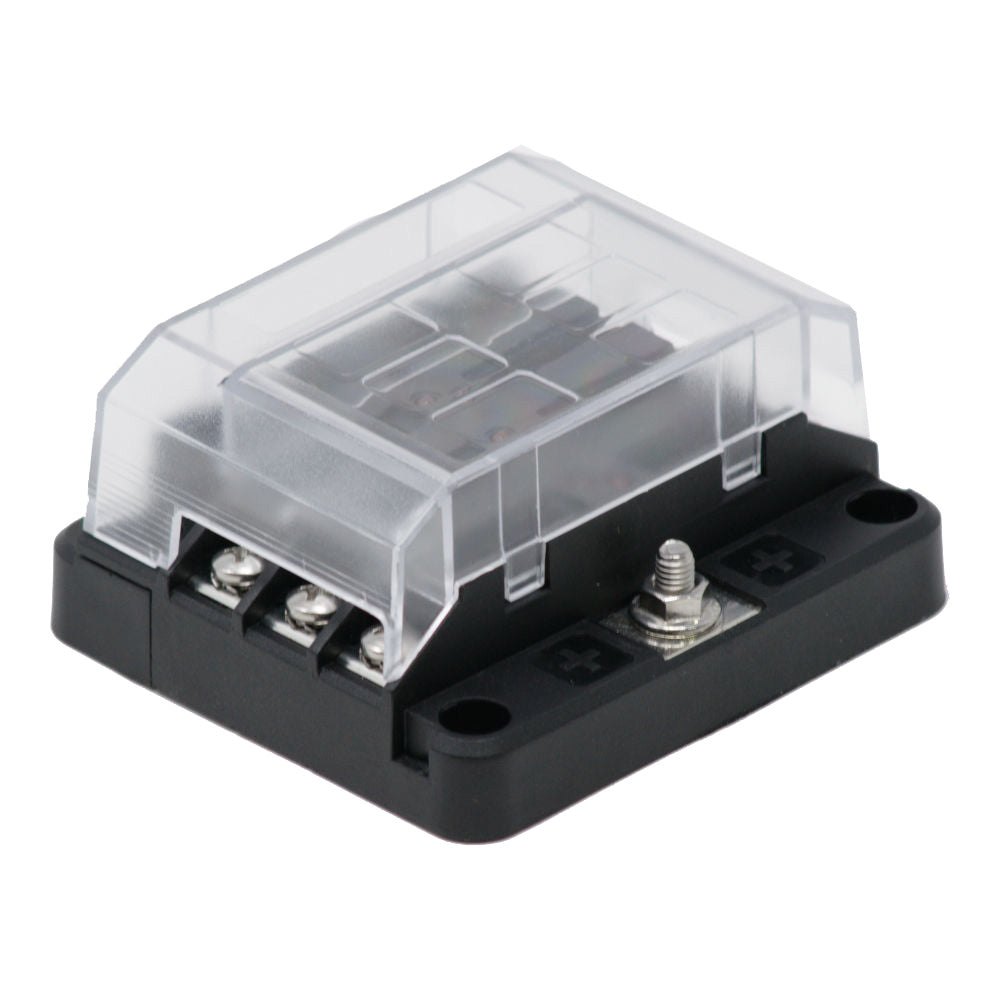

Egis RT Fuse Block 6 Position w/LED Indication

RT Fuse Block 6 Position with LED IndicationThis 6-position fuse block has a modular design that can produce seven (7) unique configurations from Egis 8028 & 8030 and reduce part numbers to stock for all build requirements. Also, this fuse block has an LED indication.Applications: Blown fuse LEDs speed up the correction of system faults and improve the ability to remotely diagnose customer issues. Harsh environment design with stainless steel self-locking hardware and optional weather-proof labels in standard or customized options. Features: Bullet-proof construction - designed with high-temperature materials and stainless steel self-locking hardware allows mounting anywhere on the vehicle Protects branch circuits by accepting ATO style fuses ranging from 1 through 40 Amps Supports SAE circuit protection standards for thermal/short circuit events Specifications: Maximum Current (Entire Block) Amps: 10 Maximum Current (Per Circuit) Amps: 30 Max Output Wire Size: #10 AWG Voltage Range VDC: 0-36 Number of Fuse Positions: 6 Compatible Fuse Types: ATO / ATC / ATF Focal Features:Spare Fuse LocationsTwo locations per 6 circuits for spare or test resistors to reduce siren volumes during evaluation.Stainless Steel Self-Locking Hardware100 % non-ferrous corrosion-resistant materials. All attachment screws and nuts are self-locking.LED Fuse DiagnosticsBlown fuse LED indication for each output circuit provides a clear indication of faulty circuits and eases troubleshooting issues remotely.Cover/ Label RecessesProtects terminal studs and cable terminal edges from inadvertent shorts to each other or ground. Specifications:Type: Fuse BlocksQuick Guide (pdf).embed-container { position: relative; padding-bottom: 56.25%; height: 0; overflow: hidden; max-width: 100%; } .embed-container iframe, .embed-container object, .embed-container embed { position: absolute; top: 0; left: 0; width: 100%; height: 100%; }
