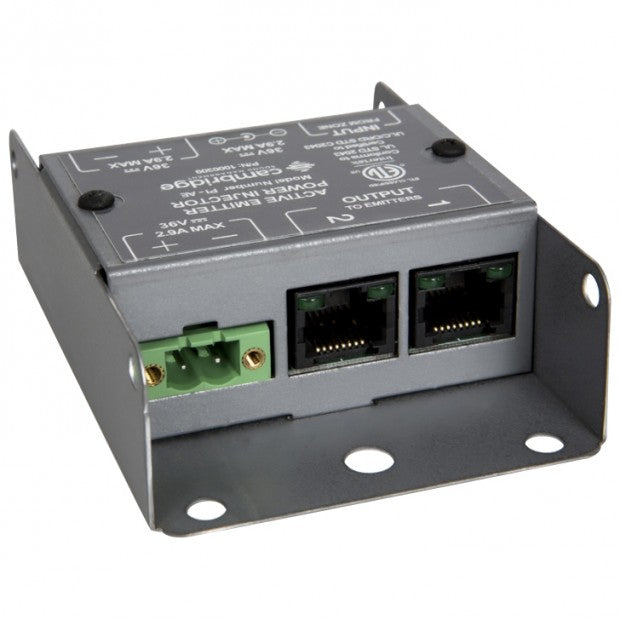

Active Emitter Power Injector

The Active Emitter Power Injector is used to combine DC power from the Active Emitter Power Supply with the audio signal from the Qt X Control Module in order to provide a powered “signal” for the Qt® Active Emitters. There are two output ports that each support up to 25 Qt Active Emitters. The Active Emitter Power Injector can be placed in the plenum or headend mounted. It fits inside a standard 4x4 electrical enclosure. * Active Emitter Power Supply and Active Emitter Power Injector required for installation FEATURES Combines DC power from the Active Emitter Power Supply and signal from a Qt X Control Module to provide a powered signal for up to 50 Qt Active Emitters Provides two output ports each supporting up to 25 Qt Active Emitters Plenum or headend mounted SPECIFICATIONS  Input Signal Connector: RJ45 Masking/audio “signal” input voltage: 9VAC Maximum “Signal + Power” output 1 & 2 connectors: RJ45 x 2 Nominal DC Input Voltage: 36 VDC Maximum DC i
