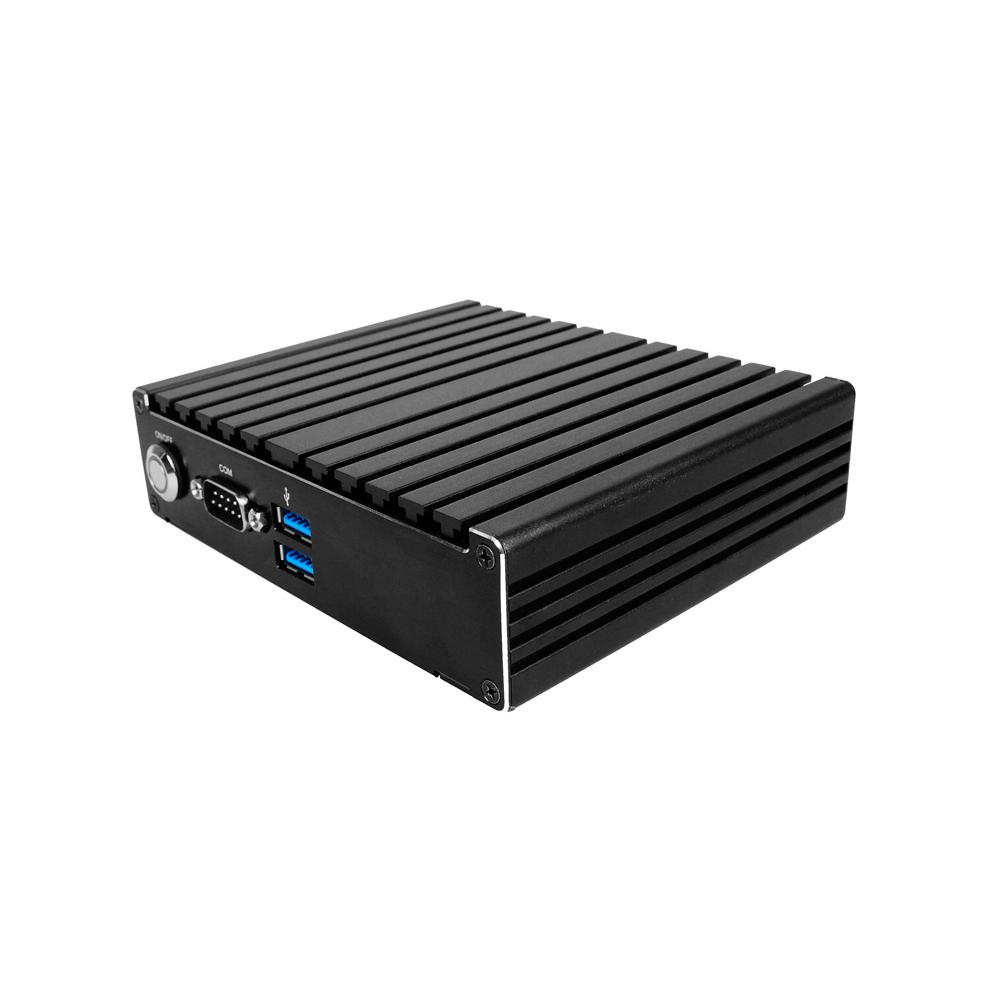

Edge AI Inference Solution with TensorFlow Lite - MultiDisplay

Product ID AIOT-JBC420 CPU Intel Celeron N3160 1.6 - 2.24GHz Quad Core 4 Cores / 4 Threads 6W TDP, 2MB Cache, 64-bit Chipset SoC Memory Includes 2GB DDR3 SODIMM Memory 1 x 204-pin DDR3L SODIMM slot Maximum 8GB capacity 1333MHz Minimum Requires 1.35V Low Voltage Video Intel HD Graphics 400 320 - 640 MHz HDMI Max Resolution: 1920x1080 @ 60Hz DisplayPort Max Resolution: 3840x2160 @ 30Hz Supports 3 Independent Displays Audio Realtek ALC662VD Storage Technology mSATA: SATA 6.0 Gb/s Connectivity 2 x Intel i211-AT GbE Expansion Slots 1 x Mini PCI-E slot (half sized, Occupied) SIM card reader (no modem function) Rear Panel I/O 1 x 12V DC-IN 1 x Audio Out 2 x Wireless Connectors 2 x HDMI 1 x DisplayPort 2 x USB 3.0 2 x RJ45 LAN Front Panel I/O 1 x Power Button 1 x Power LED 1 x COM Port (RS232/422/485) 2 x USB 3.0 Drive Support Includes 60GB mSATA SSD 1 x mSATA slot Power Supply On-Board 12V DC-IN (Internal) 40W 12V AC Adapter (External)
