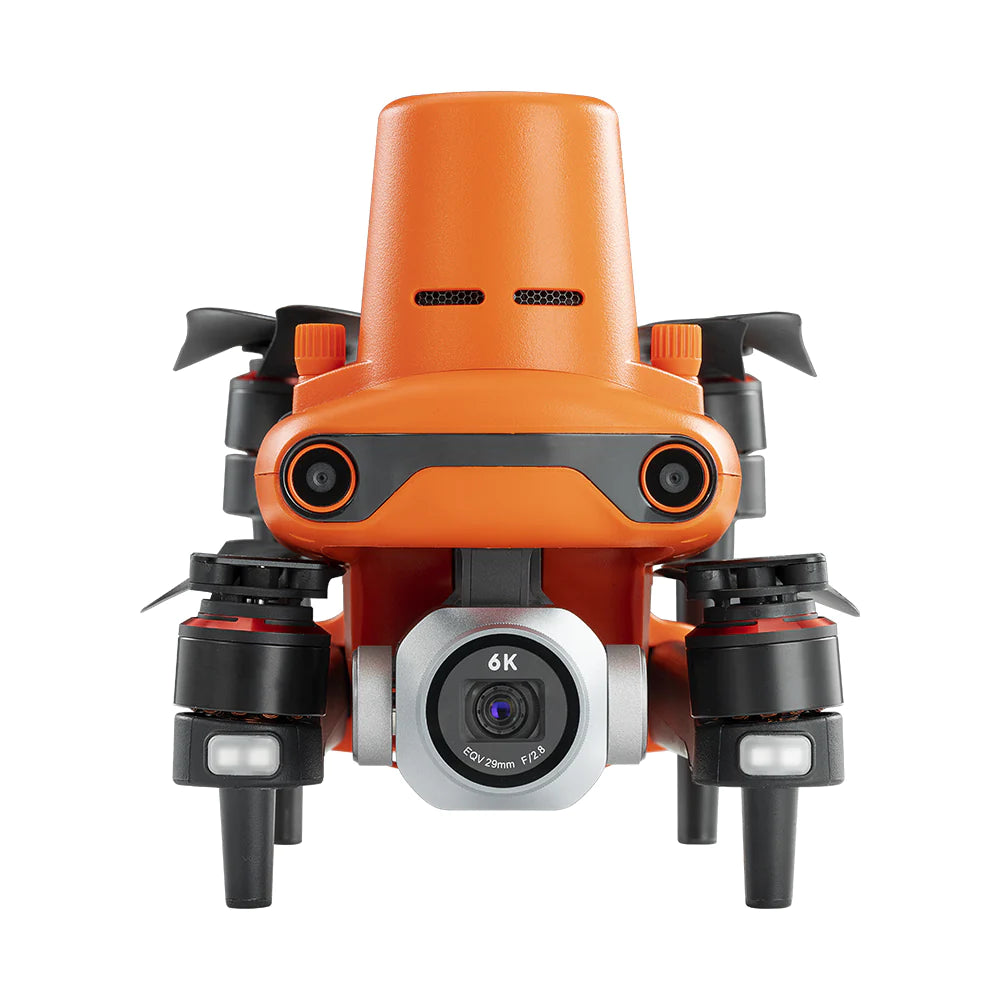

Autel Robotics EVO II RTK V3
The Autel Robotics EVO II RTK Series V3 is a game-changer in the world of drone technology. With unrivaled accuracy and control, this RTK drone takes mapping and surveying to new heights, providing centimeter-level positioning for precise and reliable data acquisition. Key Features Centimeter-Level Positioning The EVO II RTK Series V3 is equipped with a brand-new RTK module, offering real-time centimeter-level positioning data and supporting Post-Processing Kinematic (PPK). Achieve accuracy and stability in complex environments using the RTK base station and NTRIP RTK network. No GCP Required Connect to an NTRIP network, eliminating the need for Ground Control Points (GCPs) and providing centimeter-grade accuracy effortlessly. Autel Explorer for Mapping The Explorer app simplifies mapping missions with multi-NTRIP profile saving, photo replication, and the ability to create and save multiple NTRIP profiles for different locations. 3rd Party Base Station Support Supports all NTRIP-compatible base stations, ensuring compatibility and flexibility for various mapping projects. Autel Explorer for Mapping: The Explorer app simplifies mapping missions with multi-NTRIP profile saving, photo replication, and the ability to create and save multiple NTRIP profiles for different locations. 5. Advanced Feature Sets: Experience complete manual control over camera settings, create rectangular or polygon missions, and benefit from non-stop turning on corners for optimized time and battery usage. Capture Every Detail with EVO II Pro RTK V3: 1-Inch Ultra-Sensitive Sensor: The EVO II Pro RTK V3 boasts a new 1-inch 6K CMOS image sensor with 20 megapixels, offering high dynamic range and powerful low-light performance for detailed and clear datasets. Adjustable Aperture (f/2.8 ~ f/11): Adapt to changing lighting conditions with adjustable aperture settings, providing the pilot with greater control over shutter speed. Zoom In for Details: Utilize the 4x lossless zoom and 16x digital zoom for precise focus on critical areas, optimizing datasets for post-processing software applications. Multiple Color Palettes and 30Hz Refresh Rate: Choose from multiple color palettes for enhanced thermal imaging and experience a 30Hz refresh rate for accurate and detailed 3D thermal maps. SkyLink 2.0 Video Transmission: Built into the EVO II Series V3 chipset, SkyLink 2.0 ensures reliable video transmission, allowing operations at a distance of over 9 miles. 360° Obstacle Avoidance: Equipped with 19 groups of sensors, including 12 visual sensors, ultrasound, and IMUs, for real-time path planning and obstacle avoidance. Portable and Easy to Use: Compact Design: The EVO II RTK Series V3 folds up for easy transport and deployment, making it the ideal companion for on-the-go professionals. Trouble-Free Daily Workflows: Set up and take off in just 45 seconds, streamlining your daily mapping operations. Safe and Sturdy: 27mph Max Wind Resistance: With a smaller cross-section and powerful motors, the EVO II RTK Series V3 offers greater stability and control even in challenging windy conditions. No Fly Zones and 38 Minutes Flight Time: Enjoy the freedom to fly without restrictions, with a remarkable 38 minutes of flight time for extended coverage and missions. Smart Controller V3: High-Brightness Screen: The Autel Smart Controller V3 features a 7.9-inch, 2000 nits high-brightness screen, ensuring clear visibility even under direct sunlight. Long Transmission Range: Experience long-distance operations with a transmission range of over 9 miles, thanks to SkyLink 2.0 technology. All-Weather Performance: With an IP43 resistance rating, the Smart Controller V3 performs seamlessly in various weather conditions. Take your mapping and surveying endeavors to the next level with the Autel Robotics EVO II RTK Series V3 RTK Drone – where precision meets innovation. Fly further, capture details, and elevate your workflow with Autel's advanced technology. Tech Specifications AIRCRAFT Weight (with propeller and battery) 2.75 lbs (1250g) EVO II DUAL 640T RTK V32.73 lbs (1237g) EVO II PRO RTK V3 Size 230*130*143mm（folded）260*355*143mm（unfolded） Max flight time 36 min (Windless environment) Operating temperature range 14-104°F (-10-40°C) Wind Resistance Force 8 wind Hovering accuracy When RTK is enabled and RTK works normally:Vertical: ± 0.1mHorizontal: ± 0.1m RTK is not enabled:Vertical:±0.1m (with visual positioning in normal operation)±0.5m (with GNSS in normal operation)Horizontal:±0.3m (with visual positioning in normal operation)±1.5m (with GNSS in normal operation) GNSS Single frequency high sensitivity GNSS GPS + BeiDou+Galileo (Asian Region)GPS + GLONASS + Galileo (Other Region) Multi-frequency multi-system high-precision RTK GNSS Frequency points used:GPS: L1/L2GLONASS: L1/L2BeiDou: B1/B2Galileo:E1/E5 First positioning time: <50s Positioning accuracy:Vertical: 1.5cm + 1ppm* (RMS)Horizontal: 1cm + 1ppm (RMS)*1ppm means that the error increases by 1mm for every 1km of the aircraft moving RC AND IMAGE TRANSMISSION Max Transmission Distance (unobstructed, free of interference) FCC：15kmCE：8km Display screen 2048x1536 60fps Operating time ~3 hours (Max. Brightness)~4.5 hours (50% Brightness) Charging time 120 minutes Internal Storage ROM 128GB EVO II PRO RTK V3 CAMERA Sensor 1 inch CMOS; 20M pixels Lens FOV: 82°35 mm format equivalent focal length: 29 mmAperture: f/2.8 - f/11Focus range: 0.5 m to infinity ISO range Video: 100-44000Photo: 100-6400 Zoom 1-16x (up to 3x lossless zoom) Maximum photo size 5472*3648 (3:2)5472*3076 (16:9)3840*2160 (16:9) Photo mode 5472x3076P30/P25/P243840x2160P60/P50/P48/P30/P25/P242720x1528P60/P50/P48/P30/P25/P241920x1080P60/P50/P48/P30/P25/P24 EVO II DUAL 640T RTK V3 VISUAL CAMERA Sensor 1/1.28"(0.8") CMOS; 50M effective pixels Lens FOV: 85°35 mm format equivalent focal length: 23 mmAperture: f/1.9Focus range: 0.5 m to infinity (with auto focus) ISO range Video: 100-64000Photos: 100-6400 Zoom 1-16x (up to 4x lossless zoom) Maximum photo size 8192*6144（4:3）4096*3072（4:3）3840x2160（16:9） Video resolution 3840x2160P60/P50/P48/P30/P25/P242720x1528P60/P50/P48/P30/P25/P241920x1080P60/P50/P48/P30/P25/P24 EVO II DUAL 640T RTK V3 THERMAL CAMERA Lens FOV H33°V26° Focal length 13mm Zoom 1-16x Wavelength range 8~14μm Temperature measurement accuracy ±3℃ or ±3% of reading (whichever is greater)@Environmental temperature-20℃~60℃ Accurate temperaturemeasurement distance 2-20 meters Video resolution 640x512@30fps Photo resolution Infrared mode: 640*512Picture-in-picture mode: 1920*1080, 1280*720
