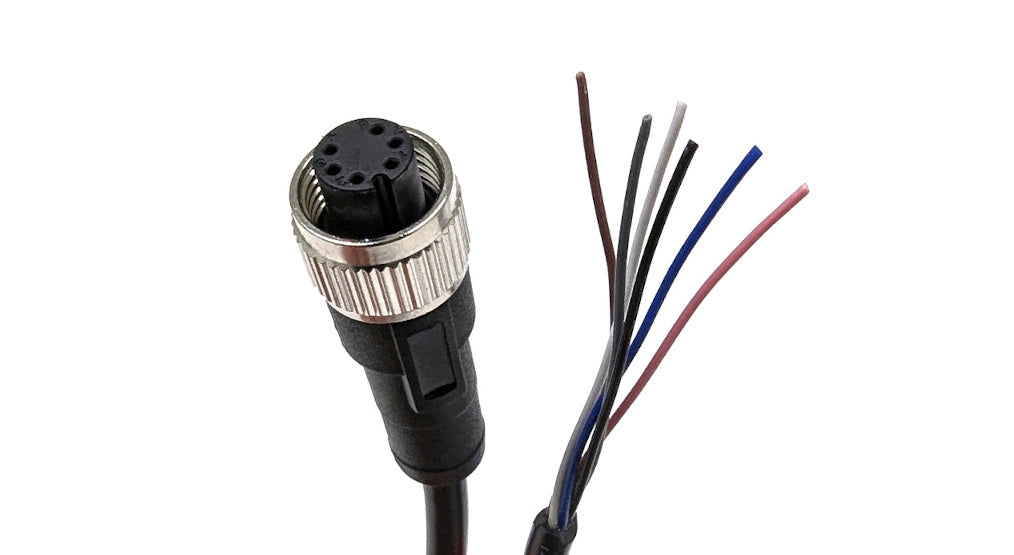

Survey3 PRO Cable - m12(F) to Wires (5.0m)
$50.00
{{option.name}}:
{{selected_options[option.position]}}
{{value_obj.value}}
Use this m12 female (F) cable to make your own custom cables. Refer to the wire color and signal names above. All Survey3 PRO cameras contain a 6 position (pin) m12 industrial IP67 male (M) plug. The port on the camera is male (M) and the connecting cable is female (F). The m12 pin assignment is as follows: Pin Position Wire Color Signal Name 1 Brown Power 5V 2 White Ground (Power) 3 Blue GNSS (GPS) RX 4 Black Trigger (PWM) 6 Grey Exposure (Strobe) 7 Pink Ground (Signal) Here is a drawing showing pin position of the camera's m12 male (M) port:
