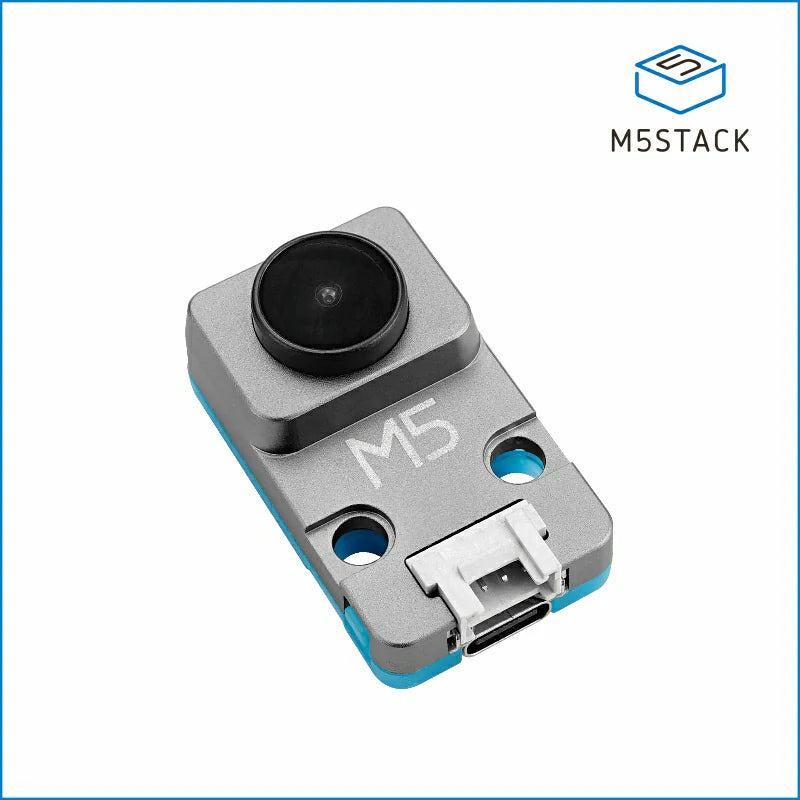

UnitV K210 AI Camera M12 Version (OV7740)

Description UNIT-V M12 is an AI camera unit with M12 lens specifications and K210 processor, which integrates dual-core 64-bit RISC-V CPU and neural network processor edge computing system-on-chip, it equippes with M12 optical lens OV7740 wide-angle camera module (can replace other M12 lenses), the body is equipped with two programmable buttons and TF card expansion slot. Its bottom provides an HY2.0-4P interface and a TYPE-C interface for data connection to the controller. The UNIT-V M12 AI camera is very small, it is suitable for embedding in various devices, with machine vision processing capabilities, supporting a variety of image recognition capabilities (such as real-time acquisition of the size and coordinates of the detected target Real-time acquisition of the type of detected target), and it can perform convolutional neural network calculations, which is a low-threshold machine vision embedded solution. Features Dual-Core 64-bit RISC-V RV64IMAFDC (RV64GC) CPU / 400Mhz(Normal) Dual Independent Double Precision FPU 8MiB 64bit width On-Chip SRAM Neural Network Processor(KPU) / 0.8Tops Field-Programmable IO Array (FPIOA) AES, SHA256 Accelerator Direct Memory Access Controller (DMAC) Micropython Support Firmware encryption support On-board Hardware resources: Flash: 16M Camera :OV7740 Button: button * 2 External storage: TF card/Micro SD Interface: HY2.0/compatible GROVE Includes 1x Unit V M12 1x 20cm 4P Grove Cable 1x 100cm USB-C Cable Applications Face recognition/detection Object detection/classification Obtaining size and coordinates of the target in real-time Obtaining the type of detected target in real-time Shape recognition Video recorder Specification Resources Parameters Kendryte K210 Dual-Core 64-bit RISC-V RV64IMAFDC (RV64GC) CPU / 400Mhz(Normal) SRAM 8MiB Flash 16M Input voltage 5V @ 500mA KPU Neural network parameter size 5.5MiB - 5.9MiB Interface TypeC x 1, GROVE(I2C+I/0+UART) x 1 Button Custom button x 2 Image Sensor M12 wide-angle lens ov7740 FOV 80° External storage TF Card/Micro SD shell material Plastic ( PC )+CNC (ALUMINIUM) Product Size 40* 24* 16.4mm Package Size 70* 50* 30mm Product Weight 13.9g Package Weight 52.6g LEARN AND DOCUMENTS DOCUMENTS
