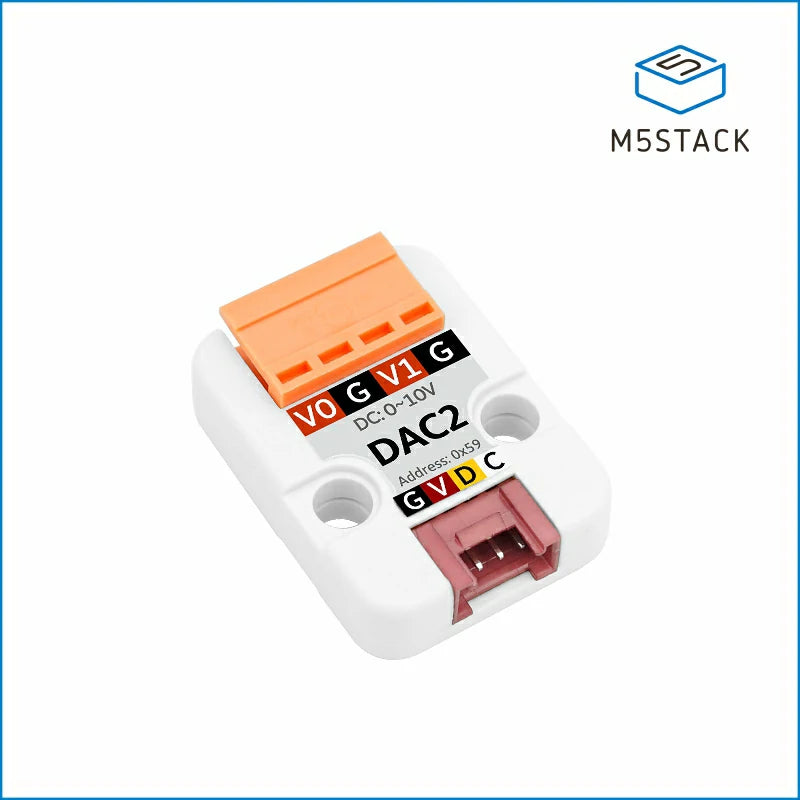

DAC 2 I2C Unit (GP8413)

Description DAC2 Unit is an I2C digital-to-analog signal conversion unit. It utilizes the GP8413 solution, which provides high precision and accuracy in its performance. This chip can linearly convert a 15-bit digital value into two independent analog voltages of 0-5V or 0-10V. The output voltage error is only 0.2%, and it achieves linearity of up to 0.01%.In terms of scalability, the circuit design supports a 3-bit hardware address, allowing up to 8 devices to be connected and operated simultaneously. The DAC2 Unit also incorporates safety features such as output short-circuit protection. When there is a short circuit between the output pins and ground, it automatically enters a protection mode, ceasing the output to prevent damage.DAC2 Unit finds applications in various fields, including general signal conversion, motor speed control, LED dimming, inverters, power supplies, and industrial analog signal isolation. It provides a reliable solution for converting digital signals to analog, offering high precision, reliability, and expandability.Features I2C communication (default address 0x59) Supports multiple parallel connections Short-circuit protection High precision, small error Includes 1x DAC2 Unit 1x VH3.96-4P 1x Sticker Applications Universal signal conversion Motor speed regulation, LED dimming Inverter, power supply Industrial analog signal isolation Specification Resources Parameters DAC Chip GP8413 Rresolution Ratio 15Bit I2C Serial Communication 0x59 (default) Maximum Output Voltage 10V Output Voltage Error <0.2% Output Voltage Linearity error 0.01% Operating Temperature 0-40°C Product Size 32* 24* 10.2mm Package Size 136* 92* 13.7mm Product Weight 5g Package Weight 13.3g LEARN AND DOCUMENTS DOCUMENTS
