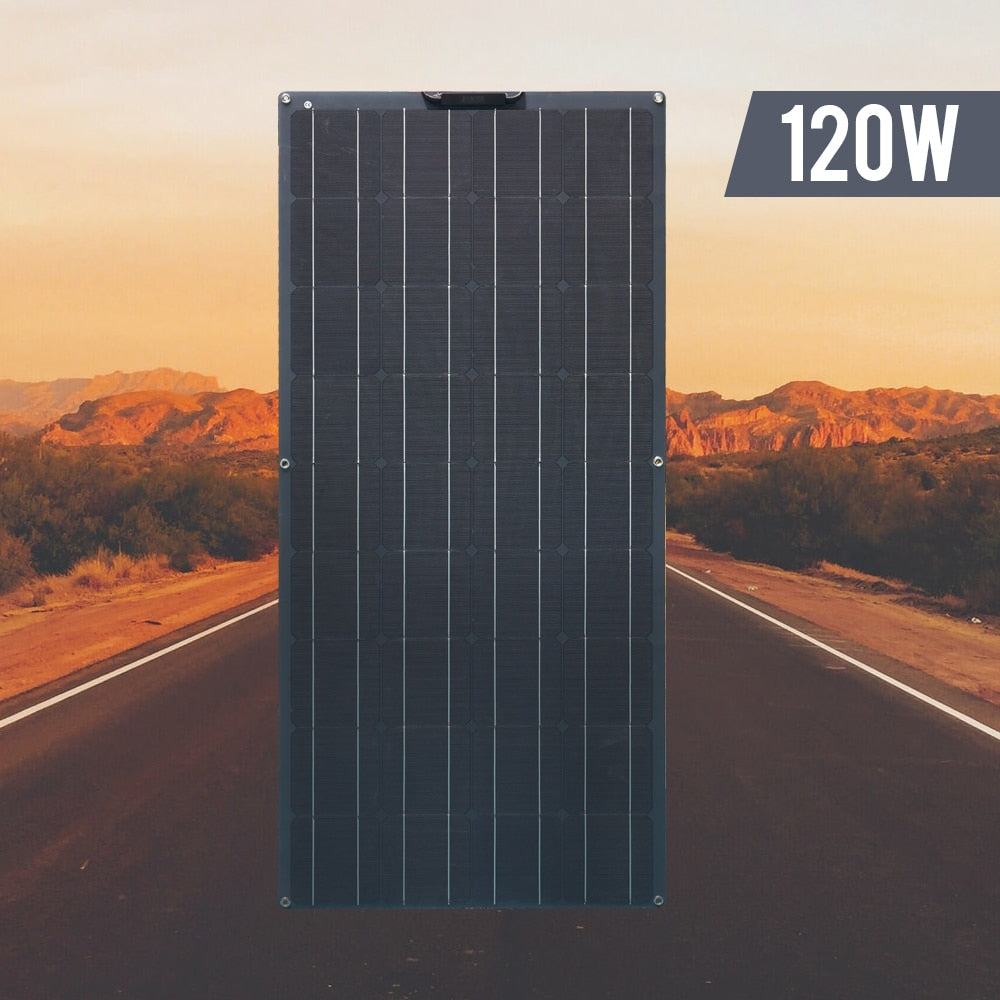

Solar Panel 12v Kit Flexible Solar Cell 120W 18V Module With Solar Controller Power for Battery Households Camping RVs Yacht Car

  120W 18V Flexible Solar Panel Solar Module Kit for 12V 24v Battery Households, Camping, RVs, Yachts   Specifications Maximum power(Pmax)                            120W Output tolerance                                         ± 3% Maximum system voltage                        700V DC Open circuit voltage(Voc)                         21.6V Short circuit current(Isc)                           6.8 A Maximum power voltage(Vmp)              18V Maximum power current(Imp)                6.5A Cell efficiency                                            21% Operating temperature（NOCT）           45±2℃ Temperature range                                    -40℃～+80℃ Number of cells                                          36pcs Weight                                                          2200g Size                                                              1170*540*3 mm Color                                                             Black Standard Test Conditions ： lrradiance 1000w/m^2，Temperature 25℃, AM=1.5     Package list 1 1、1pcs 120W  Flexible Solar Panel   Package list 2 120W Solar Panel Kit 1、1pcs 120W Solar Panel 2、1*10A Controller 3、1* 3 meter alligator clips 4、1* 3 meter pv cable   10A Charger Controller Batt voltage：12V/24V auto Charge current:10A Discharge current：10A USB output：5V/2A Self-consume：<10mA Operating temperature：-35~+60 ℃ Suitable for ：lead acid batteries AND lithium ions Build-in short-circuit protection,open-circuit protection,reverse   Alligator clips Model: 1*2.5mm Number of cores: single core multiple strands The maximum external diameter of the wire: 5.3 ± 0.2 (mm) Nominal cross section: 2.5 (mm) Uses: Photovoltaic power generation Core material: tinned copper wire Product Certification: TUV Voltage rating: 0.6/1KV Rated voltage: 1000V Length：3M   PV Cable Model: 1*2.5mm Number of cores: single core multiple strands The maximum external diameter of the wire: 5.3 ± 0.2 (mm) Nominal cross section: 2.5 (mm) Uses: Photovoltaic power generation Core material: tinned copper wire Product Certification: TUV Voltage rating: 0.6/1KV Rated voltage: 1000V Length：3M   Features: a. Select high-efficiency monocrystalline silicon solar cells, the power generation efficiency is about 1.2 times that of conventional polysilicon, and the overall area is smaller at the same power. b. Using the latest component packaging technology, thinner, lighter, softer and longer life. c. The surface is made of PET and treated with a special process, which is more wear-resistant and improves the absorption efficiency of sunlight. d. With high light transmittance, safe and reliable, not afraid of high temperature, no danger of burning or explosion. e. The junction box adopts IP67 waterproof design, contains bypass diode, and the circuit adopts overcharge and reverse current protection design. f. Use photovoltaic special cable and MC4 connector, outdoor use is safe, waterproof, high temperature resistance and weather resistance. MC4 connector is easy to use, plug and play. g. This product is a solar module. It is recommended to be used with controllers and batteries. It can be used in various scenarios such as households, camping, RVs, yachts, street lights and solar power stations.   Notes for use: a. This product must not come into contact with highly corrosive substances. b. It is strictly forbidden to modify, disassemble, drop, and hit the junction box and products by yourself, avoid stepping on the surface and scratching the surface with hard objects during use. c. A large number of scratches or dirt on the surface of the solar panel may cause the solar cell module to be inefficient, and in severe cases may cause burnout. d. The suitable ambient temperature range of this product: -20 ° C-80 ° C, please do not exceed this range. e. The solar panel must be installed in an area with good sunlight and no shadow. The long-term work of the solar cell module in the sun with shadow may have the risk of burning. f. It is forbidden to connect the positive and negative poles of the product together, and it is forbidden to put the product into water or fire, otherwise it will damage the product. g. The overall power of the photovoltaic module must be less than the rated power of the controller (rated voltage × rated current). It is strictly prohibited to overload the controller. h. The total voltage of the photovoltaic module connected to the controller must be within the photovoltaic input voltage range of the controller. i. The inverter can only be connected to the battery, not directly to the controller.
