Fluke i3000S FLEX-36 AC Current Probe (item no. 2584901)
laserman.com.au

Fluke i3000S FLEX-36 AC Current Probe (item no. 2584901)

$1,768.00
{{option.name}}: {{selected_options[option.position]}}
{{value_obj.value}}
Store Logo

Laserman

View Store

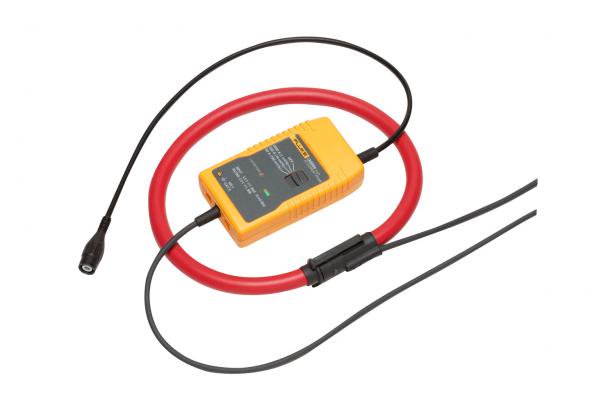

(item no. 2584901) Product Overview The flexible and lightweight measuring head allows quick and easy installation in hard to reach areas. Features Three Ranges: 30A, 300A, and 3000A with 1, 10, or 100 mV/A output Ideal for current measurement on thick and hard to reach conductors without breaking the circuit Maximum conductor diameter 178 mm (7 in.) CAT III 600 V safety rating Also available in pack of 4 for use in Power Quality Analyzers. Click here for more info.   Specifications: Fluke i3000s Flex-36 AC Current Clamp, 915 mm (36 in.) Electrical Specification Current ranges 30 A 300 A 3000 A AC rms Output sensitivity (AC-coupled) 100 mV 10 mV 1mV per A Load impedance 100 kΩ minimum Accuracy at +25°C: ±1% of range (45 Hz to 65 Hz) Linearity 10% to 100% of range: ±0.2% of reading Noise 8 mV AC rms (30 A) 2 mV AC rms (300 A, 3000 A) Frequency range 10 Hz to 50 kHz (-3 dB) Phase error < ±1° (45 Hz to 65 Hz) ±10° (at 20 kHz) Position
