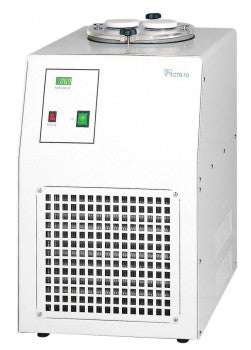

Jeio Tech CTB Cold Trap Bath
Overview Effective capture of moisture or condensate. Also useful as quick cooling baths.Models: CTB-10 Performance Temperature control down to ambient to -40℃. Built-in dissolving system to easily remove ice or solid matter stuck on the bath. Convenience LED temperature display. Easy installation and maintenance of glass traps. (two glass traps provided) Quick-release front grill for easy cleaning of the condenser. Compact size and silent operation. Durable stainless steel bath. Transparent acrylic lids on top of the glass trap to check condensate level in the trap. Safety Complete safety protection system with warning alarms. - Over-temperature, over-current protection. Key Attributes Type Specialty Baths Incubation No Refrigeration Yes Temp Range (°C) -40 to Ambient Capacity (L) 4.8 Circulation External Brand Jeio Tech MaxFlow Rate (l/min) N/A Temp Stability (°C) N/A Timer No Alarms Yes Digital or Mechanical Digital Data connection No Tank Material Stainless Sample Agitation N/A Media Racks Available N/A Warranty (years) 1 (2 years after submission of warranty registration card) Weight (lb) 101.4 Manufacturer Specifications Model CTB-10 Temperature range (℃ / ℉) Down to -40 / -40 Material Bath external Stainless steel, 1.2t, Double painted & baked Bath up desk Stainless steel, 1.5t Insulation Polyurethane foam (30mm) Refrigerator 1/2 HP, R-404A (LBP) Dimension Volume (L / cu ft) 4.8 / 0.17 Bath (Ø×H, mm / inch) 210×204 / 8.3×8 Glass trap (Ø×H, mm / inch) 600×262 / 2.4×103 Exterior (W×D×H) (mm / inch) 360×465×555 / 14.1×18.3×21.9 Net weight (kg / lbs) 46 / 101.4 Electrical requirements (230V, 60Hz) 4.5 A Cat. No. AAH62011K
