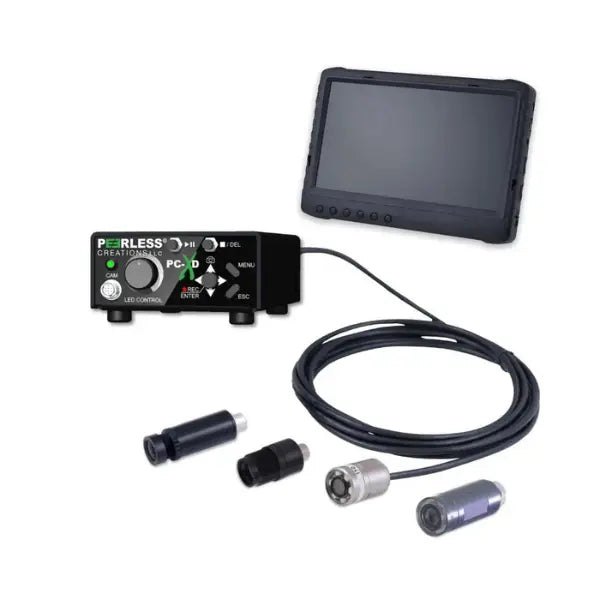

Peerless PC-XD Micro Modular Camera System
Details The Peerless PX-HD series is a micro-modular camera system that provides a high-definition image from a compact, configurable camera. The PC-XD can be used at much longer cable lengths than the Peerless PC-HD Micro Modular Camera System. It can be used as a standalone remote vision inspection (RVI) product or easily integrated into various OEM configurations. The HD resolution 1/4.4" CMOS sensor has a 1080p30 and is easily adaptable with various lens types. The remote, split-head camera style allows for long-distance placement from the Camera Control Unit (CCU), with cable lengths up to 60 meters. The CCU is available in different formats, such as a typical desktop configuration or upgrading to a Full HD 7" portable display with an 8-hour battery life. It comes in an IP67 enclosure, waterproof to the entire cable length. The Peerless Micro Modular Camera System is an ideal HD replacement for legacy SD Micro Cameras such as the ELMO MN43H, ELMO MP50H, Toshiba IK-M44H, and Toshiba IK-M51H. Specifications PC-XD15 15mm Camera Specifications Image Sensor 1/4.4" Color CMOS Effective Image Area 3.6mm x 2.03mm Effective Pixel Array 1284 H x 724 V Pixel Size 2.8µm x 2.8µm Signal / Noise Ratio >43.1 dB Back Light Compensation Auto White Balance Auto Min. Illumination .001 lx Wide Dynamic Range Auto WDR Lens Mount M12 Cable Lengths 3m-60m Dimensions 15 mm diameter x 39 mm length PC-XD17 17mm Camera Specifications Image Sensor 1/4.4" Color CMOS Effective Image Area 3.6mm x 2.03mm Effective Pixel Array 1284 H x 724 V Pixel Size 2.8µm x 2.8µm Signal / Noise Ratio >43.1 dB Back Light Compensation Auto White Balance Auto Min. Illumination .001 lx Wide Dynamic Range Auto WDR Lens Mount M15.5 Cable Lengths 3m-60m Dimensions 17 mm diameter x 39 mm length PC-HD19 19 mm Camera Specifications Image Sensor 1/4.4" Color CMOS Effective Image Area 3.6mm x 2.03mm Effective Pixel Array 1284 H x 724 V Pixel Size 2.8µm x 2.8µm Signal / Noise Ratio >43.1 dB Back Light Compensation Auto White Balance Auto Min. Illumination .001 lx Wide Dynamic Range Auto WDR Lens Mount Proprietary Cable Lengths 3m-60m Dimensions 19 mm diameter x 30 mm length PC-XD25 25mm Camera Specifications Image Sensor 1/2.8" Color HD CMOS Effective Image Area 12mm x 9.3mm Effective Pixel Array 1945 H x 1097 V Pixel Size 2.8µm x 2.8µm Signal / Noise Ratio >30 dB Back Light Compensation Auto White Balance Auto Min. Illumination .0001 lx/ F1.2 Wide Dynamic Range Auto WDR Lens Mount Proprietary Cable Lengths 3m-60m Dimensions 25 mm diameter x 70 mm length LED Illumination Yes Resolution 1080p Camera Control Unit Specifications Illumination Sensor PC-XDVR5: Yes PC-XDVR7: Yes PC-XDVRCU: No PC-XDVRIL: Yes, variable Data Storage PC-XDVR5: MicroSD Card 2 - 128GB PC-XDVR7: MicroSD Card 2 - 128GB PC-XDVRCU: Dual SD cards up to 512GB each PC-XDVRIL: Dual SD cards up to 512GB each Compression Format H.264/H.265 Recording Mode PC-XDVR5: Manual PC-XDVR7: Manual PC-XDVRCU: Power On/Manual/Detection/Timed Recording PC-XDVRIL: Power On/Manual/Detection/Timed Recording Signal / Noise Ratio PC-XDVR5: AVI PC-XDVR7: AVI PC-XDVRCU: MP4 (H.625+AAC) PC-XDVRIL: MP4 (H.625+AAC) Frame Rate 60fps Auto Overwrite Option to override Photo Format JPG/JPEG Image Resolution PC-XDVR5: 5MP, 3MP, 2MP, 1.3M, VGA PC-XDVR7: 5MP, 3MP, 2MP, 1.3M, VGA PC-XDVRCU: Up to 8MP PC-XDVRIL: Up to 8MP Snap a Photo PC-XDVR5: Yes PC-XDVR7: Yes PC-XDVRCU: Remote option only PC-XDVRIL: Remote option only HDMI Video Resolution PC-XDVR5: N/A PC-XDVR7: N/A PC-XDVRCU: 1280x720 and 1920x1080 for PC-XD25 only PC-XDVRIL: 1280x720 and 1920x1080 for PC-XD25 only CVBS Video Resolution PC-XDVR5: N/A PC-XDVR7: N/A PC-XDVRCU: 1280x720 and 1920x1080 for PC-XD25 only PC-XDVRIL: 1280x720 and 1920x1080 for PC-XD25 only Operating Temperature -30ºC~70ºC Power Supply PC-XDVR5: DC IN 12V 2A PC-XDVR7: DC IN 12V 2A PC-XDVRCU: 1280x720 and 1920x1080 for PC-XD25 only PC-XDVRIL: 1280x720 and 1920x1080 for PC-XD25 only System Language Chinese/English/German/Spanish/Polish/French ONLY FOR PC-XDVR5 & PC-XDVR7 Aspect Ratio 16:9 64GB Recording Time 24-64 hours Built-in Battery PC-XDVR5: Li-battery 4.5Ah PC-XDVR7: 7.0Ah Battery Working Time ≈ 4-6 hours Screen Size PC-XDVR5: 107mm W x 64mm H PC-XDVR7: 154mm W x 85mm H Screen Brightness 400 cd/m² Audio Frequency Range 20Hz-20KHz Audio Compression Format AAC Built-in Speaker 1W Monitor Video Resolution 1280x720 and 1920x1080 for PC-XD25 only Downloads PC-XDVR5 & PC-XDVR7 DVR Monitor Controller Specification Sheet PC-XD Camera System Brochure
