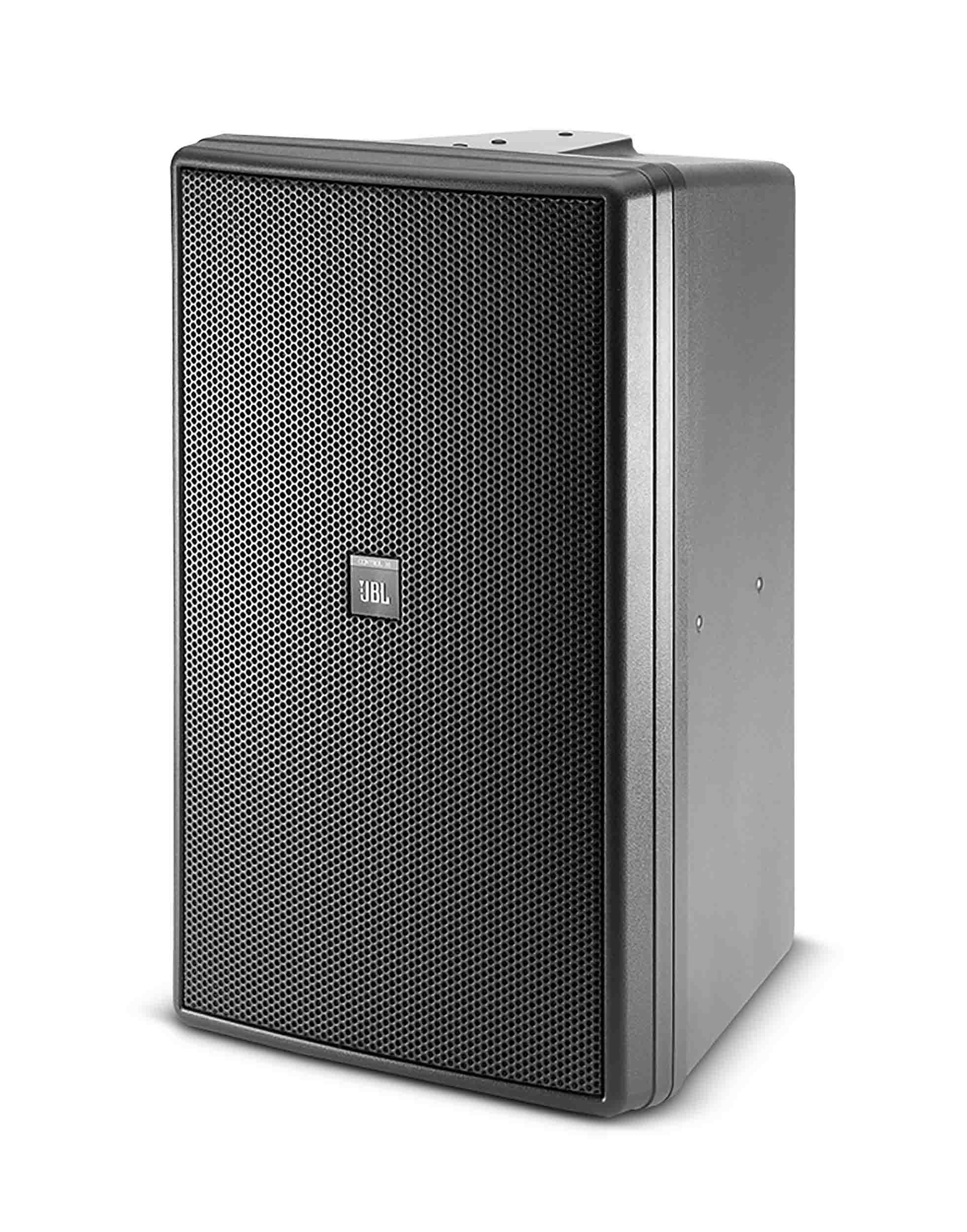

JBL CONTROL 30, Three Way High Output Indoor / Outdoor Monitor Speaker
The JBL Control 30 utilizes high power components, computer optimized horn and coaxial component design, patent-pending cabinet manufacturing techniques, and a complex network to achieve smooth high fidelity performance, extended bandwidth and well-controlled, defined coverage from a compact loudspeaker. Product Specifications: Frequency Range: 38 Hz – 17 kHz (-10 dB) Power Capacity: 500 W Continuous Program Power; 250 W Continuous Pink Noise Transformer Taps: 70 V: 150 W, 75 W, 38 W, 19 W 100 V: 150 W, 75 W, 38 W Thru Position: 4 ohms nominal Frequency Response: 40 Hz – 16 kHz ( ± 3 dB) Maximum SPL (1m): Short-Term: 123 dB; Long-Term: 117 dB Sensitivity: 93 dB, 1W @ 1m (3.3 ft) Coverage Angle: 120°H x110°V Directivity Factor (Q): 5.2 dB, averaged 500 Hz to 10 kHz Directivity Index (DI): 7.1 dB, averaged 500 Hz to 10 kHz Impedance: 4 ohms Grille: Thermoset composite coated steel, WeatherMax multi-layer foam Safety Agency: Transformer is listed per UL1876 Colors: Black or
