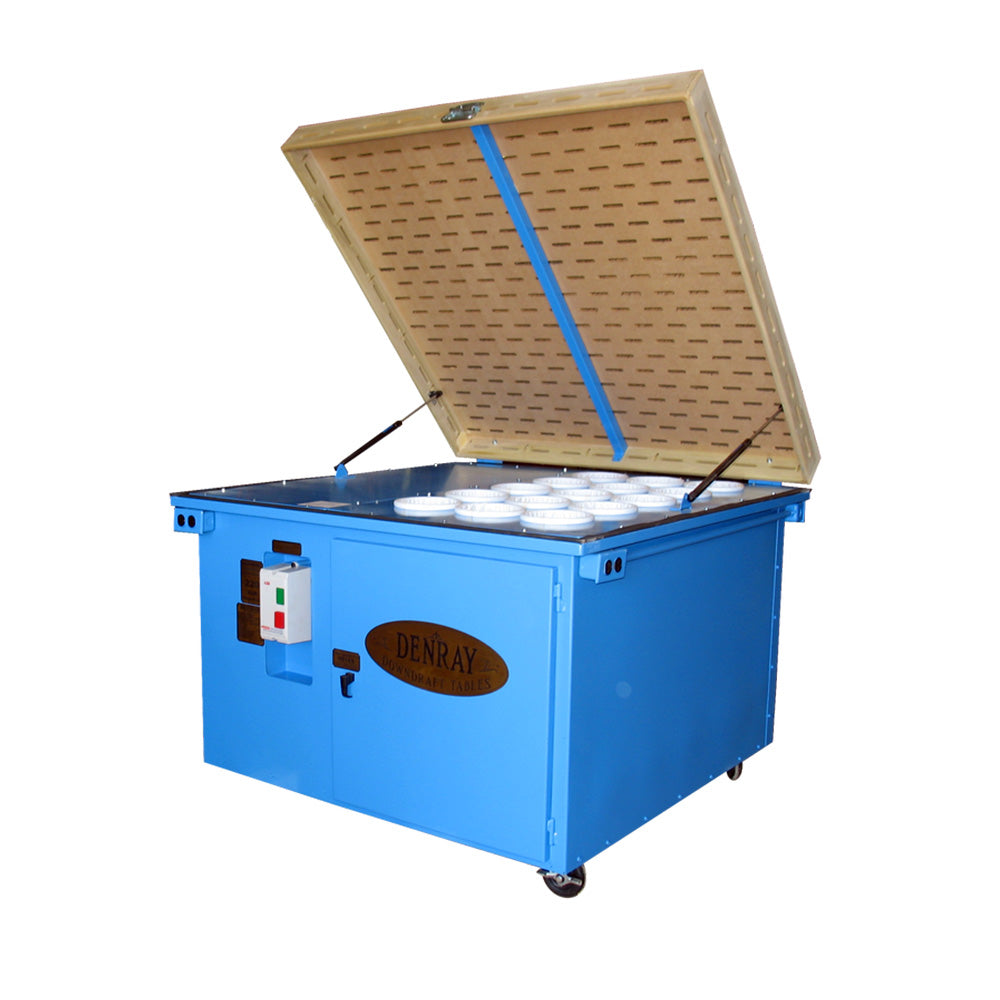

Denray Model 4800 Tube Filtration Downdraft Table
highlandautomate.com

Denray Model 4800 Tube Filtration Downdraft Table

$8,455.00
{{option.name}}: {{selected_options[option.position]}}
{{value_obj.value}}
Store Logo

Highland Automation

View Store

This model is great for medium sized jobs and is ideal for wood dust. The 4800 model comes with tube filtration which cleans with a 99% capture rate at 1 micron, making this model suitable for all wood dust applications. This model also comes standard with a filter brush/handle for manually cleaning the filters, casters and a rubber coated top. Product Information• 48" x 48"• 36" Height• 580 lbs• 2 HP Motor• 16.5" Fan• 3400 CFM• 77 Decibels Sound Level• 15 Tube Filters• Casters• 3 Receptacles Phase/Voltage Options SINGLE-PHASE​115 VOLTAGE (18.8 AMPS)220 VOLTAGE (9.4 AMPS)THREE-PHASE230 VOLTAGE (5.8 AMPS)460 VOLTAGE (2.9 AMPS)575 VOLTAGE (2.4 AMPS) Additional Options• Explosion Proof Motor (3 Phase only)• Light Bar• Muffler (reduces sound level 10-12 dbs.)• Three-sided Hinged Safety Shield• HDPE Plastic Tabletop• ​Larger Motor/Fan Upgrade
