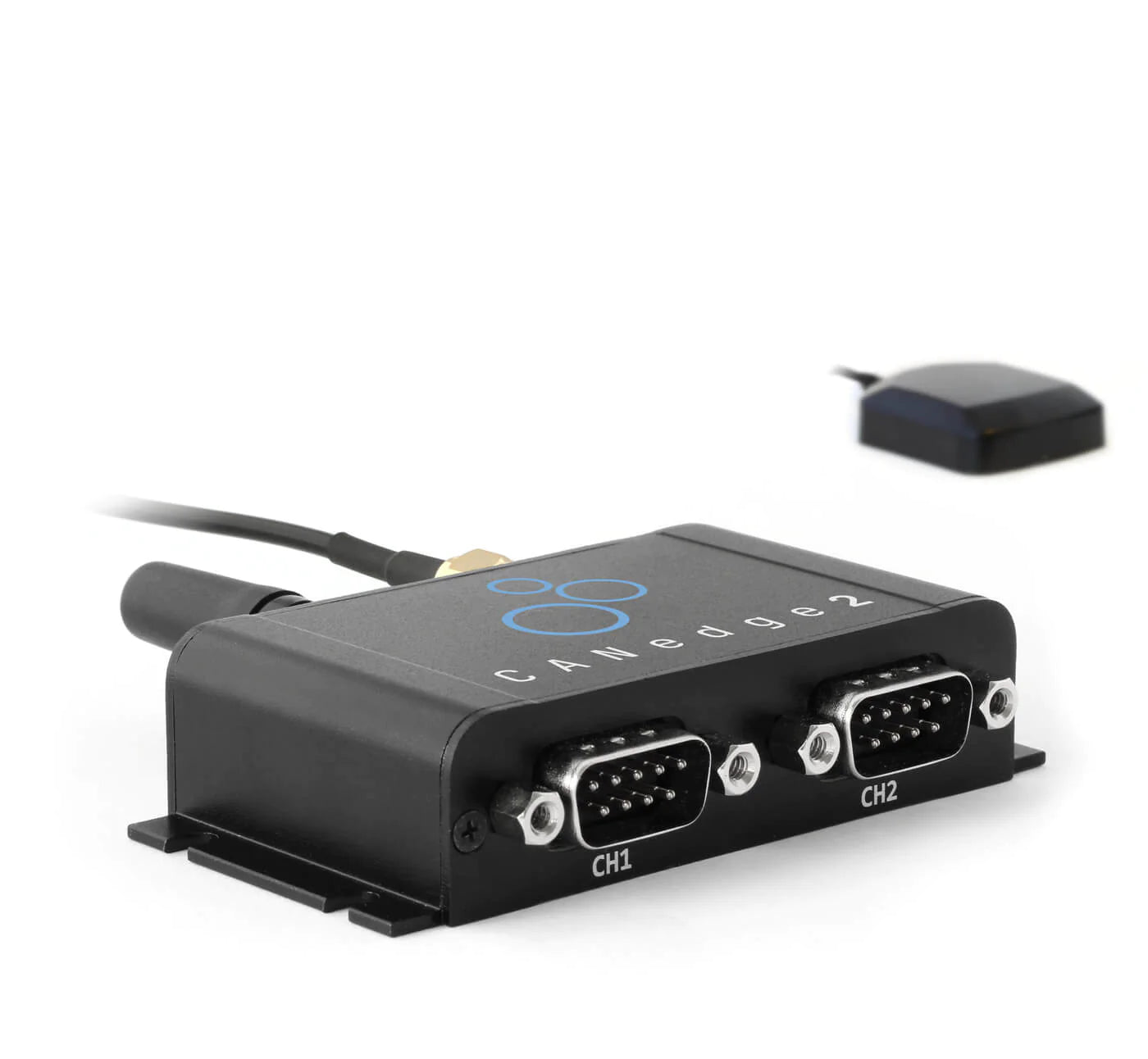

CANedge2 with GNSS/IMU
The CANedge2 with GNSS/IMU 2x CAN/LIN logger records timestamped CAN/CAN FD data to an extractable 8 GB or 32 GB industrial SD card. This compact device connects via WiFi access points to securely push data to your own server, and it supports over-the-air updates.With GNSS/IMU, additional data is provide, e.g., such as position, speed, altitude, and acceleration. Ideal for telematics, R&D field tests, diagnostics and predictive maintenance.Pro specs CAN logger The CANedge2 combines innovative design, cutting-edge components and is low cost: 2 x CAN (incl. CAN FD) + 2 x LIN channels Extractable 8-32 GB industrial SD card (= months of data) Popular binary MDF4 log file format Advanced message filtering & transmit functionality Start/stop logging triggers based on CAN ID & databytes Silent mode, bit rate auto-detection, cyclic logging Data compression & encryption (e.g. for GDPR, CCPA) Support for CAN/LIN error frame logging Fast boot time. Safely disconnect during use (power safe) Reinventing telematics Software/APIs are free & open source with no subscription fees or vendor lock-in. Upload data to your own local/dedicated/cloud server Simply add WiFi access point & server details to the config Log data to the SD and auto-upload when connected to WiFi Configure file split size/period to control upload frequency 100% secure: HTTPS, credential encryption and more Manage via over-the-air updates (firmware & configuration) Power e.g. sensor-to-CAN modules via the 2nd port Zero fees. Zero lock-in. Interoperable. Open source tools GPS & 3D IMU can enrich your data with cutting-edge GNSS/IMU functionality Add 40+ GNSS/IMU signals to your 2 x CAN/LIN data Full GNSS support (GPS, Galileo, BeiDou, GLONASS) Built-in gyroscope (roll, pitch, yaw) and accelerometer (X, Y, Z) High precision via sensor fusion - even in GNSS hostile areas Signals encoded as 'internal' CAN frames (separate channel) Configurable message inclusion/frequency (up to 5 Hz) DBC file included for easy decoding to human-readable form Optionally sync the CANedge RTC via precise GNSS time Flexible deployment via external GNSS antenna Open source software/API The CANedge2 uses open formats (MDF4 data, JSON config, S3 server). All software/APIs are 100% free and open source.The software toolbox includes: Editors: Easily modify your device config (online/offline) CANcloud: Manage connected CANedge2 devices & data S3 drive: Mount your S3 server as a 'local drive' Converters: Convert data to Vector ASC, PEAK TRC, CSV, ... asammdf GUI: DBC decode, plot and export your data Python API: Automate your data processing & integrations Dashboards: Visualize data in custom browser dashboards Order Summary SKU SD Card Manufacturer Part # (MPN) GC-CSS-CANEDGE2-8GB-GNSS/IMU 8 GB SD Card #178 CANedge2 8GB + GNSS/IMU GC-CSS-CANEDGE2-32GB-GNSS/IMU 32 GB SD Card #180 CANedge2 32GB + GNSS/IMU
