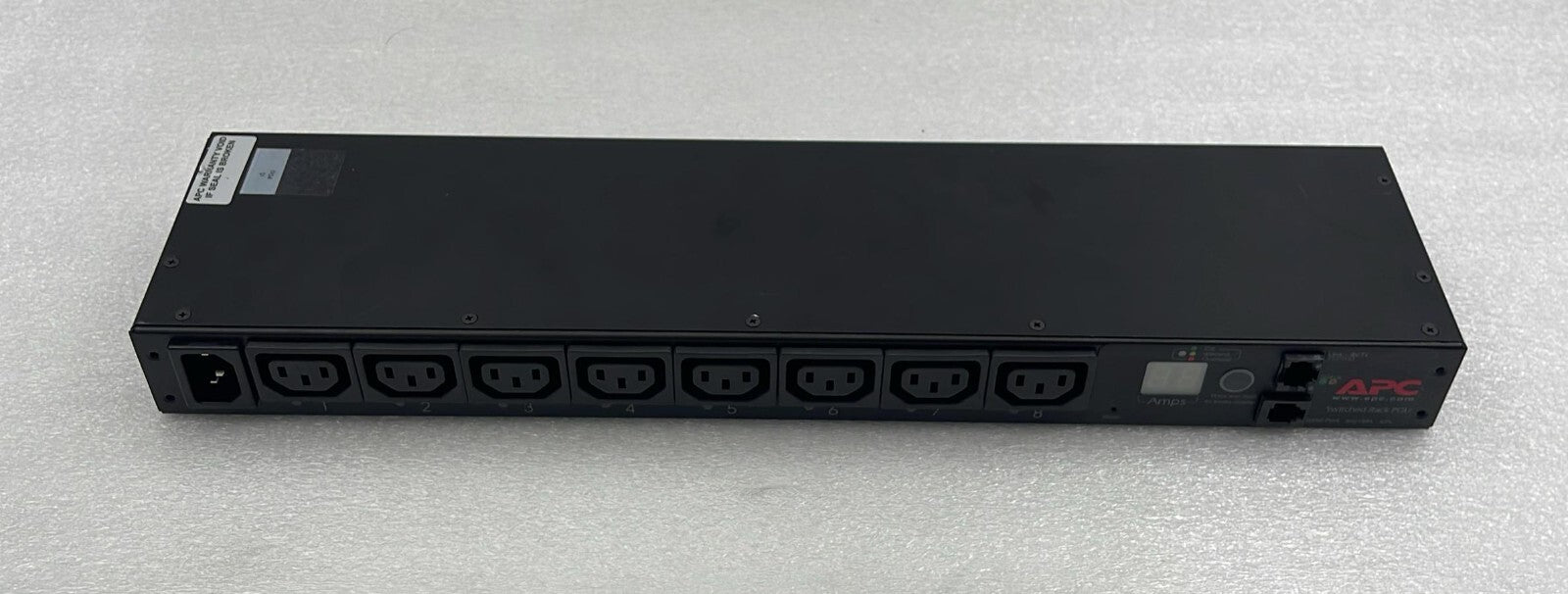

APC AP7920 Switched Rack PDU Power Distribution Unit Module

APC Switched Rack PDU – Model AP7920, 1U, 10A/230V (208V), 8× IEC C13 Outlets Key Specifications Model: AP7920 Form Factor: 1U horizontal rack-mount Input Voltage: 200 V / 208 V / 230 V AC Input Frequency: 50 / 60 Hz Input Connection: 1 × IEC 60320 C14 inlet Maximum Input Current per Phase: 15 A (derated 12 A North America) Load Capacity: 2300 VA Output Voltage: 208 V / 230 V AC Output Current: 10 A @ 230 V (12 A @ 208 V) Outlets: 8 × IEC 60320 C13 Cord Length: 6.5 ft (1.98 m) captive power cord Dimensions (HxWxD): 1.73 × 17.52 × 4.25 in (44 × 445 × 108 mm) Weight: 5.00 lb (2.27 kg) OverviewThe APC AP7920 Switched Rack PDU delivers remote-controllable power distribution in a slim 1U footprint, ideal for data centers and server racks. With eight IEC C13 outlets and a universal 200–230 V input range, it supports mixed-voltage environments while offering up to 2300 VA of load handling. A captive 6.5 ft cord and single IEC C14 inlet simplify deployment, and its
