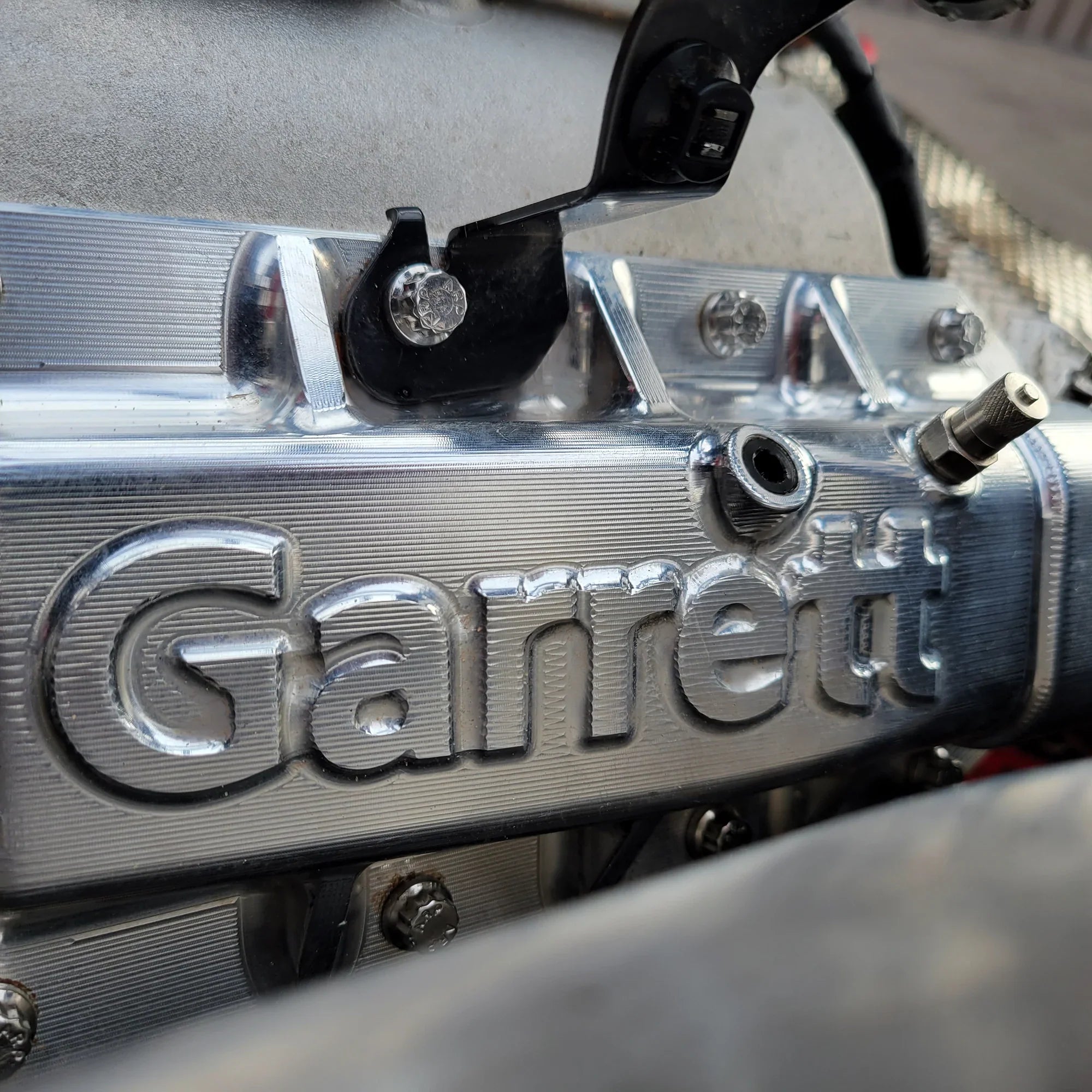

POLARIS RZR TURBO R, PRO XP & XP TURBO/S CAST INTERCOOLER

Vertical flow core design with tank on top, not inside the plenum for maximum core surface area.  Increases coolant capacity for better cooling and less chance of heat soak.  10% more efficient than stock Vertical R-fin core for rapid heat transfer, Tig welded to the cast lid.  Billet lid is CNC machined from 6061 aluminum and includes ARP stainless steel hold down fasteners.  Features -10 “AN” ORB ports, includes fittings to install with factory hoses or aftermarket -10 ANlines. Designed with accessible air bleed valve for easy coolant installation, 1/8 NPT port installed for coolant temp data logging.  OE style gaskets for proper sealing and air flow management throughout the plenum.  Drop in installation, no modifications required, all necessary hardware included.
