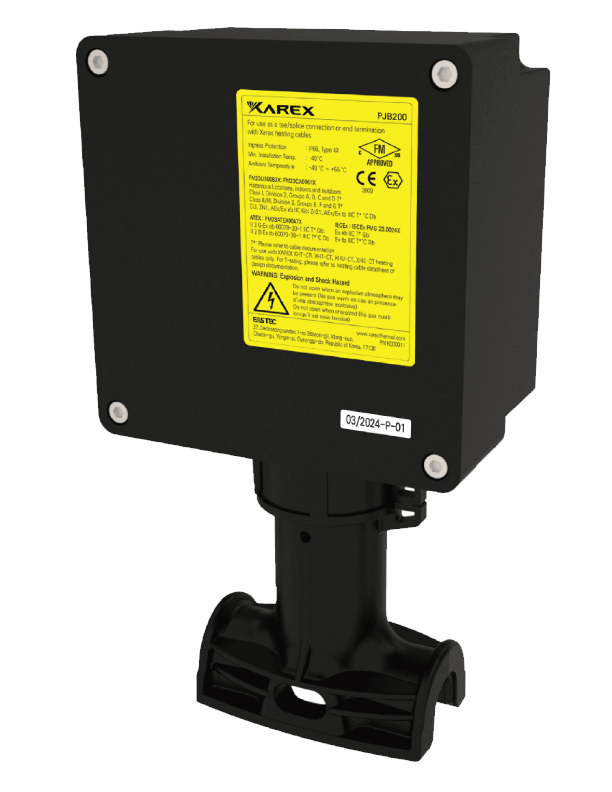

PJB200 - Splice or Tee Connection, End Termination

One PJB200 splice or tee connection, end termination The PJB200 is designed to provide power connections, tee or splice connections or end terminations for XHT, HTW industrial self-regulating heating cables. Specifications  Application Splice or tee connection, end termination Heating cable capability(No. of heating cable entry) XHT-CR, XHT-CT, HTW(up to three heating cables) Ambient temperature range -40°F ~ 131°F Minimum installation temperature  -40°F Maximum operating voltage 100 ~ 277 V Ingress protection NEMA type 4X, IP66 Through hole for conduit NPT ¾" Maximum conductor sizes  8AWG (Optional 6AWG)  Maximum circuit breaker size 50A Material Information Contents 1 junction box with terminal blocks1 lid and 4 screws1 pipe stand, compression cap, locknut and cable tie3 grommets for different cable sizes3 core sealer3 insulation tube1 RTV sealant2 grommet plugs2 O-rings1 wrench Enclosure Material Glass reinforced polymer junction box Glass reinforced polymer lid with stainless steel screwsGlass reinforced polymer box stand Installation accessories (sold separately) Certified box plug with locknutPipe StrapFiberglass tapeAluminum tape Tools Required Wire cutters, Utility knife, Marking penLarge slotted screw drive3/16"(or 5mm) hex keyAdjustable pliers, Needle nose pliers
