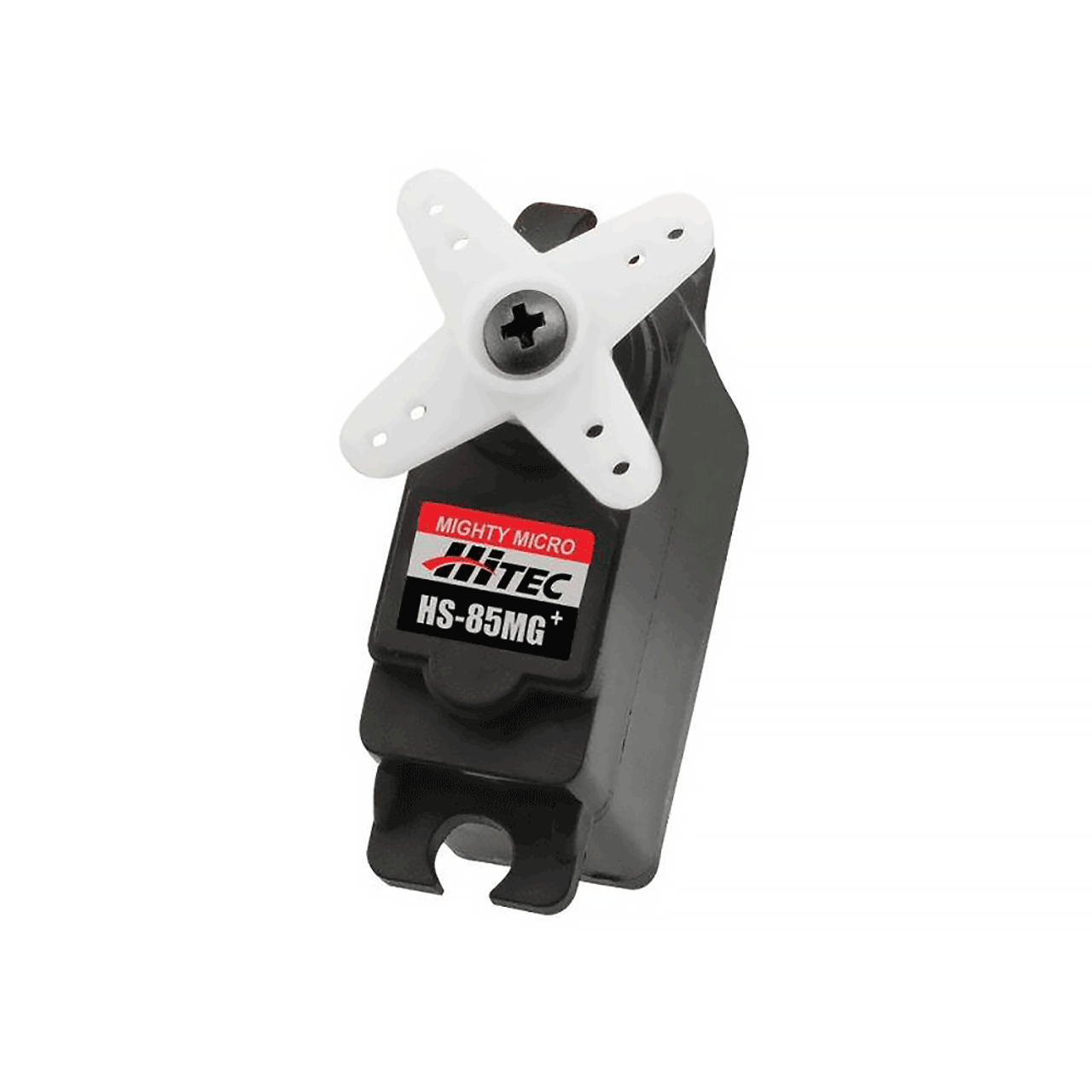

HiTec Mighty Micro Metal Gear Servo

The HS-85MG features a high power motor for greater speed and torque. The HS-85MG is the choice of modelers looking for a high performance servo without breaking the bank. The ball bearing supported output shaft and sturdy gear trains are preferred for smaller glow and electric airplanes, heli’s and sail planes. Features High Torque and Precision Centering Rugged Metal Gears Ball Bearing-Supported Output Shaft Perfect for Applications where a Standard Servo is too Heavy or Large but Standard Torque is Required  Performance Specifications Operating Voltage Range (Volts DC) 4.8V ~ 6.0V Speed (Second @ 60°) 0.16 ~ 0.14 Maximum Torque Range oz. / in. 42 ~ 49 Maximum Torque Range kg. / cm. 3.0 ~ 3.5 Current Draw at Idle 8 mA No Load Operating Current Draw 240 mA Stall Current Draw 1,200 mA Dead Band Width  Physical Specifications Dimensions (Inches) 1.14 x 0.51 x 1.18 Dimensions (Metric) 29.0 x 13.0 x 30.0 Weight (Ounces) 0.77 Weight (Gram) 21.9 Circuit Type HT7003 Analog SMT Motor Type 3 Pole Metal Brush Ferrite Gear Material Metal Bearing Type Top Ball Bearing Output Shaft (type / Ømm) Standard 24 Case Material Plastic Dust / Water Resistance N / A Connector Gauge (AWG) / Strand Count 28 / 20 8 µs
