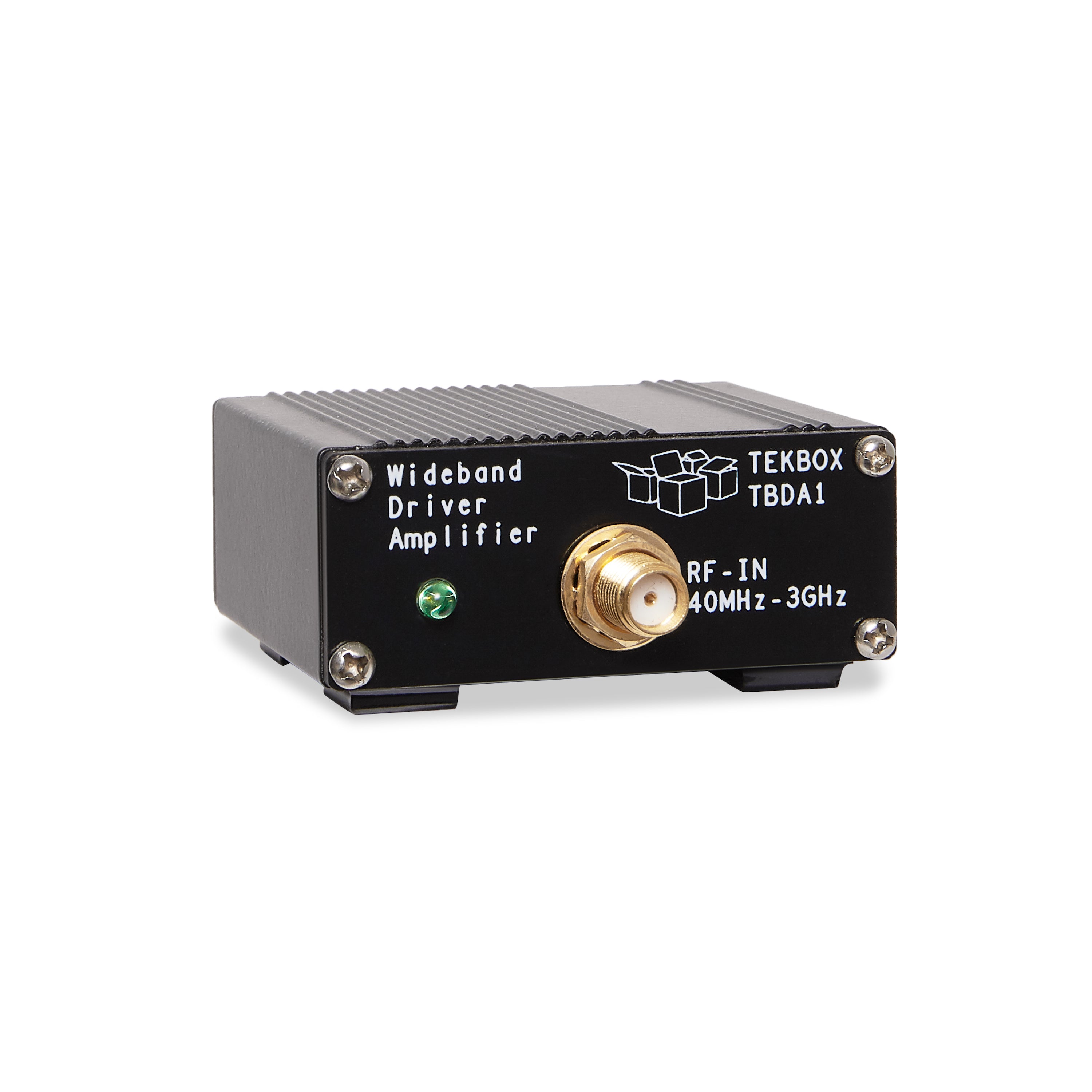

TBDA1/28dB - Wideband Driver Amplifiers

TBDA1 wideband driver amplifiers are versatile building blocks that can easily be integrated into laboratory setups. With a frequency range of 40MHz to 3GHz and an output power of + 22 dBm at 1dB compression, they are ideal to boost the amplitude of low power RF sources or to drive power amplifier stages. The TBDA1 wideband amplifiers are available with 14dB or 28dB gain. Specifications Input: 50 Ohm, SMA femaleOutput: 50 Ohm, SMA femaleNominal supply Voltage: 5V, typ. 225mA, Mini-USB-B connectorMaximum supply voltage: 5.5VMaximum input power: +6 dBm1dB output compression point @ 40MHz: +21.5dBm1dB output compression point @ 2 GHz: +22.5dBm3rd order output intercept point @ 40 MHz: +39.8dBm3rd order output intercept point @ 2 GHz: +42.8dBmReverse isolation S12: < -40dB Noise Figure: 3.1 … 4.1 dB Gain: 25 MHz 50 MHz 100 MHz 500 MHz 1 GHz 1.5 GHz 2 GHz 2.5 GHz 3 GHz 26 dB 28.4 dB 28.6 dB 28.6 dB 28.8 dB 28.3 dB 27.2dB 28.5 dB 28.9 dB Applica
