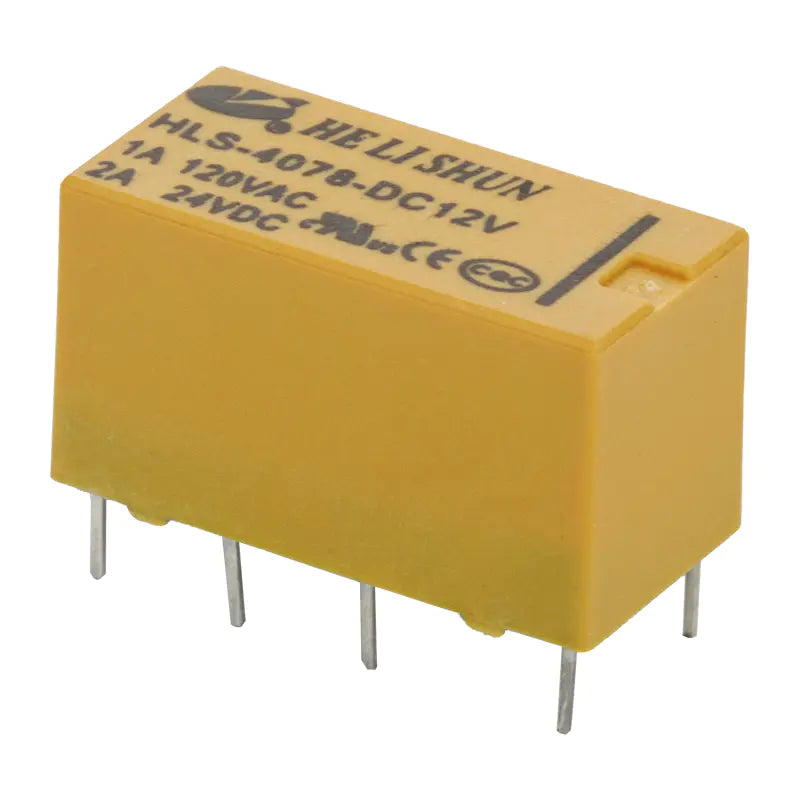

12V Relay DIP, Coil Arrangement: 2 Form C (DPDT), Capable of Switching Loads up to 2A, HLS-4078-DC12V
www.elexp.com
Hardware / Power & Electrical Supplies

12V Relay DIP, Coil Arrangement: 2 Form C (DPDT), Capable of Switching Loads up to 2A, HLS-4078-DC12V

$2.50
{{option.name}}: {{selected_options[option.position]}}
{{value_obj.value}}
Store Logo

Electronix Express

View Store

Features: Suitable for handling low signals in computer peripherals, telecommunications and security equipment Standard DIP Package Coil arrangement : 2 FORM C (DPDT) Capable of Switching Loads up to 2A Nominal Coil Voltage: 12V, Tolerance: ±20% Contact Data: Contact Form: 2C Contact Material: Ag+Au Contact Ratings: 1A 120VAC; 2A/24VDC Max Switching Voltage: 240VAC/60VDC Max Switching Current: 2A Max Switching Power: 120VA/30W Initial Contact Resistance: 50m Ω Max at 6VDC 1A Life Expectancy Electrical: 100,000 Operations(rated load) Life Expectancy Mechanical: 10,000,000 Operations(no load) General Data: Insulation Resistance: 100M Ω Min at500VDC Dielectric Strength Between Open Contacts: 500VAC 50-60HZ( 1 minute) Dielectric Strength Between Contacts And Coil: 1000VAC 50-60HZ( 1 minute) Operate Time: 6ms max Release Time: 4ms max Ambient Temperature: -30 ℃ to+70 ℃ Shock Resistance: Malfunction: 10G Destruction: 15G Vibration Resistance: 10-55Hz,1.5mm double amplitude Ambient humidity: 40-85% RH Weight: Approx 5g Safety Standard: UL CE CQC
