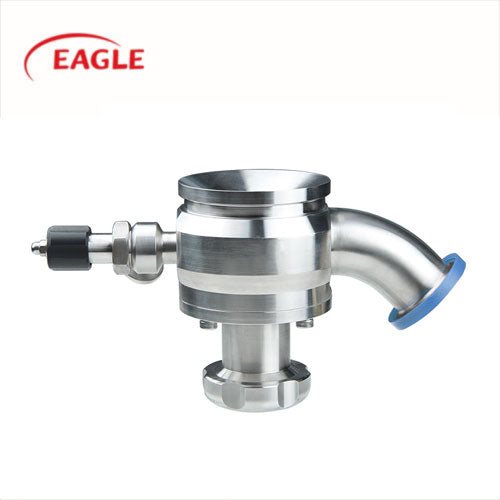

EAGLE™ 3A Tank Bottom Valve
$1,500.00
{{option.name}}:
{{selected_options[option.position]}}
{{value_obj.value}}
Sanitary Tank Bottom Valves for high-purity process piping applications 3A Tank Bottom Valve 316L for fluid contact, other stainless steel parts 304 Pressure: 0 -17bar EPDM/PTFE 3D models and drawings provided for approval process Designed specifically to meet the stringent requirements of the bioprocessing industry. Eagle Tank Bottom Valve offer solutions to the most challenging applications. Dimension Size A B C D H 3/4" 75 22 19 16 120 1" 75 22 25.4 22.1 120 1.25" 85 35 32 29 135 1.5" 85 35 38 35 135 2" 110 49 51 49 135
