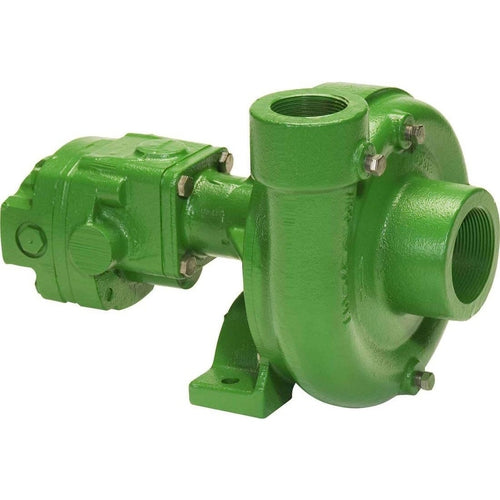

Ace 304 Hydraulic Driven Cast Iron Pump with 2" Suction x 1-1/2" Discharge Ace Pumps FMC-200-HYD-304
www.dunmiers.com
Hardware / Hardware Pumps

Ace 304 Hydraulic Driven Cast Iron Pump with 2" Suction x 1-1/2" Discharge Ace Pumps FMC-200-HYD-304

$1,029.59
{{option.name}}: {{selected_options[option.position]}}
{{value_obj.value}}
Store Logo

Dunmiers

View Store

200 Series High Flow Weight (lbs.): 38, Material: Cast Iron, Instruction Manual: Ace Pumps FMC-200-HYD-304 Instruction Manual, Technical Specifications: Ace Pumps FMC-200-HYD-304 Product Specifications, Engine: Ace 304, Ace Pumps EDP #: 49859, Power Type: Hydraulic, Hydraulic Flow Rate: 11, Gasket Material: Viton, Inlet: 2" NPT, Outlet: 1-1/2" NPT, Maximum Flow Rate (GPM): 200, Maximum Pressure (PSI): 120, Part Breakdown:   Reference Number Part Number EDP Number Description Required 1 BAC-53 41110 Pipe plug 4 1 41120 41120 Pipe plug, stainless steel (optional) 4 2 7AC-14-CCW 41526 Volute, 2” x 1-1/2” 1 3 BAC-23-A 40391 Nut, 3/8” NF, cad plated 1 3 BAC-23-B-SS 40393 Nut, 3/8” NF, SS (optional) 1 4 BAC-24-HYD-SS 40400 Washer, 3/8” star, stainless steel 1 4 BAC-24-B-SS 42702 Washer, 3/8” SS, vibration proof (optional) 1 5 BAC-26-200-P 40434 Impeller, with extended keyway, thermoplastic 1 5 BAC-26-200-CI 40433 Impeller,with exte
